BT100-1F+DG
Category:
Tags:
- Product Description
BT100-1F+DG
-
- Commodity name: BT100-1F+DG
Flow range: 0.08-48mL/min (per channel), optimal filling volume 0.1-10mL, with flow correction and dispensing volume correction functions
Product Introduction
◆ Flow range: 0.08-48mL/min
◆ Optimal filling volume 0.05-10mL
◆ Suitable for micro-volume multi-channel liquid filling
◆ Two working modes: flow mode and dispensing mode are optional
◆ With flow correction and dispensing volume correction functions
◆ Dispensing accuracy can reach ±0.4%
Typical Applications
◆ Laboratory, Filling
◆ Reagent dispensing, medium dispensing
◆ Filling line matching

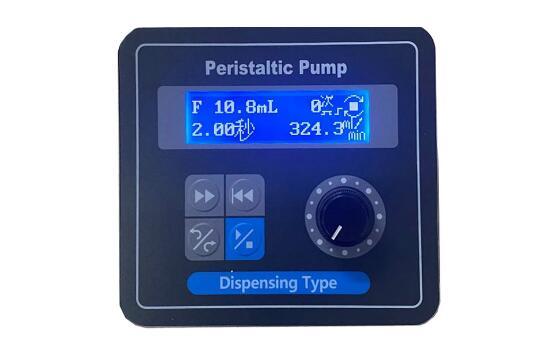

Control Panel

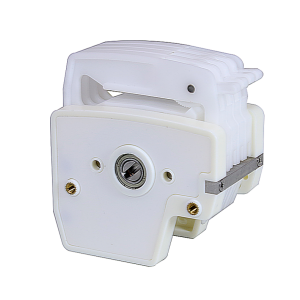

Applicable Pump Head

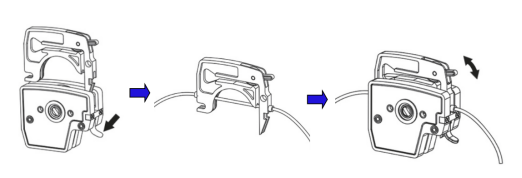

Installation Hose

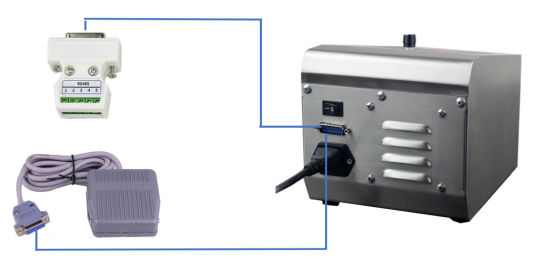

External Model Control
Technical Parameters
Product Model BT100-1F+DG Speed Adjustment Range 0.1-100RPM Speed Resolution 0.1RPM Dispensing Function Precise quantitative dispensing of liquid Dispensing Volume Range 0.1mL-999L Number of Dispensing 1-9999 times (“0” for infinite loop) Dispensing Time Interval 0.1S-24Hr Display Function 128×32 graphic dot matrix LCD display, flow and speed are displayed on the same screen Direction Control Reversible operation function Operation Method Rotary encoder switch combined with membrane key operation, more convenient for users Full Speed Function Quick filling and emptying of the pipeline can be achieved through the full speed button Power-off Memory Function After power-on, continue running according to the state before power-off Back Suction Function Running in dispensing mode, the pump reverses a certain angle after shutdown, effectively preventing liquid dripping Flow Calibration Function Automatic flow calibration function, flow accuracy can reach ±0.5% Dispensing Volume Calibration Function Input the actual dispensing volume value, automatically perform dispensing volume calibration, dispensing accuracy can reach ±0.5% External Control Function Optional different models of external control modules, can perform start/stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional Communication Function Optional communication module, RS485 communication control can be performed (using the general Modbus protocol) Foot Switch Function Optional foot switch to control start and stop Dispensing Bracket Optional filling bracket for installing filling nozzle Dispensing Nozzle Optional filling nozzles of various specifications, nozzle inner diameter 2.2mm, 2.5mm, 3mm, 4mm, 6mm Power Consumption 35W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Working Environment 0-40℃, humidity <80% non-condensing Driver Weight 4.5KG Protection Level IP31 Selection Guide
Filling Volume
Filling Time (Sec)
Filling Accuracy
Recommended Driver
Recommended Pump Head
Recommended Hose
1mL
≥0.80
±1.0%
BT100-1F
YZ15
14#
2 mL
≥0.64
±1.0%
16#
3 mL
≥0.97
±1.0%
16#
5 mL
≥0.82
±1.0%
25#
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Hose
Speed Range (RPM)
Flow Range (mL/min)
BT100-1F
DG-1（2,4,6,8,12）A
6 1,2,4,6,8,12
0.6×1
0.1-100
0.003-3.27
1×1
0.007-6.45
2×1
0.02-20.60
3×1
0.04-37.5
DG-1（2,4,6,8,12）B
10 0.6×1
0.0026-2.64
1×1
0.006-5.96 2×1
0.017-16.19
3×1
0.028-27.65

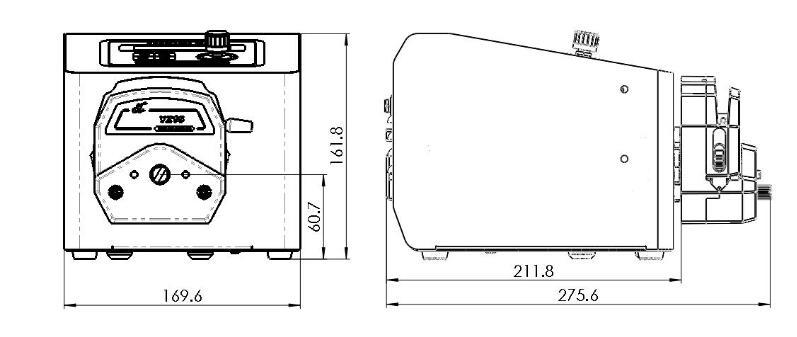

Dimensions
Operation video
