LSP01-3A and LSP01-3B electrostatic spinning injection pumps
Category:
Tags:
- Product Description

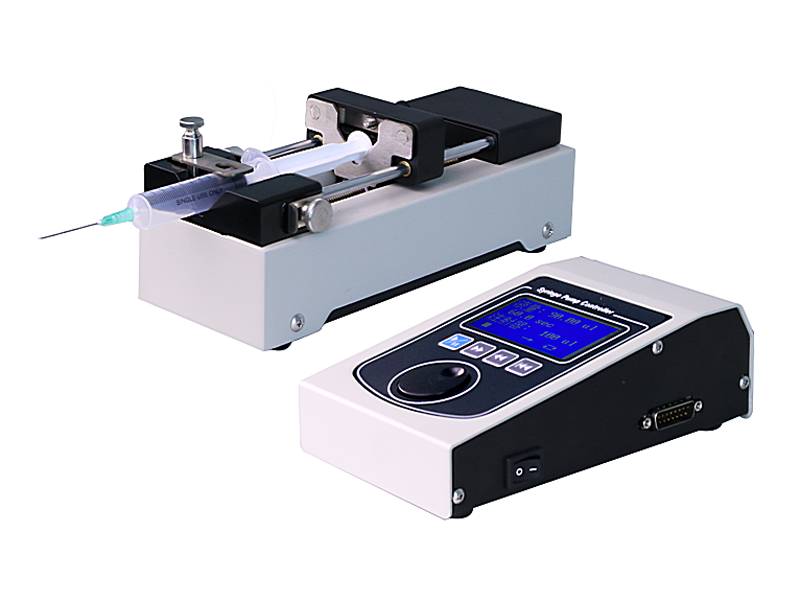

LSP01-3A and LSP01-3B electrostatic spinning injection pumps
-
- Commodity name: LSP01-3A and LSP01-3B electrostatic spinning injection pumps
Single-channel perfusion injection pump for electrospinning industry, integrated structure; with excellent electromagnetic compatibility and anti-interference performance.
Product Introduction
◆ The LSP01-3A is a single-channel perfusion-type syringe pump designed for the electrospinning industry, featuring an integrated structure.
◆ It boasts excellent electromagnetic compatibility, with ESD ≥ Class IV (IEC 61000-4-2) and anti-interference capabilities.
◆ Capable of accommodating syringes (injectors) of various specifications, the LSP01-3A micro-syringe pump is suitable for high-precision, low-flow liquid transfer.
◆ Flow rate range: 0.001ul/min-43.349ml/min.
◆ LSP01-3A syringe inner diameter input function: You can select the syringe from the list or directly input the syringe inner diameter.
◆ This micro-syringe pump features a user-friendly interface: a large-screen LCD display, a digital rotary knob, and membrane buttons work together for easy and quick operation.
◆ Working mode: Single-push working mode.
◆ Power-off memory function: Saves the set parameters, so there is no need to reset them after power-on.
◆ Clogging protection function: When the injection pump's propulsion mechanism is clogged during operation, the pump will stop the propulsion mechanism and sound a buzzer alarm.
◆ Using a 485 communication bus, it can be connected to a host computer for control via backend software.
◆ External control interface: Has input/output control functions.
◆ Liquid volume calibration function: A more accurate flow rate can be obtained through the calibration program.
◆ Syringe protection function: By adjusting the position of the limit block, syringe damage can be prevented.
Typical Applications
◆ Biological laboratories
◆ Electrophysiology, chemistry, pharmaceuticals, etc.
◆ Electrospinning

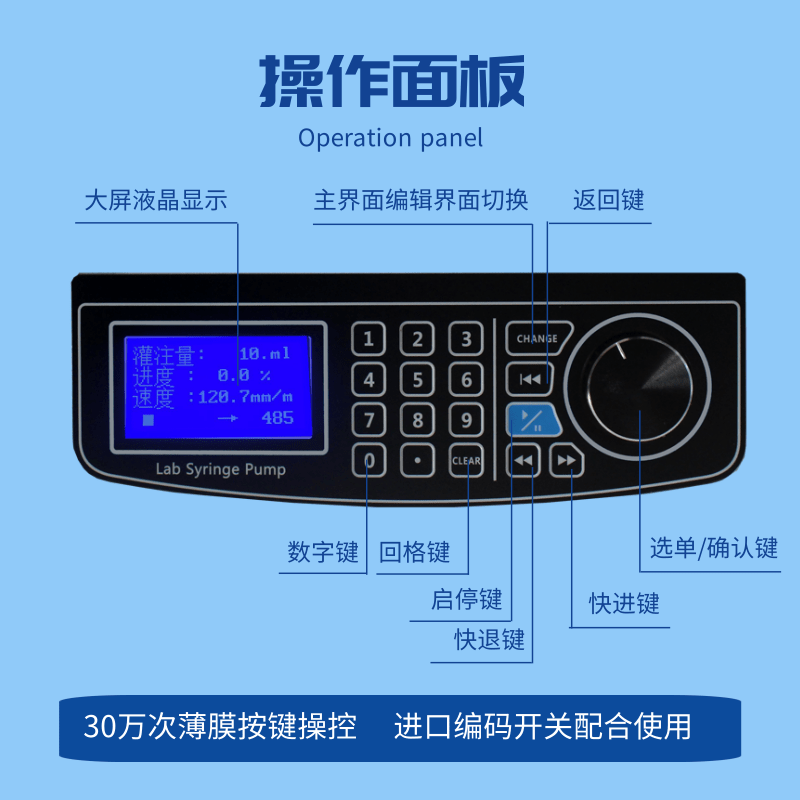

Operation Panel
Technical Parameters

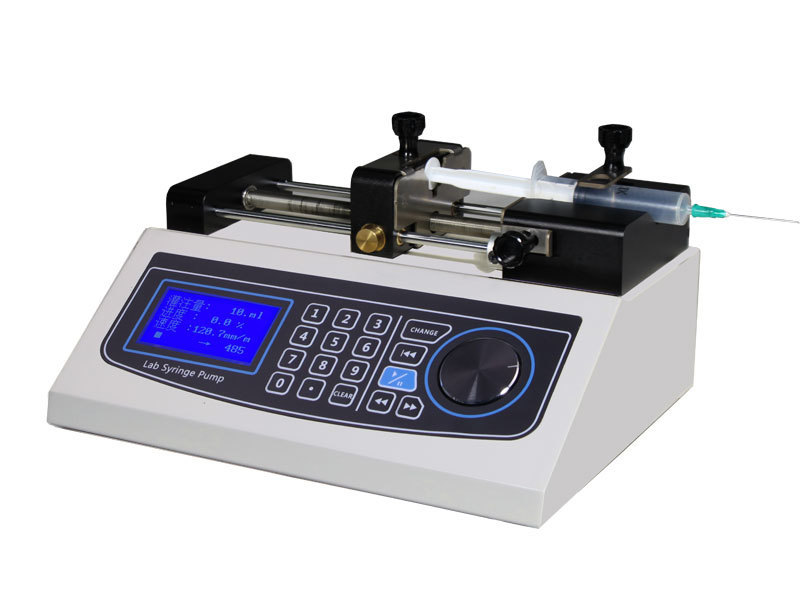

Product Model LSP01-3A LSP01-3B Product Image
Working Mode Perfusion Perfusion, Aspiration, Aspiration then Perfusion, Perfusion then Aspiration, Continuous Number of Syringes That Can Be Installed 1 Flow Rate Range 0.001ul/min-43.349ml/min Syringe Specifications 10uL-60mL Stroke Distance 140mm Stroke Resolution 0.156μm Linear Velocity Range 5μm/min-65mm/min (Flow rate = Linear velocity × Syringe inner cross-sectional area) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of stroke distance) Rated Linear Thrust ＞90N Syringe Selection Built-in syringes from major manufacturers and models are available for selection. Syringe Customization You can directly input the inner diameter of the syringe. Flow Rate Calibration A more accurate liquid volume is obtained through the calibration program. Run Parameter Settings Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate, or linear velocity Power-off Memory After power-on, you can choose whether to continue working according to the state before power-off. Status Signal Output 2-channel OC gate signal output for indicating start/stop and direction status. Control Signal Input 2 start/stop control input terminals; 1 falling edge trigger signal controls start/stop; 1 TTL level signal controls start/stop. Communication Interface RS485 Dimensions 280×210×140(mm) Weight 4.5kg Power Supply AC 200V-260V/35W Relative Humidity of Working Environment ＜80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe (or Injector) Specifications
Applicable Syringe Inner Diameter (mm)
Reference Flow Rate Range (μl/min-ml/min)
LSP01-3A
LSP01-3B
10μl
0.50
0.001-0.0128
25μl
0.80
0.0025-0.0327
50μl
1.10
0.0048-0.0618
100μl
1.60
0.0101-0.1307
250μl
2.30
0.0208-0.2701
500μl
3.25
0.0415-0.5392
1ml
4.72
0.0875-1.1373
2ml
9.00
0.3181-4.1351
5ml
13.10
0.6739-8.7608
10ml
16.60
1.0821-14.068
20ml
19.00
1.4176-18.429
30ml
23.00
2.0774-27.006
60ml
29.14
3.3346-43.349

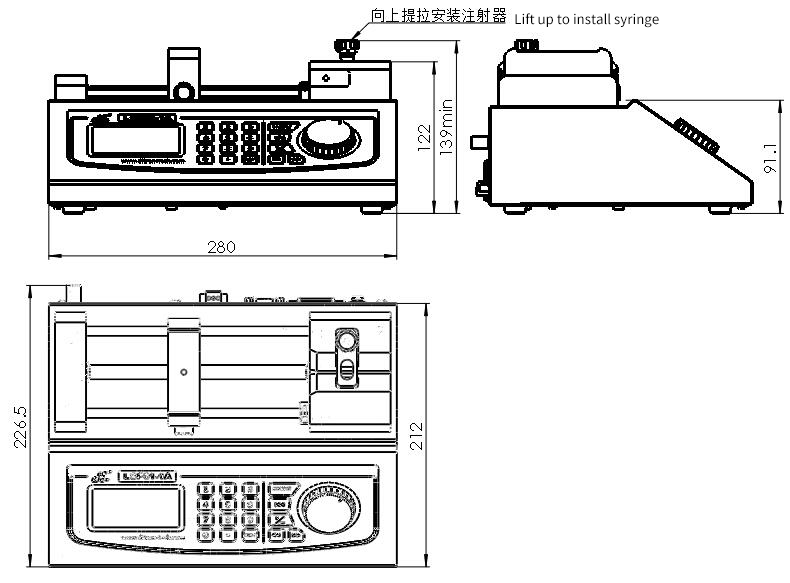

Dimensions
