GR1-3Z Plus

Product Description

Commodity name: GR1-3Z Plus

Flow range: 0–12 L/min (per channel); Filling volume range: 0.1–200 L (per channel)

Product Introduction

◆ GR1-3Z Plus is a single-head filling machine, while GR2-3Z Plus is a dual-head filling machine.

◆ Flow range: 0–12 L/min (per channel)

◆ Filling volume range: 0.1–200 L per channel

◆ Precise timed and quantitative filling, ensuring high-accuracy liquid dispensing with a filling accuracy of up to ±2%.

◆ Adopts peristaltic pump filling, driven by a DC brushless motor with high torque and maintenance-free operation. The liquid flows solely through the tubing, ensuring no contact with the pump body, thereby minimizing the risk of secondary liquid contamination to the greatest extent.

◆ Can be used to fill beverages, alcoholic drinks, petroleum products, daily chemical products, edible oils, soy milk, pharmaceutical solutions, pesticides, and other liquids—including those with certain viscosity or containing impurities.

◆ The rotary encoder switch adjusts the rotational speed with high precision.

◆ Three working modes are available: manual filling, automatic filling, and preset filling.

◆ Filling operation time setting, interval time setting, filling cycle counting and presetting

◆ Footswitch Control

◆ 304 Stainless Steel Filling Nozzle

◆ 304 stainless steel housing

Technical Specifications

Product Model	GR1-3Z Plus	GR2-3Z Plus
Number of Filling Nozzles	1	2
Filling Volume Setting Range	0.1-200L
Traffic Range	0-12L/min
Filling Mode	Three working modes are available: manual filling, automatic filling, and preset filling.
Display Function	4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count.
Filling Time Setting	Set range: 0.01 seconds to 999.9 seconds
Interval Time Setting	Set range: 0.01 seconds to 999.9 seconds
Number of fillings	Displayed 59,999 times
Filling Cycle Setting	Two modes are available: cumulative count and preset count.
Method of Operation	Membrane button control offers convenience, speed, and reliability; the rotary encoder switch allows for precise flow rate adjustment.
Power-loss memory function	After power is restored, the parameters will remain unchanged from their pre-power-off state. Simply press the start button (or activate the foot switch) to resume operation using the previously set parameters.
Footswitch Control	Foot switch controls start and stop.
Filling Bracket	Standard filling bracket equipped, adjustable in height and length direction.
Filling nozzle	304 Stainless Steel Nozzle, Standard Configuration with 8mm Inner Diameter Nozzle
Power Consumption	<400W
Applicable Power Supply	AC 200–260 V, 50 Hz
Work environment	0–40°C, with humidity below 80% to prevent condensation.
Dimensions	400mm × 330mm × 240mm (excluding the filling bracket)
Weight	18KG
Protection Level	IP31

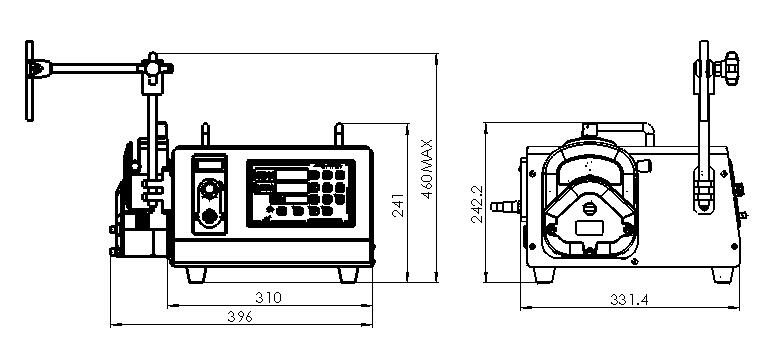

Dimensions
