GR1-1B
-
- Commodity name: GR1-1B
Flow range: 0–1856 ml/min; filling volume range: 0.1–30,000 mL; optimal filling volume: 2–800 mL
Product Introduction
◆ GR1-1B is a single-head filling machine, while GR2-1B is a dual-head filling machine.
◆ Flow range: 0–1856 ml/min
◆ Filling volume range: 0.1–30,000 mL
◆ Optimal filling volume: 2–800 mL (Increasing the filling volume requires extending the filling time).
◆ Adopting DITRON-LED-DISPENSER-1 intelligent control technology, this system features smart management, timed and quantitative dispensing, and highly precise liquid filling—achieving a filling accuracy of up to ±1%.
◆ Adopting peristaltic pump filling with stepper motor drive, this system features low vibration and high precision. The liquid flows solely through tubing, ensuring no contact with the pump body, thereby minimizing the risk of secondary liquid contamination to the greatest extent.
◆ Liquid products suitable for filling include beverages, alcoholic drinks, daily chemical products, edible oils, soy milk, adhesives, nail polish, pharmaceutical solutions, pesticides, and other liquids—particularly those with certain viscosity or containing impurities.
◆ Medium aliquoting and the dispensing of other chemical reagents can be performed.
◆ Imported potentiometers regulate the flow rate.
◆ Three working modes are available: manual filling, automatic filling, and preset filling.
◆ Filling operation time setting, interval time setting, cumulative filling count, and preset values
◆ Foot Pedal Switch Control
◆ Wide-range power supply, AC 90-260V, 50Hz/60Hz
Technical Specifications
Product Model GR1-1B GR2-1B Number of Filling Nozzles 1 2 Filling Liquid Volume Setting Range 0.1-30000mL Optimal Filling Liquid Volume 2-800mL Traffic Range 0–1856 mL/min (select S600-YZ15 peristaltic pump, with a maximum flow rate of 2400 mL/min) Traffic Regulation Imported potentiometers regulate the flow rate. Filling Mode Three working modes are available: manual filling, automatic filling, and preset filling. Display Function 4-digit LED display for filling operation time, 4-digit LED display for filling interval time, and 5-digit LED display for filling count. Filling Time Setting Set range: 0.01 seconds to 999.9 seconds Interval Time Setting Set range: 0.01 seconds to 999.9 seconds Number of Fillings Displayed 59,999 times Filling Cycle Setting Two modes are available: cumulative count and preset count. Method of Operation Film-button control provides convenience, speed, and reliability; imported potentiometer knobs allow for precise flow adjustment. Power-off Memory Function After power is restored, the parameters will remain unchanged from their state before power loss. Pressing the start button (or activating the foot switch) will resume operation using the previously set parameters. Foot Pedal Switch Control Standard foot switch controls start and stop. Filling Bracket Standard filling bracket equipped, adjustable in height and length directions. Filling Nozzle 304 stainless steel nozzle, standard with a 6mm inner diameter nozzle; 3mm and 4mm options available. Power Consumption <60W Applicable Power Supply Wide-range voltage AC 90-260V, 50Hz/60Hz Work Environment 0–40°C, with humidity below 80% to prevent condensation. Dimensions 355mm × 250mm × 165mm (excluding the filling bracket) Weight 4.2KG 5.6KG Protection Level IP31 Selection Guide
Target Filling Volume (ml)
Filling Time (seconds)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
50ml
1.85
50.27
50.25
49.44
49.56
49.86
100ml
3.78
99.99
99.94
100.11
100.17
100.01
200ml
7.50
200.33
200.25
200.19
199.91
199.78
500ml
19.28
500.73
500.71
500.55
500.64
500.56
◆ Note: Measurements were taken when the speed control knob was turned to its maximum setting. Each filling volume was measured five times.
The experimental medium is water. This value is measured and may vary between product batches. Changes in the medium can also affect the filling data.
There are also various types of filling data; this table lists only four of them.
Target Filling Volume (ml)
Filling Time (seconds)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
Actual Filling Volume (ml)
30ml
2.5
30.33
30.25
29.86
30.5
30.45
60ml
5.0
60.28
60.35
60.56
60.17
60.66
100ml
8.3
100.38
100.25
100.56
99.91
99.70
200ml
16.6
200.73
200.51
200.38
200.54
200.28
◆ Note: Measurements were taken when the speed control knob was turned to its maximum setting. Each filling volume was measured five times.
The experimental medium is Green Umbrella laundry detergent. These values are measured results, and there may be variations between different product batches. Additionally, changes in the medium can also affect the filling data.
Additionally, there are various filling data points; this table lists only four of them. As the medium's viscosity increases, the flow rate decreases, and the filling time extends.

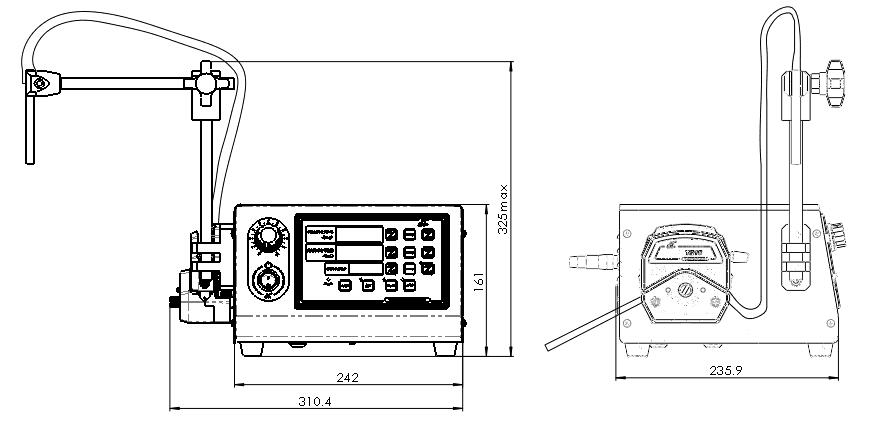

Dimensions
