Turn the lever counterclockwise by 180°, lift the pressure block
BT600-1F+YT15
Flow range: 0.07-3000mL/min. The YT15 pump head allows fine-tuning of the flow rate in each channel to achieve consistent flow between channels, and can be used in series.
Category:
Tags:
- Product Description
BT600-1F+YT15
-
- Commodity name: BT600-1F+YT15
Flow range: 0.07-3000mL/min. The YT15 pump head allows fine-tuning of the flow rate in each channel to achieve consistent flow between channels, and can be used in series.
Product Introduction
◆ Flow Range: 0.07-3000mL/min
◆ Suitable Filling Volume: 1-100mL
◆ The YT15 pump head can fine-tune the flow rate of each channel, ensuring consistent flow rate between channels and synchronization
◆ The pump head comes in 1 and 2 channels and can also be used in series for multi-channel synchronous liquid transfer
◆ Two operating modes: flow mode and dispensing mode are selectable
◆ Features flow correction and dispensing volume correction functions
◆ Dispensing accuracy can reach up to ±0.5%
Typical Applications
◆ Laboratory, Filling
◆ Reagent dispensing, Culture medium dispensing
◆ Filling line supporting equipment

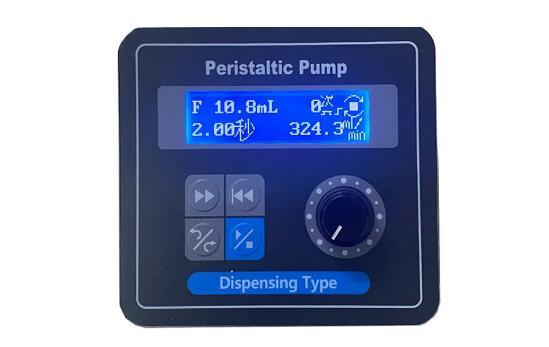

Control Panel

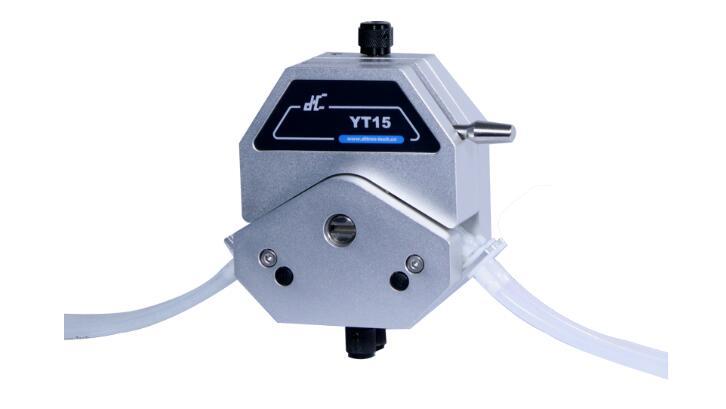

Peristaltic Pump Head
Tubing Installation
Install the tubing with connectors at both ends into the pump head. The tubing should be in the middle of the rollers.
Turn the lever clockwise by 180°, press the pressure block down into place, and complete the tubing installation

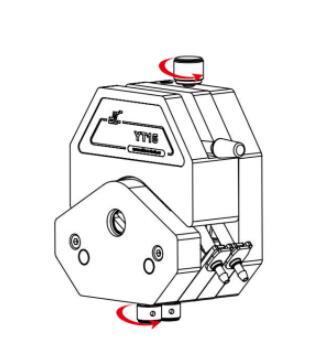

Rotary Adjustment
◆ Top Knob:
Adjusts the up and down movement of the pressure block. Turning the knob clockwise increases the tube gap, extending tubing life. Turning it counterclockwise reduces the tube gap, increasing outlet pressure suitable for viscous liquids.
◆ Bottom Knob:
Adjusts the tubing length for fine-tuning the flow rate and ensuring consistent flow between channels. Turning the knob clockwise tightens the tubing, reducing the flow rate; counterclockwise adjustment loosens the tubing, increasing the flow rate.External Signal Control
◆ Optional RS485 communication module for external signal control
◆ Optional foot switch for start/stop control; or an optional start/stop control module for production line integration
Technical Parameters
Product Model BT600-1F Speed Adjustment Range 1-600RPM Speed Resolution 1RPM Dispensing Function Precise quantitative dispensing of liquids Dispensing Volume Range 0.1mL-999L Number of Dispensings 1-9999 times ("0" for infinite loop) Dispensing Time Interval 0.1S-24Hr Display Function 128×32 graphic dot matrix LCD display, flow rate and speed displayed simultaneously Direction Control Reversible operation function Operation Method Rotary encoder switch combined with membrane key operation for easier user operation Full Speed Function The full-speed button allows for quick filling and emptying of the tubing Power-off Memory Function Continues operation after power-on, according to the pre-power-off state Back Suction Function Runs in dispensing mode; after pump stops, it reverses a certain angle to prevent liquid dripping Flow Calibration Function Automatic flow calibration function, flow accuracy up to ±0.5% Dispensing Volume Calibration Function Input the actual dispensing volume value for automatic dispensing volume calibration. Dispensing accuracy can reach ±0.5% External Control Function Optional external control modules for start/stop control, direction control, and flow control. 4 optional external control modules: 0-5V, 0-10V, 4-20mA, 0-10KHz Communication Function Optional communication module for RS485 communication control (using the general Modbus protocol) Foot Switch Function Optional foot switch for start/stop control Dispensing Bracket Optional filling bracket for installing filling nozzles Power Consumption 70W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Operating Environment 0-40℃, humidity <80%, no condensation Driver Weight 4.8KG Protection Level IP31 Selection Guide
Compatible Pump Head Model
Applicable Tubing Specifications
Reference Flow Rate (mL/min)
YT15-13
13#,14#,19#,16#,25#,17#,18#
2400
YT15-16
13#,14#,19#,16#,25#,17#,18#
960
YT15-23
13#,14#,19#,16#
550
YT15-26
13#,14#,19#,16#
260
YT25
15#,24#,35#,36#
3000
Driver Model
Pump Head Model
Number of rollers
Number of channels
Applicable tubing
Filling volume per second (ml)
Silicone tubing
Pharmed tubing
BT600-1F
YT15-13
3
1,2
13#
13#
0.1-0.6
14#
14#
0.2-2.4
19#
19#
0.5-5
16#
16#
1.0-9.5
25#
25#
2.0-19
17#
17#
3.0-30
YT15-16
6
1,2
13#
13#
0.08-0.5
14#
14#
0.15-1.5
19#
19#
0.3-3.3
16#
16#
0.5-5.5
25#
25#
0.8-10.5
17#
17#
1.2-16
YT15-23
3
2,4
13#
—
0.1-0.6
14#
—
0.2-2.4
19#
—
0.5-5
16#
—
1.0-9.5
YT15-26
6
2,4
13#
—
0.08-0.5
14#
—
0.15-1.5
19#
—
0.3-3.3
16#
—
0.5-5.5
YT25
3
1,2
15#
—
1.0-18
24#
—
1.5-24
1
35#
—
2-33
36#
—
2.5-48
Dimensions
