BT100-3W, BT300-3W
Category:
Tags:
- Product Description
BT100-3W, BT300-3W
-
- Commodity name: BT100-3W, BT300-3W
Flow range: BT100-3W (0.0048–138 mL/min); BT300-3W (0.0048–440 mL/min)
Product Introduction
◆ Flow range: 0.0025–45 mL/min (BT100-3W); 0.0025–134 mL/min (BT300-3W)
◆ Rotational speed range: 0.1–100 rpm (BT100-3W); 0.1–300 rpm (BT300-3W)
◆ Button operation, RPM display, one-touch cleaning function
◆ Stepper motor drive, 128x microstepping, high precision, low vibration, ultra-quiet operation
◆ KZ10 and KZ15 pump heads available as options
◆ Single-channel and dual-channel options available
◆ 4-roller and 8-roller options available—4-roller pump heads deliver slightly higher flow, while 8-roller pump heads provide even lower pulsation.
◆ The pump heads can be connected in series to create 2-channel or 4-channel configurations.
Control Panel

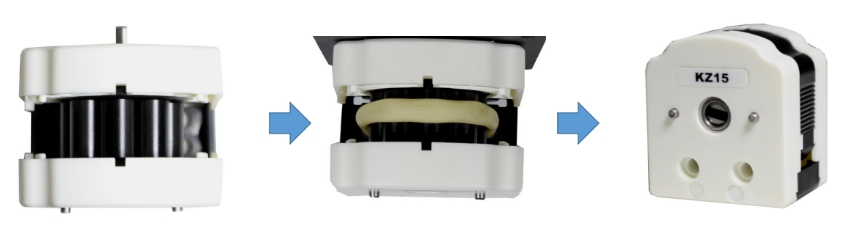

Hose Installation
◆ Press inward on both sides of the press block to remove it → Insert the hose assembly → Reinstall the press block
Technical specifications
Product Model BT100-3W BT300-3W Rotational Speed Adjustment Range 0.1-100RPM 0.1-300RPM Rotational Speed Resolution 0.1 (<100 RPM) 0.1 (<100 RPM), 1 (100–300 RPM) Display function 3-digit digital display shows RPM Direction Control Reversible Operation Direction Feature How to operate Film-button control—convenient, fast, and reliable. Full-speed function Pipeline can be quickly filled and drained using the full-speed button. Power-loss memory function After power is restored, resume operation exactly as it was before the power outage. External Control Function Choose from different models of external control modules to enable start/stop, direction, and flow control. Four external control module options are available: 0–5V, 0–10V, 4–20mA, and 0–10kHz. Communication feature Optional communication module available for RS485 communication control (using the universal Modbus protocol). Smart Temperature Control Intelligent temperature-controlled operation of the cooling fan reduces running noise. Foot pedal switch control Optionally available foot switch for start/stop control Power consumption <25W Applicable Power Source Wide-range voltage AC 90-260V, 50Hz/60Hz Work environment 0–40°C, humidity below 80% with no condensation Drive weight 1.3KG Protection Level IP31 Phase Compensation Principle

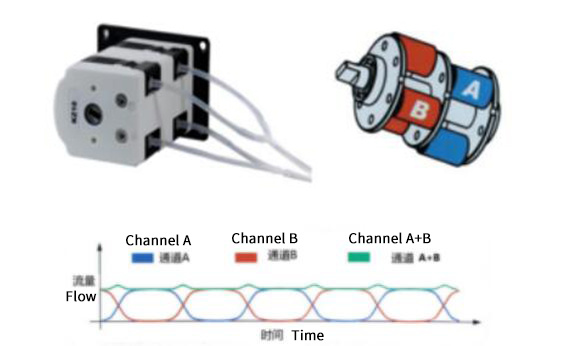

Pump head roller phase compensation increases flow rate by 100%, with flow accuracy exceeding ±0.5%.

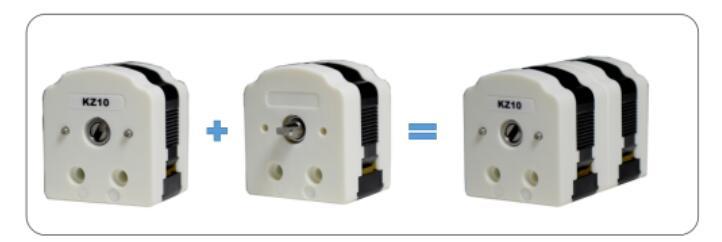

Pump heads in series
Selection Guide
Peristaltic pump model
Rotational speed (rpm)
Number of rollers
Number of channels
Applicable hose
Flow range (ml/min)
BT100-3W+KZ10-14
0.1–100
4
1
Wall thickness: 0.8–1 mm, outer diameter ≤ 6.4 mm
0.0035 - 45
BT100-3W+KZ10-18
8
1
0.0025 - 18
BT100-3W+KZ10-24
4
2
0.0035 - 45
BT100-3W+KZ10-28
8
2
0.0025 - 18
BT100-3W+KZ15-14
4
1
13# 14# 19# 16#
0.0035 - 42
BT100-3W+KZ15-18
8
1
0.0028 - 18.9
BT100-3W+KZ15-24
4
2
0.0035 - 42
BT100-3W+KZ15-28
8
2
0.0028 - 18.9
BT300-3W+KZ10-14
0.1–300
4
1
Wall thickness: 0.8–1 mm, outer diameter ≤ 6.4 mm
0.0035 - 134
BT300-3W+KZ10-18
8
1
0.0025 - 52
BT300-3W+KZ10-24
4
2
0.0035 - 134
BT300-3W+KZ10-28
8
2
0.0025 - 52
BT300-3W+KZ15-14
4
1
13# 14# 19# 16#
0.0035 - 128
BT300-3W+KZ15-18
8
1
0.0028 - 57
BT300-3W+KZ15-24
4
2
0.0035 - 128
BT300-3W+KZ15-28
8
2
0.0028 - 57

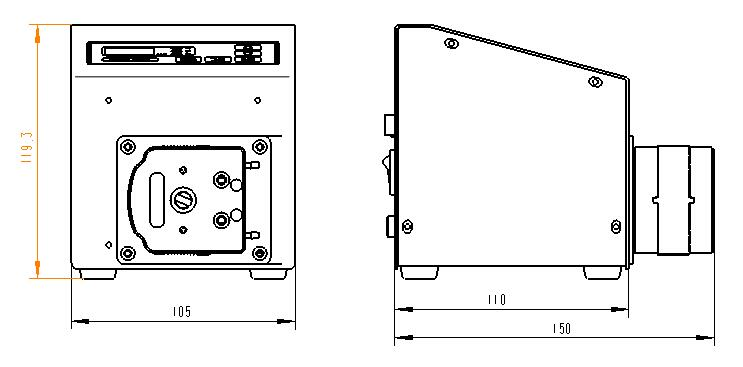

External dimensions
