TS-1B+N*W0109 Multi-channel independent control split injection pump
Category:
Tags:
- Product Description
TS-1B+N*W0109 Multi-channel independent control split injection pump
-
- Commodity name: TS-1B+N*W0109 Multi-channel independent control split injection pump
Multi-channel perfusion/aspiration type, independently controllable, suitable for syringes, N is the number of actuators
Product Introduction
◆ The TS-1B+N*W0109-1B is a multi-channel infusion/aspiration type independently controlled micro-syringe pump, where N represents the number of actuator units
◆ Four actuator units are independently controlled, setting different volumes and flow rates without interference.
◆ 1-4 actuator units are selectable, and any actuator unit can be turned on or off at any time.
◆ Flow rate range: 0.138ul-52.95ml/min (per actuator unit)
◆ Compact size; the controller and actuator units have a split structure.
◆ Capable of accommodating syringes of different specifications.
◆ User-friendly human-machine interface: large screen LCD display, digital knob and membrane keypad combination for easy and quick operation.
◆ Five working modes: infusion mode, aspiration mode, aspiration-infusion mode, infusion-aspiration mode, and continuous mode.
◆ Power-off memory function: automatically saves the set parameters, no need to reset after power-on.
◆ Using a 485 communication bus, it can be connected to a host computer for control via background software.
◆ External control interface: has input/output control functions.
◆ Volume calibration function: a calibration procedure can be used to obtain more accurate flow rates.
Typical Applications
◆ Biological laboratories
◆ Micro-liquid infusion.
Technical Parameters
Product Model TS-1B+N*W0109-1B Working Mode Infusion, Aspiration, Aspiration then Infusion, Infusion then Aspiration, Continuous Flow Rate Range 0.138ul-52.95ml/min Number of Syringes that can be installed 1-4 Range of Syringes that can be installed 1ml-60ml Maximum Stroke 90mm Stroke Resolution 0.156μm Linear Velocity Range 7.94 um/min-79.4mm/min (Flow rate = Linear velocity × Cross-sectional area of syringe) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of maximum stroke) Rated Linear Thrust ＞90N Syringe Selection Built-in selection of major manufacturers and models of syringes Syringe Customization Inner diameter of the syringe can be directly input Flow Rate Calibration Obtain more precise liquid volume through calibration procedure Operating Parameter Settings Dispensed volume, injection time, etc. Display Parameter Selection Volume, flow rate or linear velocity Power-off Memory After power-on, you can choose whether to continue working according to the status before power-off. Status Signal Output Two-channel OC gate signal output, used to indicate start/stop and direction status. Control Signal Input Two start/stop control input terminals; one falling edge trigger signal controls start/stop; one TTL level signal controls start/stop. Communication Interface RS485 Power Supply Used AC 90V-260V/40W Relative Humidity of Working Environment ＜80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe (or Injector) Specifications
Applicable Syringe Inner Diameter (mm)
Reference Flow Rate Range (μl/min-ml/min)
TS-1B+W0109-1B
TS-1B+2*W0109-1B
TS-1B+3*W0109-1B
TS-1B+4*W0109-1B
5ul
0.35
0.764-7.64
10μl
0.50
1.559-15.59
25μl
0.80
3.991-39.91
50μl
1.10
7.546-75.46
100μl
1.60
15.96-159.6
250μl
2.30
32.99-329.9
500μl
3.25
65.87-658.7
1000ul
4.61
132.5-1325
1ml
4.72
0.139-1.39
2ml
9.00
0.505-5.05
5ml
13.10
1.07-10.7
10ml
16.60
1.718-17.18
20ml
19.00
2.251-22.51
30ml
23.00
3.298-32.98
60ml
29.14
5.295-52.95

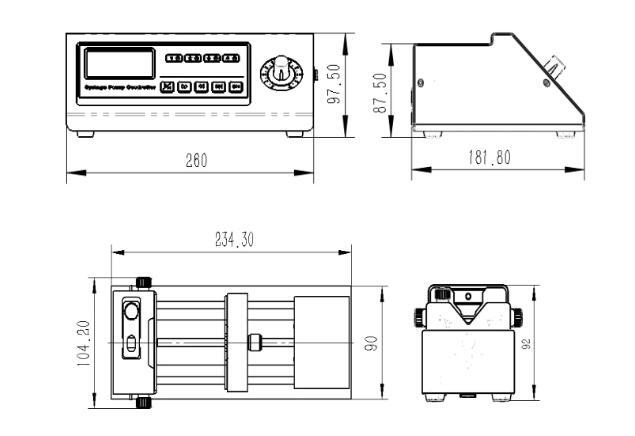

External dimensions
Operation video
Get a free product quote
Fill in your phone and E-mail information, and we will contact you within one working day to solve your problems as soon as possible.
