TJ-3A+W0109-1B split syringe pump
Category:
Tags:
- Product Description
TJ-3A+W0109-1B split syringe pump
-
- Commodity name: TJ-3A+W0109-1B split syringe pump
Flow range: 0.138ul-52.95ml/min, the controller and actuator are separated, suitable for syringes, single-channel perfusion/aspiration type micro-injection pump
Product Introduction
◆ The TJ-3A+W0109 is a single-channel infusion/aspiration microliter syringe pump, suitable for high-precision micro-volume liquid infusion.
◆ Flow Rate Range: 0.138ul-52.95ml/min
◆ Compact size, the controller and actuator are separate.
◆ User-friendly interface: large screen LCD display, digital rotary knob and membrane keypad, easy and quick operation.
◆ 5 Working Modes: Infusion mode, Aspiration mode, Aspiration-Infusion mode, Infusion-Aspiration mode, Continuous mode.
◆ Power-down Memory Function: Saves the set parameters, no need to reset after power-on.
◆ Using RS-485 communication bus, it can be connected to a host computer for control through background software.
◆ External Control Interface: With input/output control functions.
◆ Liquid Volume Calibration Function: A more accurate flow rate can be obtained through the calibration program.
Typical Applications
◆ Biological Laboratories
◆ Micro-volume liquid infusion.
Technical Parameters
Product Model TJ-3A+W0109-1B Working Mode Infusion, Aspiration, Aspiration then Infusion, Infusion then Aspiration, Continuous Flow Rate Range 0.138ul-52.95ml/min Number of Syringes that can be Installed 1 Range of Syringes that can be Installed 5uL-60ml Stroke Distance 90mm Stroke Resolution 0.156μm Linear Velocity Range 7.94 um/min-79.4mm/min (Flow rate = Linear velocity × Syringe inner cross-sectional area) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of stroke distance) Rated Linear Thrust ＞70N Syringe Selection Built-in syringes from major manufacturers and models are available. Syringe Customization Syringe inner diameter can be entered directly. Flow Rate Calibration Obtain more accurate liquid volume through the calibration program. Running Parameter Settings Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate, or linear velocity Power-down Memory After power-on, you can choose whether to continue working according to the state before power-off. Status Signal Output 2-channel OC gate signal output, used to indicate start/stop and direction status. Control Signal Input 2-channel start/stop control input terminals, 1-channel falling edge trigger signal controls start/stop; 1-channel TTL level signal controls start/stop. Communication Interface RS485 Power Supply Used AC 90V-260V/10W Relative Humidity of Working Environment ＜80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe Specifications
Syringe Inner Diameter (mm)
Reference Flow Rate Range (nl/min-μl/min)
TJ-3A+W0109-1B
5ul
0.35
0.764-7.64
10μl
0.50
1.559-15.59
25μl
0.80
3.991-39.91
50μl
1.10
7.546-75.46
100μl
1.60
15.96-159.6
250μl
2.30
32.99-329.9
500μl
3.25
65.87-658.7
1000ul
4.61
132.5-1325
1ml
4.72
0.139-1.39
2ml
9.00
0.505-5.05
5ml
13.10
1.07-10.7
10ml
16.60
1.718-17.18
20ml
19.00
2.251-22.51
30ml
23.00
3.298-32.98
60ml
29.14
5.295-52.95

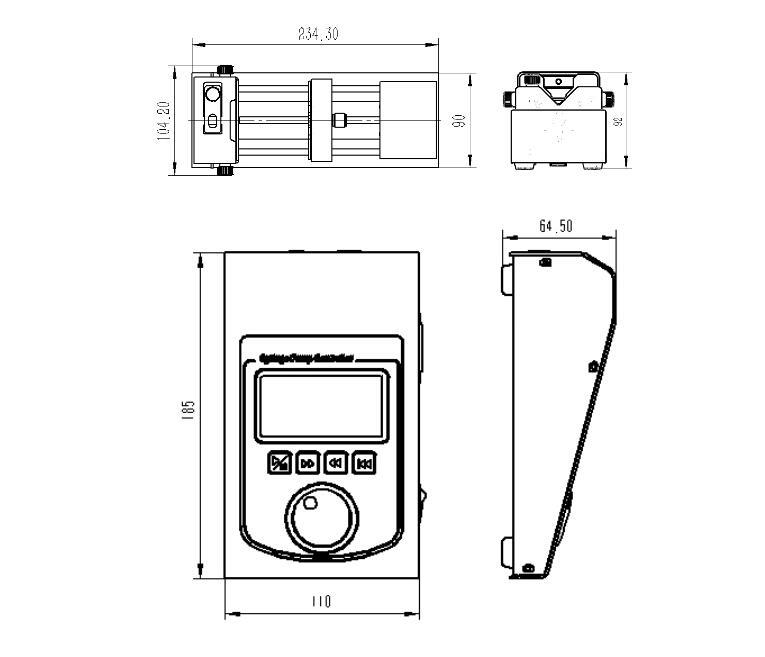

Dimensions
