BT100-2L, BT300-2L

Product Description

Commodity name: BT100-2L, BT300-2L

Flow range: 0.0048-620mL/min, optional 3 pump heads: TH10, JZ15, mYZ15, flow and speed displayed on the same screen, flow calibration

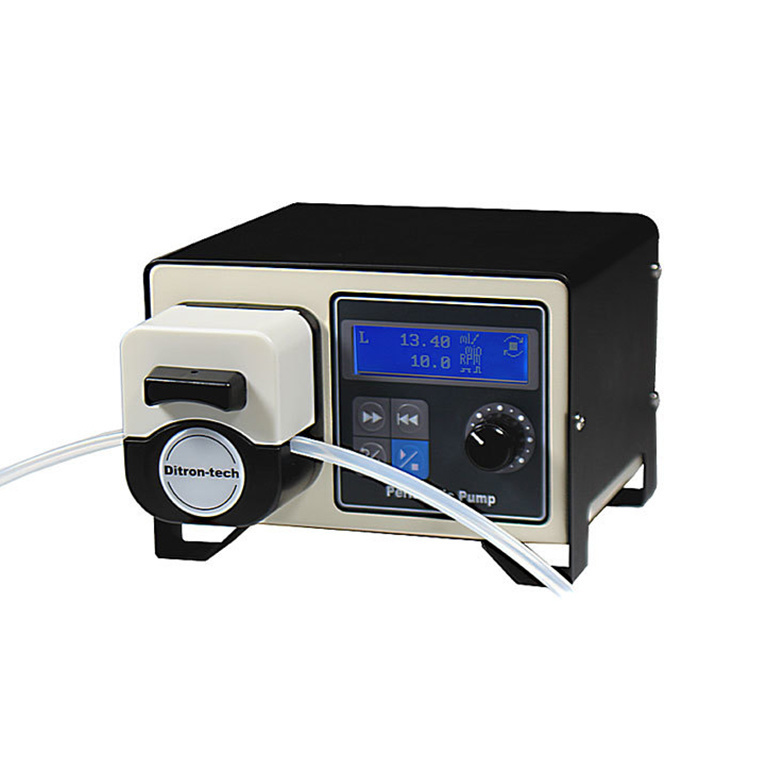

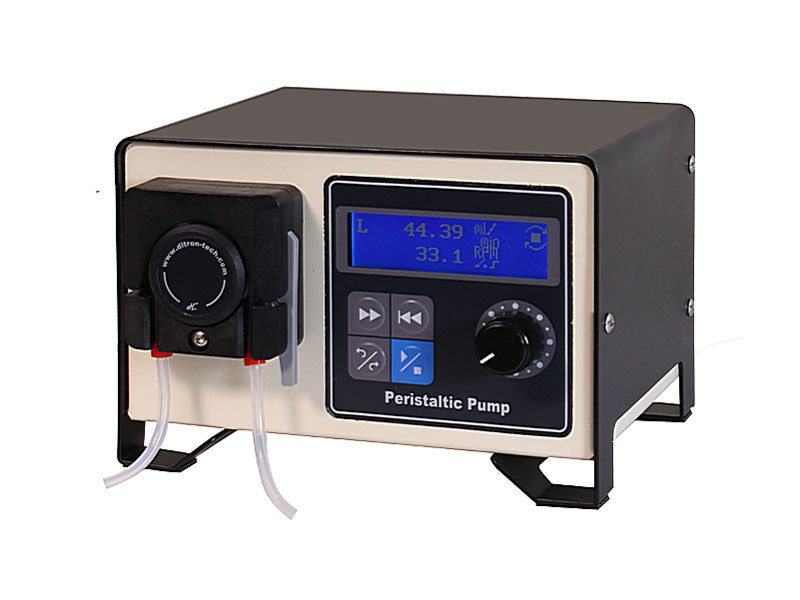

BT100-2L, BT300-2L

Product Introduction

◆ Flow Rate Range: TH10 Pump Head: 0.006-41mL/min;

JZ15 Pump Head: 0.011-500mL/min;

mYZ15 Pump Head: 0.0048-620mL/min

◆ Three pump heads are optional: TH10, JZ15, mYZ15. Standard configuration includes imported tubing for longer life.

◆ Flow rate and speed are displayed simultaneously; flow rate calibration.

◆ Timing function, timing range 0.1 seconds - 24 hours.

◆ Membrane keypad with imported encoder control, more convenient and reliable.

◆ Flow rate accuracy up to ±0.5%.

Typical Applications

◆ Laboratory applications, pharmaceuticals, biochemical instruments

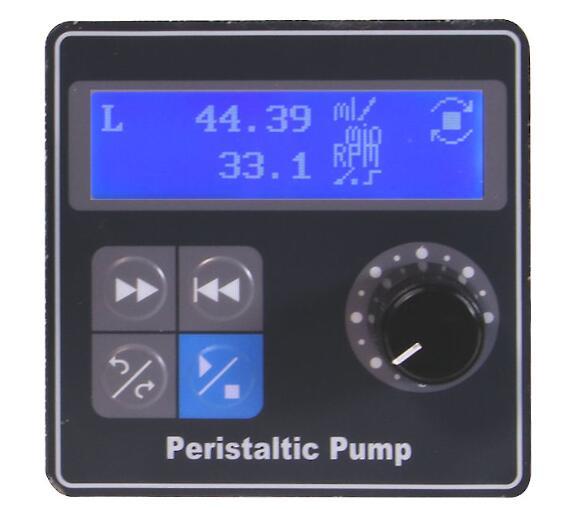

Control Panel

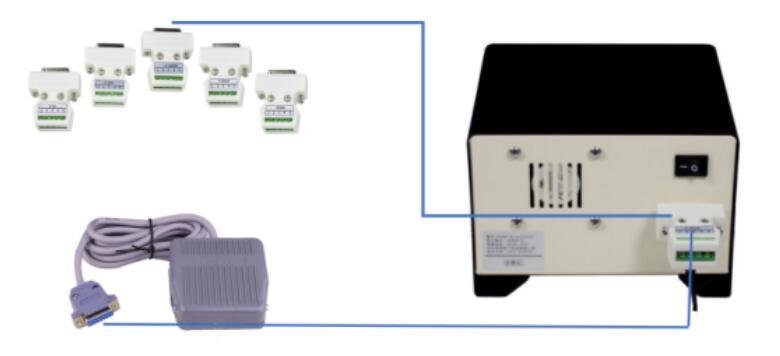

External Signal Control

◆ Optional 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485 communication modules for external signal control.

◆ Optional foot switch to control start and stop.

Technical Parameters

Product Model	BT100-2L			BT300-2L
Applicable Pump Head	TH10A	JZ15	mYZ15	JZ15	mYZ15
Flow Rate Range (mL/min)	0.017-41	0.011-164	0.0048-139	0.011-500	0.0048-620
Number of Channels	1	1	1, 2	1	1, 2
Speed Adjustment Range	0.01-100RPM			0.01-300RPM
Speed Resolution	0.01RPM (0-10RPM); 0.1RPM (10-100RPM); 1RPM (100-300RPM)
Display Function	128×32 graphic dot matrix LCD display, flow rate and speed displayed simultaneously
Direction Control	Reversible operation
Timing Function	Time setting range 0.1 seconds to 24 hours, automatic stop at set time
Operation Method	Rotary encoder switch with membrane keypad operation, more convenient for users
Full Speed Function	Quick filling and emptying of the pipeline can be achieved through the full speed button
Power-off Memory Function	After power-on, continue operation according to the pre-power-off status
Calibration Function	With automatic flow rate calibration function, convenient and quick operation
External Control Function	Optional different models of external control modules, can perform start/stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional
Communication Function	Optional communication module, RS485 communication control can be performed (using the general Modbus protocol)
Output Function	Start/stop, direction output, frequency output 0-10KHz, OC gate output
Foot Switch Function	Optional foot switch to control start and stop
Power Consumption	20W
Applicable Power Supply	Wide voltage AC90-260V, 50Hz/60Hz
Working Environment	0-40℃, humidity <80%, no condensation
Driver Weight	2KG
Protection Level	IP31

Selection Guide

Driver	Applicable Pump Head	Optional Channels	Tubing	Flow Rate Range (mL/min)
BT100-2L	TH10A	1	Inner diameter ≤3.2, wall thickness 0.8-1mm	0.0027-41
	TH10B	1	Inner diameter ≤3.2, wall thickness 0.8-1mm	0.0017-26
	JZ15A	1	13#14#19#16#25#17#	0.0052-164
	JZ15B	1	13#14#19#16#25#17#	0.0041-98
	mYZ15-13	1	13#14#19#16#25#	0.006-139
	mYZ15-16	1	13#14#19#16#25#	0.0048-90
	mYZ15-23	2	13#14#19#16#	0.006-59
	mYZ15-26	2	13#14#19#16#	0.0048-46
BT300-2L	JZ15A	1	13#14#19#16#25#17#	0.0052-500
	JZ15B	1	13#14#19#16#25#17#	0.0041-253
	mYZ15-13	1	13#14#19#16#25#17#	0.006-620
	mYZ15-16	1	13#14#19#16#25#17#	0.0048-327
	mYZ15-23	2	13#14#19#16#	0.06-205
	mYZ15-26	2	13#14#19#16#	0.0048-144
