S600-10B
-
- Commodity name: S600-10B
Flow range: 0.07-2400mL/min Stepper motor drive, integrated structure 15-position BCD DIP switch speed control, or external control signal speed control
Product Introduction
◆ Flow Range: 0.07-2400mL/min
◆ Stepper motor drive, integrated structure◆ 15-speed BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start/stop, switch quantity control forward/reverse
◆ Flow accuracy up to ±1%
◆ 24V DC power supply
Technical Parameters
Product Model S600-10B+YZ series S600-10B+DZ25 Product Images
Applicable Pump Head YZ15A (PSF material), YZ25A (PSF material), YZ15B (PPS material), YZ25B (PPS material), YZ15C (6 rollers) KZ25 Start/Stop Control Can control start and stop Direction Control Reversible Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one. Standard configuration is 0-10KHz S600-2B+YZ15(25) Internal Speed Range 1-600rpm, 15-speed adjustable, standard configuration is 40, 80, 120, 160, 200, 240, 280, 320, 360, 400, 440, 480, 520, 560, 600rpm, customizable External Speed Range 0-100rpm, speed resolution 0.1rpm; ≥100rpm, speed resolution 1rpm, full-range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, choose one Speed Error ≤±0.5% Adaptable Tubing 13#, 14#, 19#, 16#, 25#, 17#, 18#, 15#, 24# 15#, 24#, 35#, 36# Start/Stop Control Start/Stop Control Switch quantity control contact normally open, peristaltic pump running; contact closed (port 3 and port 5 short-circuited), peristaltic pump stops Direction Control Direction Control Switch quantity control contact normally open, peristaltic pump clockwise running; contact normally closed (port 4 and port 5 short-circuited), peristaltic pump counterclockwise running Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Working Environment 0-40℃, Relative Humidity: <80% Weight 2000g 2500g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
S600-10B+YZ15A
S600-10B+YZ15B
3
1, 2
13#
≤600
≤46.10
14#
≤178.1
19#
≤336.9
16#
≤556.22
25#
≤1176
17#
≤2111
18#
≤2416
S600-10B+YZ25A
S600-10B+YZ25A
3
1, 2
15#
≤1066
24#
≤1856

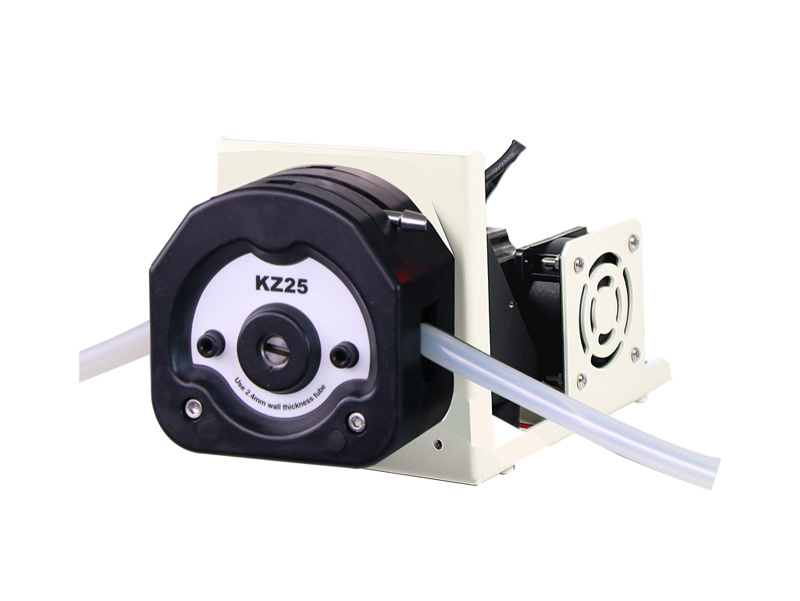

S600-10B+KZ25 3 1 15# ≤1841 24# ≤3208 35# ≤4540 36# ≤6000 Dimensions
S600-10B+YZ series S600-10B+KZ25
