S300-11B+JZ15
-
- Commodity name: S300-11B+JZ15
Flow range: 0.16-513.77mL/min Standard imported ultra-long life pump tube, pump tube life > 5000 hours Extended torque stepper motor drive
Product Introduction
◆ Flow Range: 0.16-513.77mL/min
◆ Standard configuration with imported long-life pump tube, pump tube life > 5000 hours
◆ Extended high-torque stepper motor drive◆ Pump head with 2 rollers or 4 rollers optional; 2-roller pump head has larger flow rate, 4-roller pump head has lower pulsation
◆ 15-position BCD DIP switch speed adjustment, or external control signal speed adjustment
◆ Switch quantity control start and stop, switch quantity control forward and reverse
◆ Flow accuracy up to ±1%
◆ 24V DC power supply, optional power adapter for 220V AC power supply
Tubing Installation
◆ Manually rotate the transparent shell cover at the arc, remove the cover
◆ Manually rotate the roller, insert the tube with special connectors at both ends. After insertion, continue to rotate the roller to ensure that the tube is in the middle of the roller
◆ Fasten the transparent shell cover and press and fasten it by hand

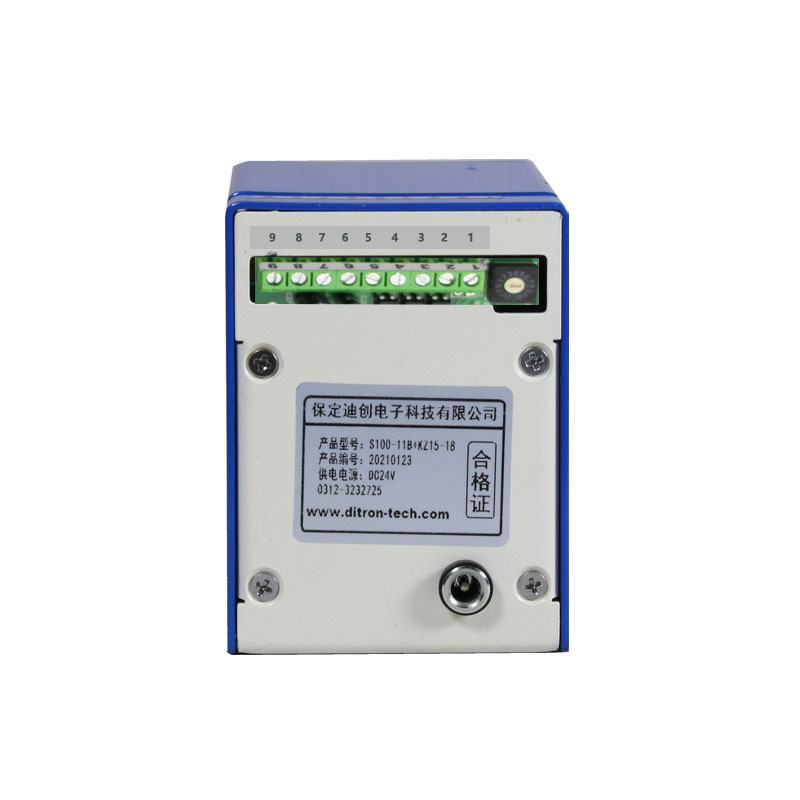

Control Circuit
◆ BCD coded switch 15-speed adjustment
◆ The BCD coded switch is set to "0" for external signal control
◆ Terminals 1 and 2 are RS485 communication control input terminals, 1 is positive, 2 is negative
◆ Terminals 3 and 4 are external signal input terminals, 3 is positive, 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, choose one
◆ Terminals 5 and 7 control start and stop. Floating or open, pump runs; closed, pump stops
◆ Terminals 6 and 7 are for direction control. Floating or open, pump runs clockwise; closed, pump runs counterclockwise
◆ Terminals 8 and 9 are the power input terminals, 9 is positive, 8 is negative, DC24 is recommended
Technical Parameters

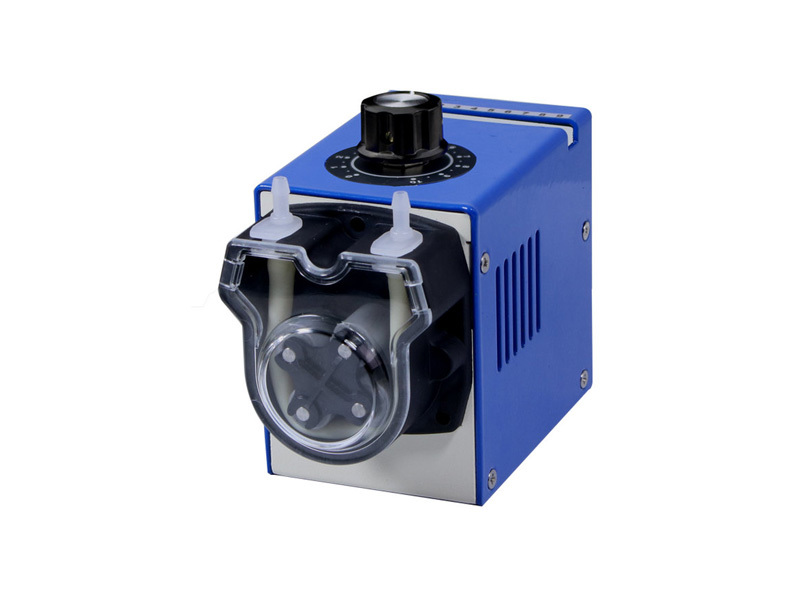

Product Model S300-11B+JZ15 S300-12B+JZ15 Product Photo
Applicable Pump Head JZ15A (2 rollers), JZ15B (4 rollers) CPU ARM Cortex-0 core, STM32 chip Motor Driver Chip Sanyo THB6128 driver chip Start/Stop Control Can control start and stop Direction Control Reversible Internal Speed Control BCD DIP switch adjustment Imported potentiometer stepless speed regulation External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one, standard configuration is 0-10KHz Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm, customizable External Speed Range 0-300rpm, speed resolution 1rpm, full range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, choose one Speed Error ≤±0.5% Suitable Tubing 14#, 19#, 16#, 25#, 17# Start/Stop Control Start/stop control switch quantity control normally open contact, peristaltic pump runs; contact closed (port 5 and port 7 shorted), peristaltic pump stops Direction Control Direction control switch quantity control normally open contact, peristaltic pump runs clockwise; normally closed contact (port 6 and port 7 shorted), peristaltic pump runs counterclockwise Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, Relative Humidity: <80% Weight 800g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
Selection Recommendation
S300-11B+JZ15A
S300-12B+JZ15A
2
1
14#
1-300
0.16-49.59
High precision
Liquid transfer, slightly larger flow rate
19#
0.35-108.56
16#
0.62-194.87
25#
1.0-340.68
17#
1.4-513.77
S300-11B+JZ15B
S300-12B+JZ15B
4
1
14#
1-300
0.11-34.88
Suitable for small liquid volume, high-precision transmission, lower pulsation
19#
0.26-77.04
16#
0.40-121.88
25#
0.63-192.39
17#
0.75-253.09

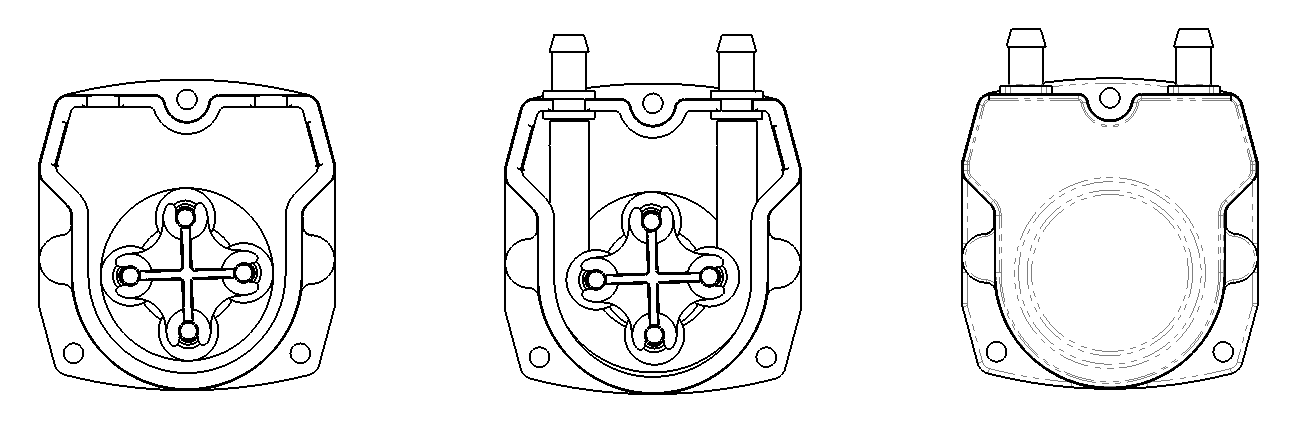

Dimensions
