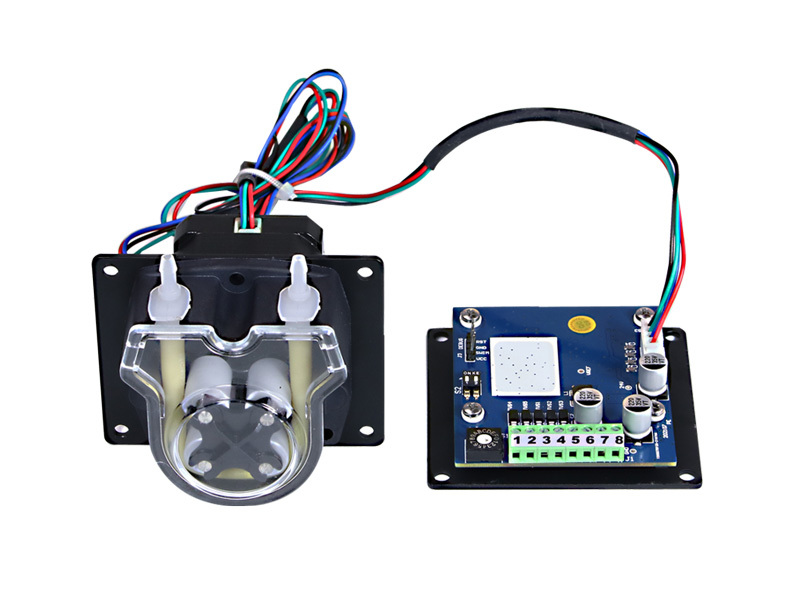

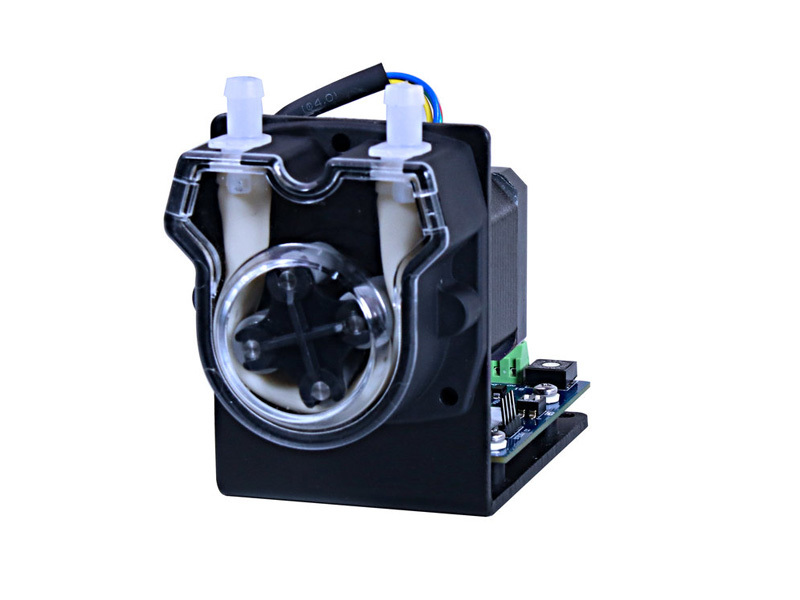

S300-1B(2B、3B)+JZ15
-
- Commodity name: S300-1B(2B、3B)+JZ15
Flow range: 0.16-513.77 mL/min; Stepper motor drive, integrated structure; Standard configuration of imported ultra-long life pump tube, pump tube life > 5000 hours
Product Introduction
◆ Flow Rate Range: 0.16-513.77mL/min
◆ Standard configuration with imported long-life pump tube, pump tube life > 5000 hours
◆ Stepper motor drive, integrated structure◆ The pump head is available in 2-roller and 4-roller options. The 2-roller pump head has a larger flow rate, while the 4-roller pump head has lower pulsation.
◆ 15-speed BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start and stop, switch quantity control forward and reverse rotation
◆ Flow accuracy can reach ±1%
◆ DC 24V power supply, optional power adapter, can be powered by 220V AC power
Tubing Installation

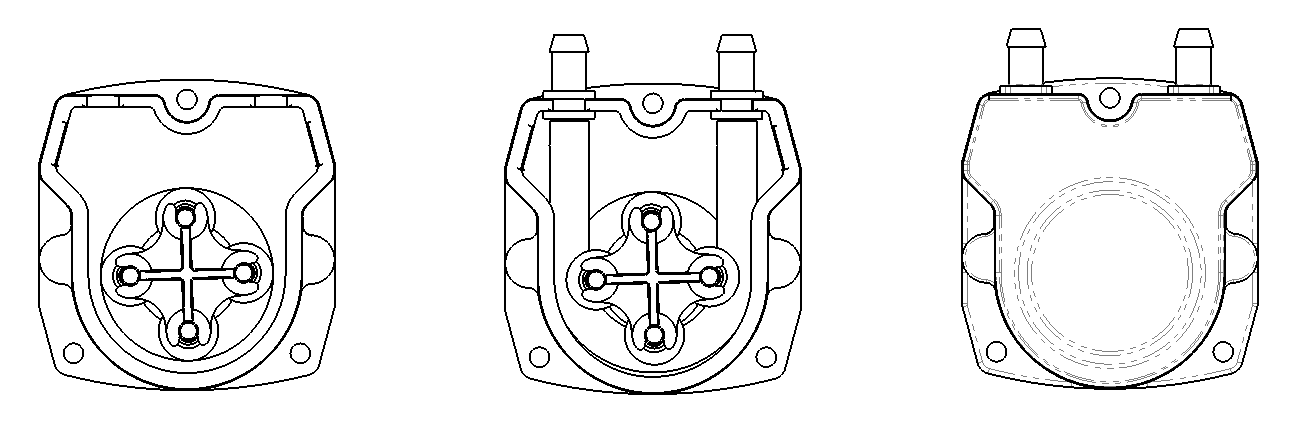

◆ Manually push the arc of the transparent shell cover to remove the shell cover
◆ Manually rotate the rollers to install the tubing with special connectors at both ends. After installation, continue to rotate the rollers to ensure the tubing is in the middle of the rollers.
◆ Fasten the transparent shell cover, and press and fasten it firmly by hand
Control Circuit
◆ BCD coded switch 15-speed adjustment
◆ The BCD coded switch is set to "0" for external signal control
◆ Terminals 1 and 2 are the RS485 communication control input terminals, 1 is positive, 2 is negative
◆ Terminals 3 and 4 are the external signal input terminals, 3 is positive, 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, choose one
◆ Terminals 5 and 7 control start and stop. Open circuit or floating, pump runs; closed, pump stops
◆ Terminals 6 and 7 control direction. Open circuit or floating, pump runs clockwise; closed, pump runs counterclockwise.
◆ Terminals 8 and 9 are the power input terminals, 9 is positive, 8 is negative, recommended to use DC24V
Technical Parameters

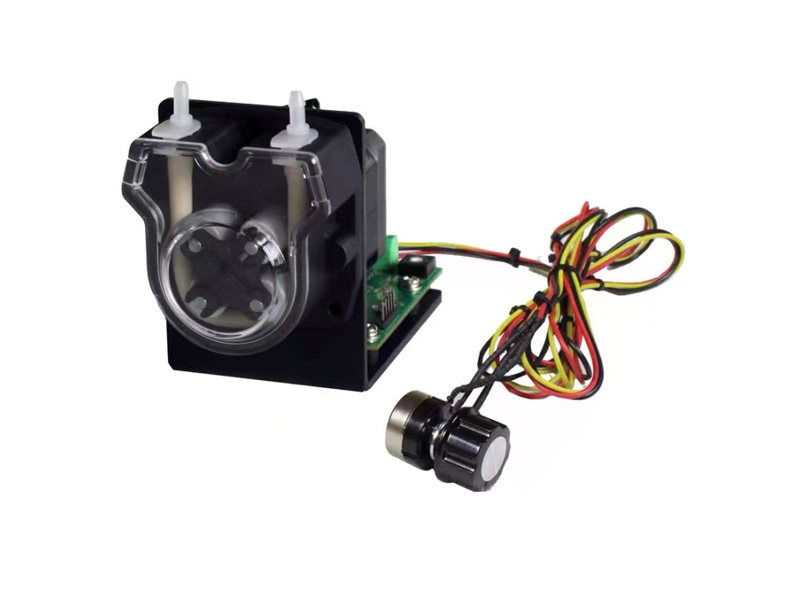

Product Model S300-1B+JZ15 S300-2B+JZ15 S300-3B)+JZ15 Product Image
Start/Stop Control Can control start and stop Direction Control Reversible Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one, standard configuration is 0-10KHz Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm, customizable External Speed Range 0-300rpm, speed resolution 1rpm, full range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, choose one Speed Error ≤±0.3% Start/Stop Control Start/Stop Control Switch quantity control Normally open contact, peristaltic pump runs; contact closed (port 5 and port 7 shorted), peristaltic pump stops Direction Control Direction Control Switch quantity control Normally open contact, peristaltic pump runs clockwise; normally closed contact (port 6 and port 7 shorted), peristaltic pump runs counterclockwise Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, Relative Humidity: <80% Weight 600g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Rate Range (mL/min)
S300-1B+JZ15A
S300-2B+JZ15A
S300-3B+JZ15A
2
1
14#
1-300
0.16-49.59
19#
0.35-108.56
16#
0.62-194.87
25#
1.0-340.68
17#
1.4-513.77
S300-1B+JZ15B
S300-2B+JZ15B
S300-3B+JZ15A
4
1
14#
1-300
0.11-34.88
19#
0.26-77.04
16#
0.40-121.88
25#
0.63-192.39
17#
0.75-253.09

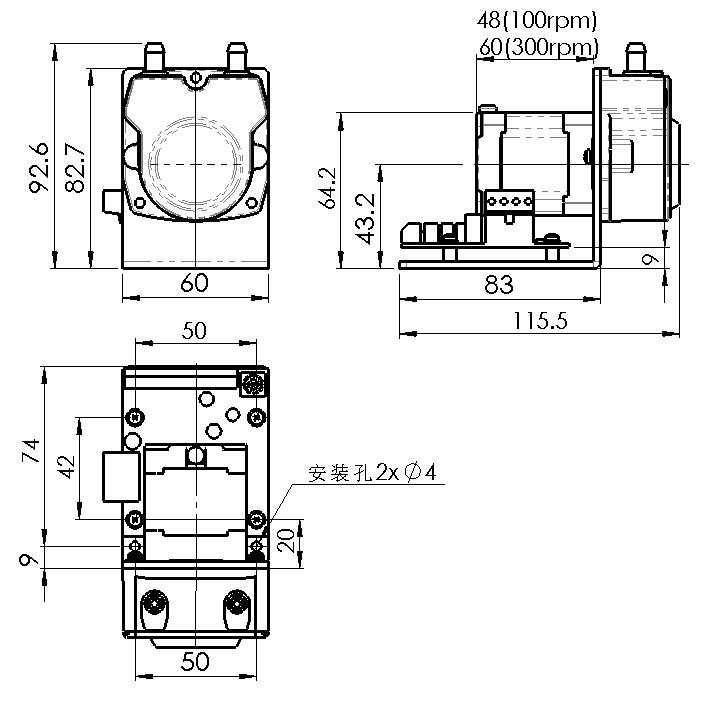

Dimensions
