S100-11B+TH10
Category:
- Product Description
S100-11B+TH10
-
- Commodity name: S100-11B+TH10
Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery. Pump heads are available in 4-roller and 8-roller options; 4-roller pump heads have a slightly larger flow rate, while 8-roller pump heads have lower pulsation.
Product Introduction
◆ Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery
◆ Pump head is available in 4-roller and 8-roller options; 4-roller pump head has a slightly larger flow rate, while the 8-roller pump head has lower pulsation.
◆ Stepper motor drive, integrated structure◆ 15-speed BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start and stop, switch quantity control forward and reverse rotation
◆ Flow accuracy up to ±1%
◆ 24V DC power supply, optional power adapter for 220V AC power supply

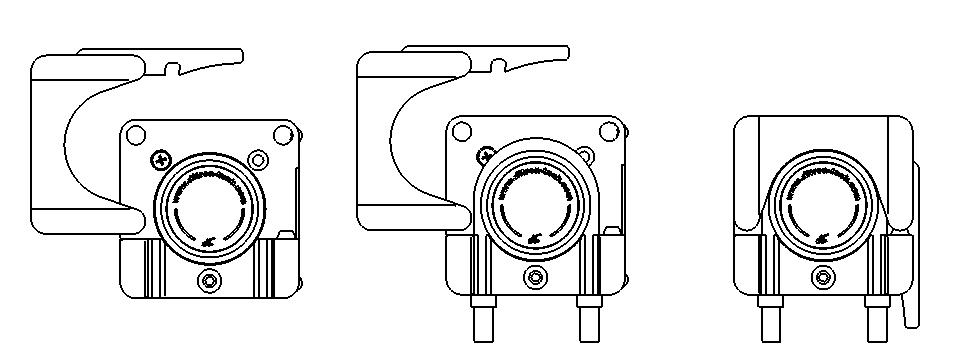

Tube Installation
◆ Manually pull the lever outward and rotate the pressure block assembly
◆ Install two beads on the tube to secure the tube and prevent slippage. Install the tube and manually rotate the rollers to ensure the tube is in the middle of the rollers.
◆ Rotate the pressure block assembly and engage the lever

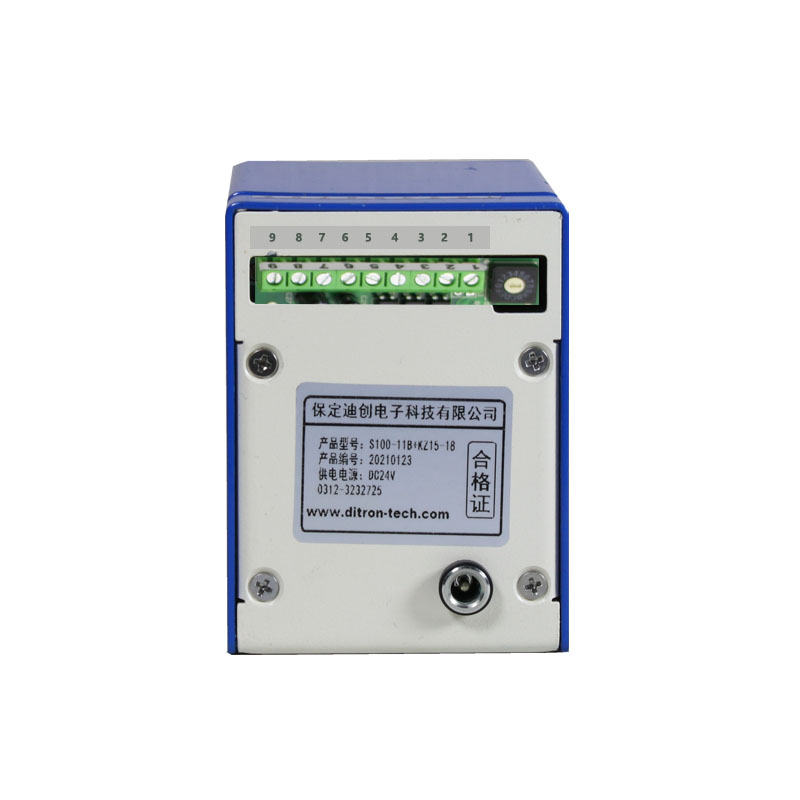

Control Circuit
◆ 15-speed adjustment via BCD coded switch
◆ Set the BCD coded switch to "0" for external signal control
◆ Terminals 1 and 2 are the RS485 communication control input terminals; 1 is positive, 2 is negative.
◆ Terminals 3 and 4 are the external signal input terminals; 3 is positive, 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA (choose one).
◆ Terminals 5 and 7 control start and stop. When open or disconnected, the pump runs; when closed, the pump stops.
◆ Terminals 6 and 7 control direction. When open or disconnected, the pump runs clockwise; when closed, the pump runs counter-clockwise.
◆ Terminals 8 and 9 are the power input terminals; 9 is positive, 8 is negative. DC24V is recommended.
Technical Parameters
Product Model S100-11B+TH10 Applicable Pump Head TH10A (4-roller), TH10B (8-roller) CPU ARM Cortex-0 core, STM32 chip Motor Driver Chip Sanyo THB6128 driver chip Start/Stop Control Can control start and stop Direction Control Reversible, forward and reverse Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control (choose one); 0-10KHz is standard. Internal Speed Range 1-100rpm, 15-speed adjustment; standard configuration is 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100rpm; customizable. External Speed Range 0-100rpm, speed resolution 0.1rpm, full range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol; communication control and other external control cannot coexist; choose one. Speed Error ≤±0.5% Adaptable Tubing 0.6×1，1×1, 2×1，2.4×0.8，3×1，0.38×0.86，0.76×0.86，1.02×0.86，1.6×0.8，2.06×0.86，2.79×0.86，3.17×0.86，3.2×0.8 Start/Stop Control Start/Stop Control: Switch quantity control normally open contact, peristaltic pump runs; contact closed (port 5 and port 7 short-circuited), peristaltic pump stops. Direction Control Direction Control: Switch quantity control normally open contact, peristaltic pump runs clockwise; normally closed contact (port 6 and port 7 short-circuited), peristaltic pump runs counter-clockwise. Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, Relative Humidity: <80% Weight 540g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
Recommended Selection
S100-11B+TH10A
4
1
0.6×1
≤100
0.0027-2.7
High-precision micro-flow
Liquid delivery, slightly larger flow rate
1x1
0.0059-6.28
2x1
0.020-20.12
3x1
0.038-37.47
S100-11B+TH10B
8
1
0.6×1
≤100
0.0017-1.7
Suitable for lower volume, higher precision transmission, lower pulsation
1x1
0.0044-4.22
2x1
0.014-13.04
3x1
0.023-21.41

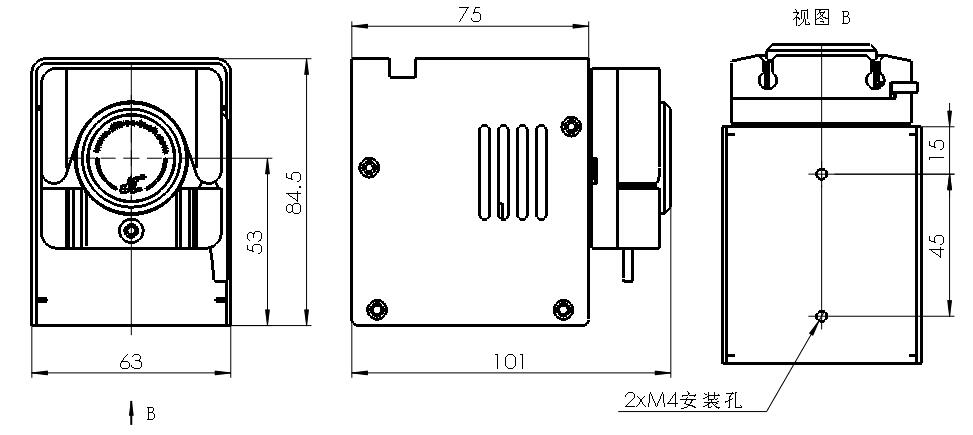

Dimensions
