S100（300）-11B+KZ10(15)
-
- Commodity name: S100（300）-11B+KZ10(15)
Flow range: 0.0025-134mL/min, suitable for micro-flow high-precision liquid delivery
Product Introduction
◆ Flow range: 0.0025-134mL/min, suitable for micro-flow high-precision liquid delivery
◆ Pump head single-channel and dual-channel optional, with 4-roller, 8-roller optional, 4-roller pump head flow slightly larger, 8-roller pump head pulsation lower
◆ Maximum speed of 100rpm and 300rpm optional
◆ Pump heads can be used in series
◆ Stepper motor drive
◆ 15-speed BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start and stop, switch quantity control forward and reverse
◆ Flow accuracy up to ±1%
◆ Panel or base mounting
◆ DC 24V power supply, optional power adapter, realizing 220V AC power supply

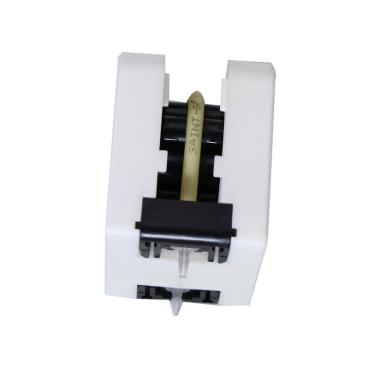

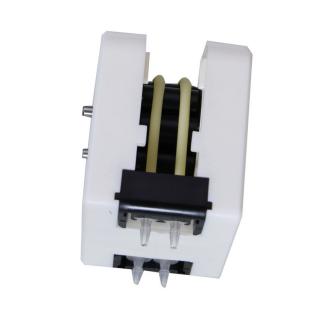

Single Channel Dual Channel Tube Installation
◆ Press inward on both sides of the pressure block to remove the pressure block → Install the tubing assembly → Install the pressure block

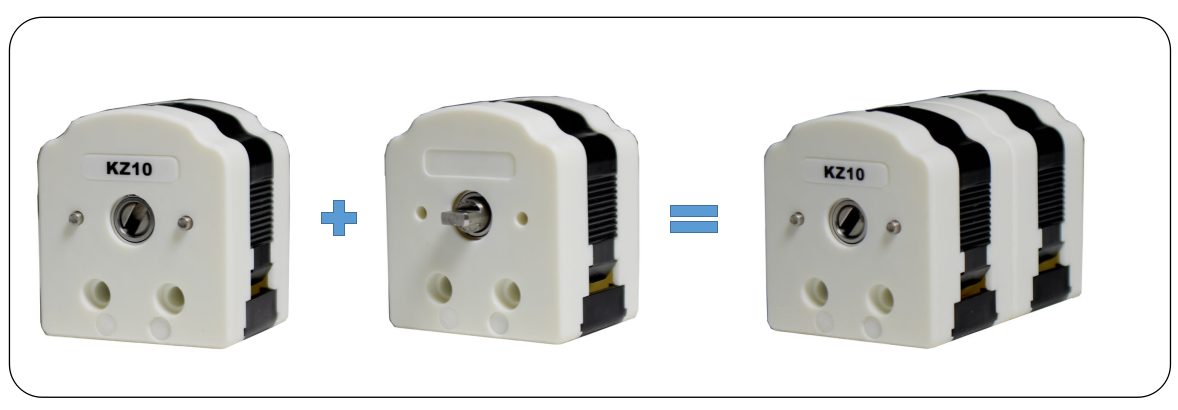

Pump Head Series Connection
◆ Two pump heads connected in series, the rollers of the front and rear pump heads are installed staggered, the rollers of the front pump head are located between the two rollers of the rear pump head
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by a three-way connection, and the liquid in the pipelines of the front and rear pump heads compensate each other
◆ Liquid pulsation is greatly reduced, flow accuracy is above ±0.5%
Phase Compensation Principle
◆ Two pump heads connected in series, the rollers of the front and rear pump heads are installed staggered, the rollers of the front pump head are located between the two rollers of the rear pump head
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by a three-way connection, and the liquid in the pipelines of the front and rear pump heads compensate each other
◆ Liquid pulsation is greatly reduced, flow accuracy is above ±0.5%
Control Circuit
◆ BCD coded switch 15-speed control
◆ The BCD coded switch is set to "0" for external signal control
◆ Terminals 1 and 2 are RS485 communication control input terminals, 1 is positive, 2 is negative
◆ Terminals 3 and 4 are external signal input terminals, 3 is positive, 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, one of which can be selected
◆ Terminals 5 and 7 control start and stop; floating or open, pump runs; closed, pump stops
◆ Terminals 6 and 7 are for direction control; floating or open, pump runs clockwise; closed, pump runs counterclockwise
◆ 8 and 9 are power input terminals, 9 is positive, 8 is negative, recommended to use DC24V
Technical Parameters
Product Model S100(300)-11B+KZ10(15) Applicable Pump Head KZ10-14 KZ10-18 KZ10-24 KZ10-28 KZ15-14 KZ15-18 KZ15-24 KZ15-28 Start/Stop Control Can control start and stop Direction Control Reversible in both directions Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, one of which can be selected. Standard configuration is 0-10KHz S100-11B Internal Speed Range 1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm, customizable S100-11B External Speed Range 0-100rpm, speed resolution 0.1rpm, full-range linear correspondence S300-11B Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20 40 60 80 120...280 300rpm, customizable S300-11B External Speed Range 0-300rpm, speed resolution 0.1rpm, full-range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, one of which can be selected Speed Error ≤±0.5% Start/Stop Control Start/Stop Control Switch quantity control contact normally open, peristaltic pump runs; contact closed (port 5 and port 7 shorted), peristaltic pump stops Direction Control Direction Control Switch quantity control contact normally open, peristaltic pump runs clockwise; contact normally closed (port 6 and port 7 shorted), peristaltic pump runs counterclockwise Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, relative humidity: <80% Weight 540g Selection Guide
Peristaltic Pump Model Speed (rpm) Number of Rollers Number of Channels Applicable Tubing Flow rate range (ml/min) S100-11B+KZ10-14 100 4 1 Wall thickness 0.8-1mm, outer diameter ≤6.4mm 0.0035-45 S100-11B+KZ10-18 8 1 0.0025-18 S100-11B+KZ10-24 4 2 0.0035-45 S100-11B+KZ10-28 8 2 0.0025-18 S100-11B+KZ15-14 4 1 13# 14# 19# 16# 0.0035-42 S100-11B+KZ15-18 8 1 0.0028-18.9 S100-11B+KZ15-24 4 2 0.0035-42 S100-11B+KZ15-28 8 2 0.0028-18.9 S300-11B+KZ10-14 300 4 1 Wall thickness 0.8-1mm, outer diameter ≤6.4mm 0.0035-134 S300-11B+KZ10-18 8 1 0.0025-52 S300-11B+KZ10-24 4 2 0.0035-134 S300-11B+KZ10-28 8 2 0.0025-52 S300-11B+KZ15-14 4 1 13# 14# 19# 16# 0.0035-128 S300-11B+KZ15-18 8 1 0.0028-57 S300-11B+KZ15-24 4 2 0.0035-128 S300-11B+KZ15-28 8 2 0.0028-57 Dimensions

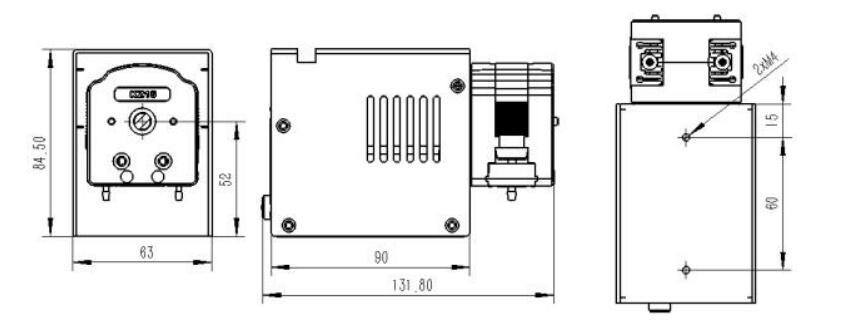

M4 threaded hole user installation hole
