S100（300）-2B+KZ10(15)
Category:
- Product Description
S100（300）-2B+KZ10(15)
-
- Commodity name: S100（300）-2B+KZ10(15)
Flow range: 0.0025-134mL/min, suitable for micro-flow high-precision liquid delivery
Product Introduction
◆ Flow range: 0.0025-134mL/min, suitable for micro-flow high-precision liquid delivery
◆ Single and dual-channel pump heads are optional, with 4-roller and 8-roller options. 4-roller pump heads have a slightly larger flow rate, while 8-roller pump heads have lower pulsation.
◆ Maximum speed of 100rpm and 300rpm are optional.
◆ Pump heads can be used in series.
◆ Stepper motor drive
◆ 15-digit BCD DIP switch speed regulation, or external control signal speed regulation
◆ Switch quantity control start and stop, switch quantity control forward and reverse
◆ Flow accuracy can reach ±1%
◆ Panel or base mounting
◆ DC 24V power supply, optional power adapter, to achieve 220V AC power supply

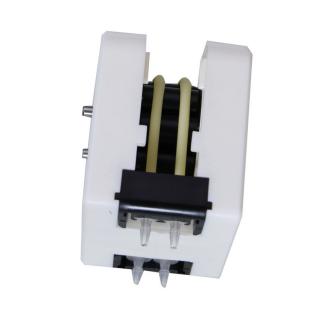

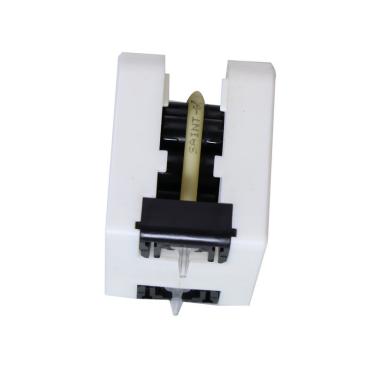

Single Channel Dual Channel Phase Compensation Principle
◆ Two pump heads are connected in series, and the rollers of the front and rear pump heads are staggered. The rollers of the front pump head are located between the two rollers of the rear pump head.
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by three-way connectors, and the liquid in the pipelines of the front and rear pump heads compensate each other.
◆ Liquid pulsation is greatly reduced, and flow accuracy is above ±0.5%.

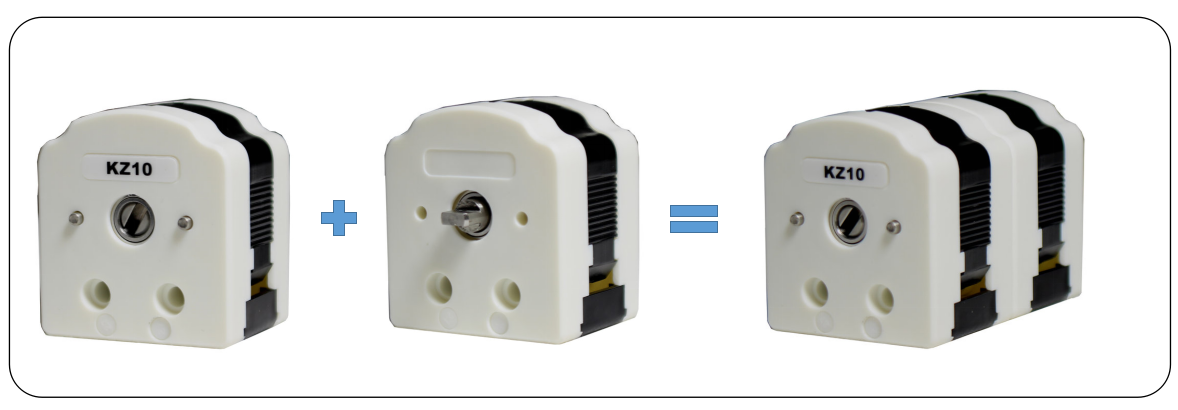

Pump Head Series Connection
◆ Two pump heads are connected in series, and the rollers of the front and rear pump heads are staggered. The rollers of the front pump head are located between the two rollers of the rear pump head.
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by three-way connectors, and the liquid in the pipelines of the front and rear pump heads compensate each other.
◆ Liquid pulsation is greatly reduced, and flow accuracy is above ±0.5%.

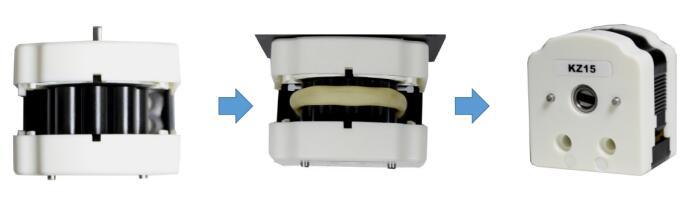

Tubes Installation
◆ Press inward on both sides of the retaining clip to remove it → Insert the tube assembly → Reinstall the retaining clip

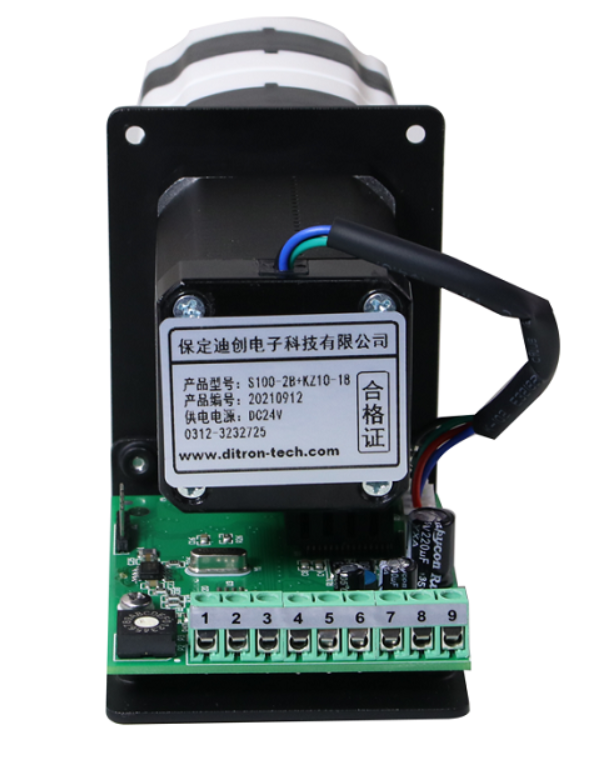

Control Circuit
◆ 15-speed adjustment with BCD coded switch
◆ The BCD coded switch is set to "0" for external signal control.
◆ Terminals 1 and 2 are the input terminals for RS485 communication control, 1 is positive, and 2 is negative.
◆ Terminals 3 and 4 are the external signal input terminals, 3 is positive, and 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, choose one.
◆ Terminals 5 and 7 control start and stop. Floating or open, the pump runs; closed, the pump stops.
◆ Terminals 6 and 7 control direction. Floating or open, the pump runs clockwise; closed, the pump runs counterclockwise.
◆ Terminals 8 and 9 are the power input terminals, 9 is positive, and 8 is negative. DC24V is recommended.
Technical Parameters
Product Model S100-2B+KZ10(15) S300-2B+KZ10(15) Applicable Pump Head KZ10-14 KZ10-18 KZ10-24 KZ10-28 KZ15-14 KZ15-18 KZ15-24 KZ15-28 Start/Stop Control Can control start and stop Direction Control Reversible Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one. 0-10KHz is standard. S100-2B Internal Speed Range 1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm, customizable S100-2B External Speed Range 0-100rpm, speed resolution 0.1rpm, full range linear correspondence S300-2B Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20 40 60 80 120...280 300rpm, customizable S300-2B External Speed Range 0-300rpm, speed resolution 0.1rpm, full range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, choose one. Speed Error ≤±0.5% Start/Stop Control Start/Stop Control: Normally open switch quantity control contacts, the peristaltic pump runs; contacts are closed (port 5 and port 7 are shorted), the peristaltic pump stops. Direction Control Direction Control: Normally open switch quantity control contacts, the peristaltic pump runs clockwise; normally closed contacts (port 6 and port 7 are shorted), the peristaltic pump runs counterclockwise. Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, relative humidity: <80% Weight 540g Selection Guide
Peristaltic Pump Model
Speed (rpm)
Number of Rollers
Number of Channels
Applicable Tubing
Flow range (ml/min)
S100-2B+KZ10-14
100
4
1
Wall thickness 0.8-1mm, outer diameter ≤6.4mm
0.0035-45
S100-2B+KZ10-18
8
1
0.0025-18
S100-2B+KZ10-24
4
2
0.0035-45
S100-2B+KZ10-28
8
2
0.0025-18
S100-2B+KZ15-14
4
1
13# 14# 19# 16#
0.0035-42
S100-2B+KZ15-18
8
1
0.0028-18.9
S100-2B+KZ15-24
4
2
0.0035-42
S100-2B+KZ15-28
8
2
0.0028-18.9
S300-2B+KZ10-14
300
4
1
Wall thickness 0.8-1mm, outer diameter ≤6.4mm
0.0035-134
S300-2B+KZ10-18
8
1
0.0025-52
S300-2B+KZ10-24
4
2
0.0035-134
S300-2B+KZ10-28
8
2
0.0025-52
S300-2B+KZ15-14
4
1
13# 14# 19# 16#
0.0035-128
S300-2B+KZ15-18
8
1
0.0028-57
S300-2B+KZ15-24
4
2
0.0035-128
S300-2B+KZ15-28
8
2
0.0028-57
Dimensions
