◆ Pump head options available: 6 rollers or 10 rollers. The 6-roller pump head has a slightly higher flow rate, while the 10-roller pump head exhibits lower pulsation.

◆ Expandable to up to 6 channels (6 tubes)

◆ 15-speed BCD DIP switch speed adjustment, or external signal speed control

◆ Switch quantity control for start/stop, switch quantity control for forward/reverse

◆ Speed Range: ≤100rpm

◆ Flow accuracy up to ±1%

◆ Panel or base mounting

◆ 24V DC power supply, AC power adapter optional for 220V AC power supply

Tube Installation

◆ Press the push button (DG-1A, DG-1B includes push button) or the corner of the card to remove the card

◆ Place the tube in the card slot; the two ends (STOP) will secure the tube to the card. The distance between the STOPS should be 72mm to ensure consistent flow rate across all channels.

◆ Insert the cards with the installed tubes into the pump body sequentially, completing the tube installation.

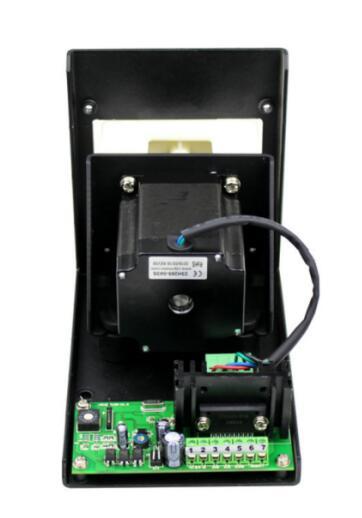

Control Circuit

◆ BCD coded switch, 15-speed adjustment
◆ When the BCD coded switch is set to "0", it is controlled by an external signal.
◆ Terminals 1 and 2 are external signal input terminals. Terminal 1 is positive, terminal 2 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, RS485 communication control, choose one.
◆ Terminals 3 and 5 control start/stop. Open or disconnected: pump runs; Closed: pump stops.
◆ Terminals 4 and 5 control direction. Open or disconnected: pump runs clockwise; Closed: pump runs counter-clockwise.
◆ Terminals 6 and 7 are power input terminals. Terminal 7 is positive, terminal 6 is negative. DC24V is recommended.

Technical Parameters

Product Model	S100-2B+DG
Applicable Pump Head	DG-1A (6 rollers), DG-1B (10 rollers), DG-2A (6 rollers), DG-2B (10 rollers), DG-4A (6 rollers), DG-4B (10 rollers), DG-6A (6 rollers), DG-6B (10 rollers)
Start/Stop Control	Can control start and stop
Direction Control	Reversible
Internal Speed Control	BCD DIP switch adjustment
External Speed Control	0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one. 0-10KHz is standard.
Internal Speed Range	1-100rpm, 15-speed adjustable. Standard configuration: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100rpm. Customizable.
External Speed Range	0-100rpm, speed resolution 0.1rpm, full range linear correspondence
Communication Control	RS485 communication control using Modbus communication protocol. Communication control and other external control cannot coexist; choose one.
Speed Error	≤±0.5%
Adaptable Tubing	0.6×1，1×1,2×1，2.4×0.8，3×1，0.38×0.86，0.76×0.86，1.02×0.86，1.6×0.8，2.06×0.86，2.79×0.86，3.17×0.86，3.2×0.8
Start/Stop Control	Start/Stop Control: Normally open switch quantity control contact, peristaltic pump runs; Closed contact (port 3 and port 5 shorted), peristaltic pump stops.
Direction Control	Direction Control: Normally open switch quantity control contact, peristaltic pump runs clockwise; Normally closed contact (port 4 and port 5 shorted), peristaltic pump runs counter-clockwise.
Applicable Power Supply	11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz
Working Environment	0-40℃, Relative Humidity: <80%
Weight	1200g

Selection Guide

Product Model	Number of Pump Head Rollers	Optional Channels	Tubing	Speed Range (RPM)	Flow Range (mL/min)	Recommended Selection
S100-2B+DG-1A S100-2B+DG-2A S100-2B+DG-4A S100-2B+DG-6A	6	1, 2, 4, 6	0.6 x 1	≤100	0.003-3.27	High-precision micro flow Liquid transport, slightly larger flow rate
			1 x 1		0.007-6.79
			2 x 1		0.02-20.17
			3 x 1		0.04-38.89
S100-2B+DG-1B S100-2B+DG-2B S100-2B+DG-4B S100-2B+DG-6B	10	1, 2, 4, 6	0.6 x 1	≤100	0.003-2.64	Suitable for lower liquid volume and high-precision transmission, lower pulsation
			1 x 1		0.006-6.04
			2 x 1		0.017-17.02
			3 x 1		0.028-28.97
