S100-1B (2B, 3B) + TH10

Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery

Category:

Tags:

Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery

◆ Flow Range: 0.006-41mL/min, suitable for micro-flow, high-precision liquid delivery

◆ Pump head has 4 rollers and 8 rollers optional, 4 rollers pump head flow is slightly larger, 8 rollers pump head pulsation is lower

◆ Stepper motor driven, separated structure

◆ 15-speed BCD DIP switch speed control, or external control signal speed control

◆ Switch quantity control start and stop, switch quantity control forward and reverse

◆ Flow accuracy up to ±1%

◆ 24V DC power supply, optional power adapter, realize 220V AC power supply

Product Model	S100-1B+TH10	S100-2B+TH10	S100-3B+TH10

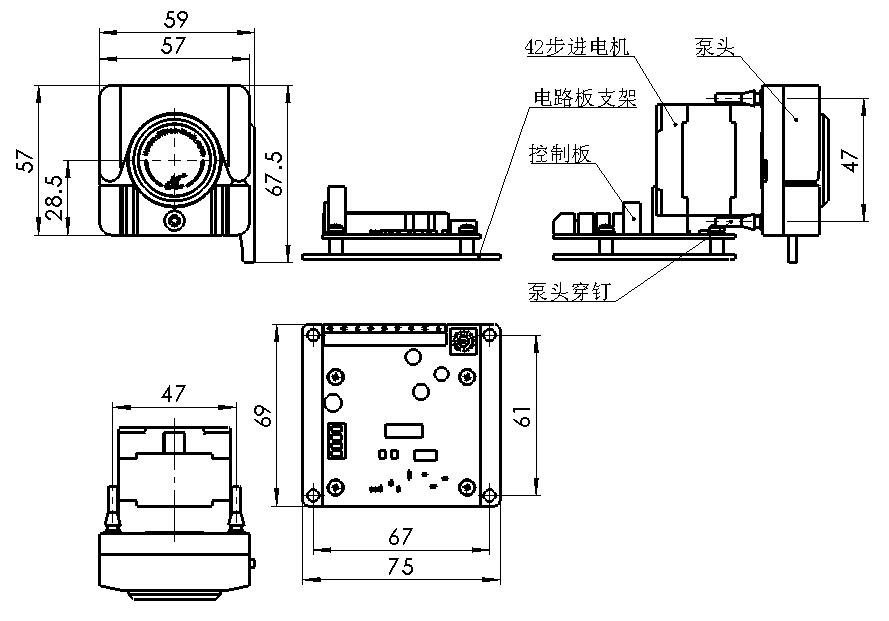

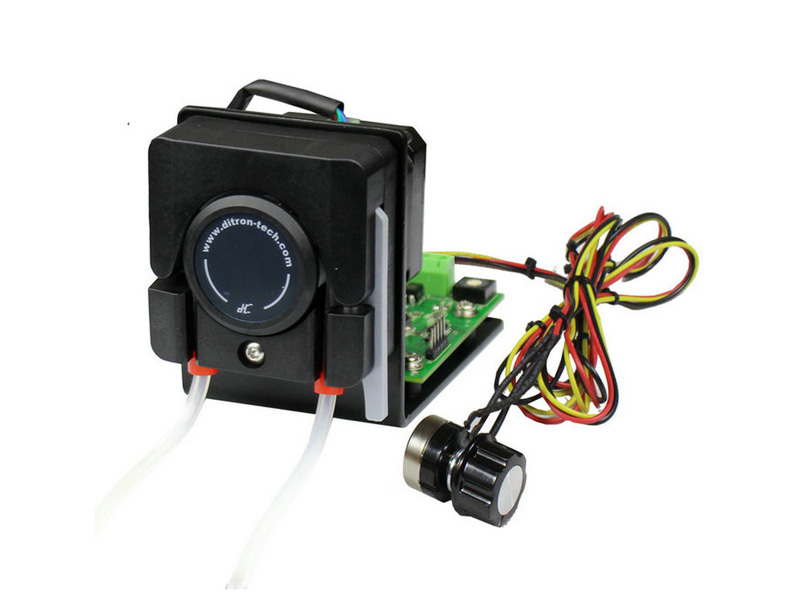

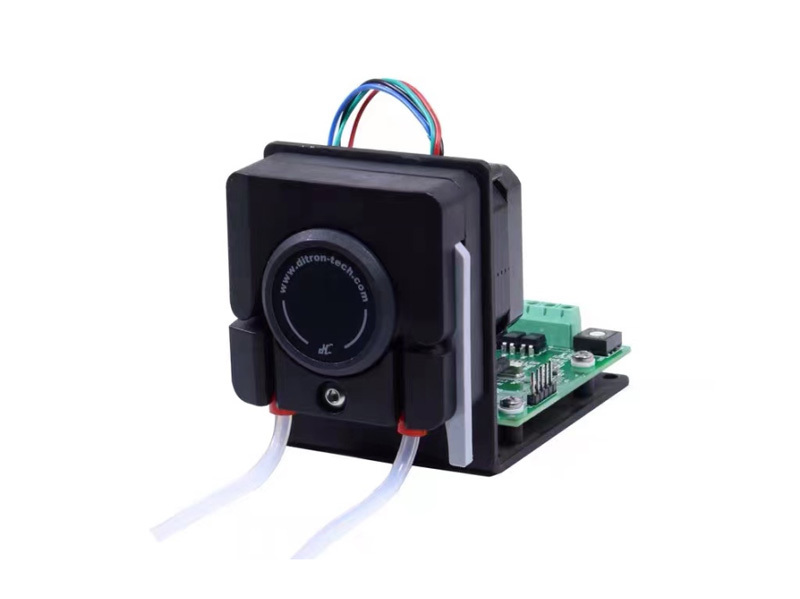

Product Image
Applicable Pump Head	TH10A(4 rollers), TH10B(8 rollers)
Start/Stop Control	Can control start and stop
Direction Control	Forward and reverse reversible
Internal Speed Control	BCD DIP switch adjustment
External Speed Control	0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one. Standard configuration 0-10KHz
Internal Speed Range	1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm, customizable
External Speed Range	0-100rpm, speed resolution 0.1rpm, full range linear correspondence
Communication Control	RS485 communication control, using Modbus communication protocol, communication control and other external control can not coexist, choose one
Speed Error	≤±0.5%
Adaptable Tubing	0.6×1，1×1,2×1，2.4×0.8，3×1，0.38×0.86，0.76×0.86，1.02×0.86，1.6×0.8，2.06×0.86，2.79×0.86，3.17×0.86，3.2×0.8
Start/Stop Control	Start/Stop control switch quantity control normally open contact, peristaltic pump running; contact closed (port 5 and port 7 short circuit), peristaltic pump stop
Direction Control	Direction control switch quantity control normally open contact, peristaltic pump clockwise running; normally closed contact (port 6 and port 7 short circuit), peristaltic pump counterclockwise running
Applicable Power Supply	11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz
Operating Environment	0-40℃, Relative Humidity: <80%
Weight	540g

Product Model	Pump Head Roller Number	Optional Channels	Tubing	Speed Range (RPM)	Flow Range (mL/min)	Selection Recommendation
S100-1B+TH10A S100-2B+TH10A S100-3B+TH10A	4	1	0.6×1	≤100	0.0027-2.7	High-precision micro-flow Liquid delivery, slightly larger flow
			1×1		0.0059-6.28
			2×1		0.020-20.12
			3×1		0.038-37.47
S100-1B+TH10B S100-2B+TH10B S100-3B+TH10B	8	1	0.6×1	≤100	0.0017-1.7	Suitable for lower liquid volume, high-precision transmission, lower pulsation
			1×1		0.0044-4.22
			2×1		0.014-13.04
			3×1		0.023-21.41
