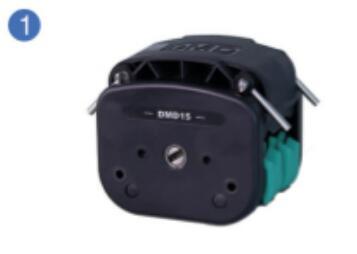

Press down the left and right levers to remove the clamp.
S100(300，600)-2B+DMD15
Flow range: 0.13-3296mL/min Low pulsation high precision DMD15 peristaltic pump head
Category:
- Product Description
S100(300，600)-2B+DMD15
-
- Commodity name: S100(300，600)-2B+DMD15
Flow range: 0.13-3296mL/min Low pulsation high precision DMD15 peristaltic pump head
Product Introduction
◆ Flow Range: 0.13-3296mL/min
◆ Low Pulsation High Precision DMD15 Peristaltic Pump Head
◆ Stepper motor drive, integrated structure◆ 15-position BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start and stop, switch quantity control forward and reverse rotation
◆ Flow accuracy can reach ±0.5%
◆ DC 24V power supply

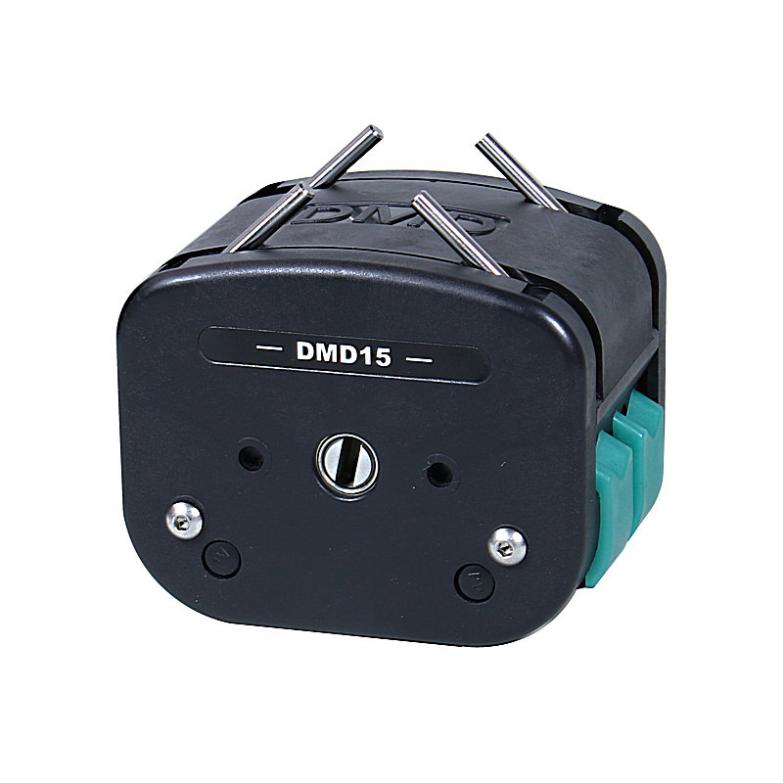

Peristaltic Pump Head
Phase Compensation Principle
◆ The front roller is located between the two rollers of the rear pump head.
◆ The inlet and outlet pipelines of the front and rear pump heads are connected by three-way connectors, and the liquid in the pipelines of the front and rear pump heads compensate each other.
◆ Liquid pulsation is greatly reduced, flow accuracy is above ±0.5%
Tube Installation

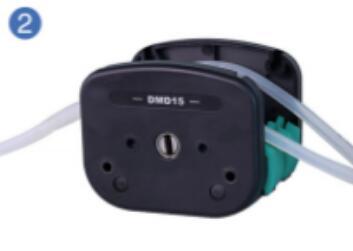

Place the "Y" shaped tube naturally on the rollers.

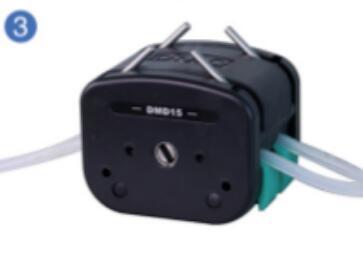

Press the lever upwards, the clamp is pressed into place, the tube clamp reliably clamps the tube, and the tube installation is complete.
Control Circuit
◆ BCD coded switch 15-speed adjustment
◆ The BCD coded switch is set to "0" for external signal control.
◆ Terminals 1 and 2 are external signal input terminals, 1 is positive, and 2 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, RS485 communication control, any one can be selected.
◆ Terminals 3 and 5 control the start and stop. When floating or disconnected, the pump runs; when closed, the pump stops.
◆ Terminals 4 and 5 are for direction control. When floating or disconnected, the pump runs clockwise; when closed, the pump runs counterclockwise.
◆ 6 and 7 are the power input terminals, 7 is positive, and 6 is negative. It is recommended to use DC24V.
Technical Parameters
Applicable Pump Head DMD15 Start/Stop Control It can control start and stop. Direction Control Reversible in both directions Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, one of which can be selected. 0-10KHz is standard. S100-2B+YZ15(25) Internal Speed Range 1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm, customizable S300-2B+YZ15(25) Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm, customizable S600-2B+YZ15(25) Internal Speed Range 1-600rpm, 15-speed adjustment, standard configuration is 40,80,120,160,200,240,280,320,360,400,440,480,520,560,600rpm, customizable External Speed Range 0-100rpm, speed resolution 0.1rpm; ≥100rpm, speed resolution 1rpm, full-range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, any one can be selected. Speed Error ≤±0.5% Adaptable Tubing 13#,14#,19#,16#,25#,17# Start/Stop Control Start/Stop Control: Switch quantity control contact normally open, peristaltic pump runs; contact closed (port 3 and port 5 shorted), peristaltic pump stops. Direction Control Direction Control: Switch quantity control contact normally open, peristaltic pump runs clockwise; contact normally closed (port 4 and port 5 shorted), peristaltic pump runs counterclockwise. Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Operating Environment 0-40℃, relative humidity: <80% Weight 2000g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
S100-2B+DMD15
3
1
2*13#
1-100
0.13-12.65
2*14#
0.49-49.4
2*19#
0.95-97.04
2*16#
1.6-178.08
2*25#
3.4-380.9
2*17#
5.5-565.7
S300-2B+DMD15
3
1
2*13#
1-300
0.13-36
2*14#
0.49-144.04
2*19#
0.95-158.31
2*16#
1.6-501.58
2*25#
3.4-1038.8
2*17#
5.5-1746.38
S600-2B+DMD15
3
1
2*13#
1-600
0.13-49.6
2*14#
0.49-266.45
2*19#
0.95-564.98
2*16#
1.6-941
2*25#
3.4-1371
2*17#
5.5-3296

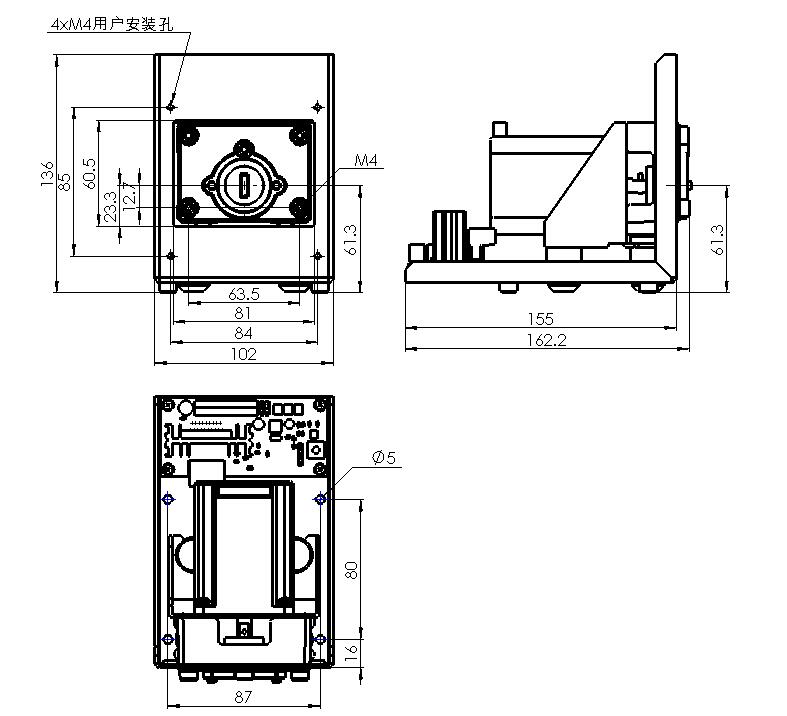

Dimensions
