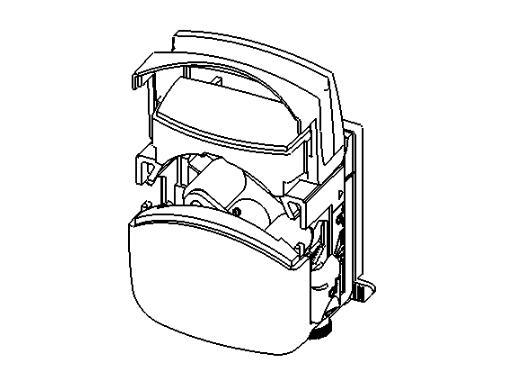

Push up the pressure block, the pressure block flips up
S100(300，600)-2B+313D
Flow range: 0.07-2400mL/min. Flip-top pump head, small size, easy and reliable operation.
Category:
- Product Description
S100(300，600)-2B+313D
-
- Commodity name: S100(300，600)-2B+313D
Flow range: 0.07-2400mL/min. Flip-top pump head, small size, easy and reliable operation.
Product Introduction
◆ Flow Range: 0.07-2400mL/min
◆ Flip-top pump head, compact size, convenient and reliable operation
◆ Stepper motor drive, integrated structure◆ 15-speed BCD DIP switch speed control, or external control signal speed control
◆ Switch quantity control start and stop, switch quantity control forward and reverse rotation
◆ Flow accuracy up to ±1%
◆ DC 24V power supply

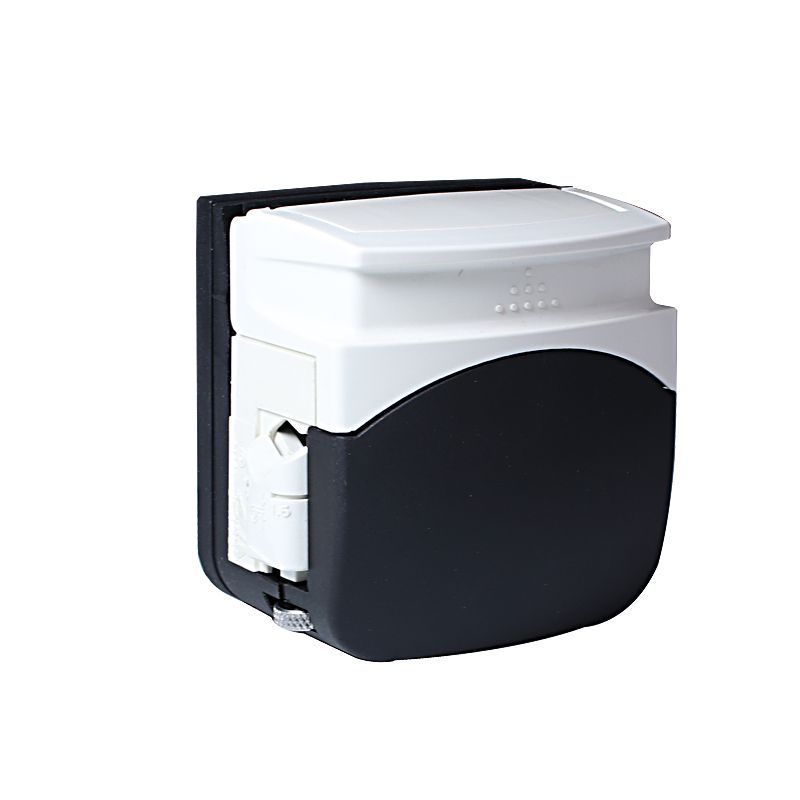

Peristaltic pump head
Tube Installation

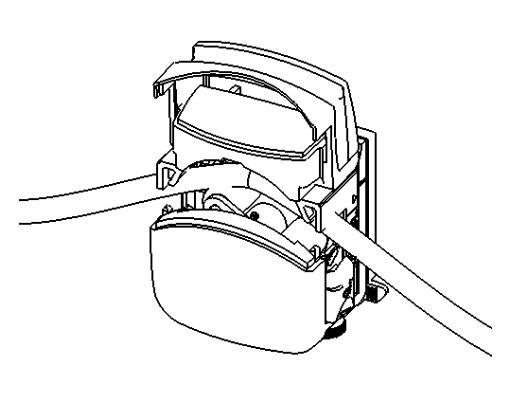

Insert the tube, ensuring the tube is in the middle of the roller

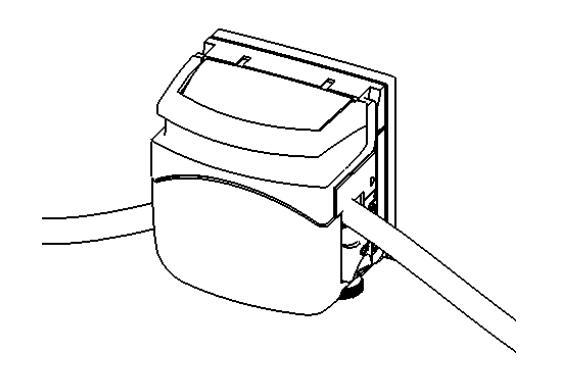

Flip down the pressure block, the pressure block moves down, clamps the tube, adjusts the handwheels on both sides, and fixes the tube

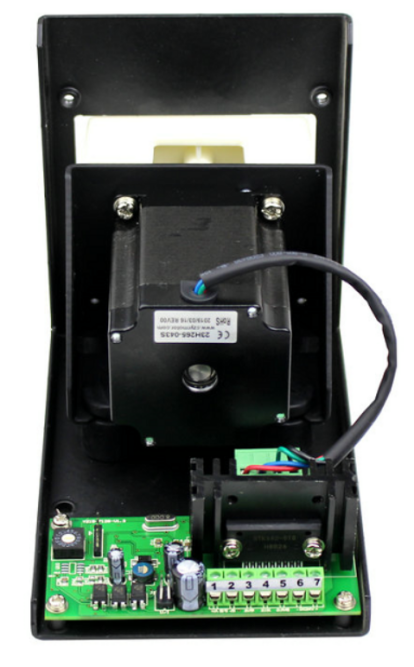

Control Circuit
◆ BCD coded switch 15-speed adjustment
◆ The BCD coded switch is set to "0" for external signal control
◆ 1, 2 terminals are external signal input terminals, 1 is positive, 2 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, RS485 communication control, any one can be selected.
◆ 3, 5 terminals control start and stop, suspended or disconnected, pump runs; closed, pump stops
◆ 4 and 5 terminals are direction control, suspended or disconnected, the pump runs clockwise; closed, the pump runs counterclockwise
◆ 6, 7 are the power input terminals, 7 is positive, 6 is negative, DC24V is recommended
Technical Parameters
Product Model S100(300，600)-2B+313D Start/Stop Control Can control start and stop Direction Control Reversible in both directions Internal Speed Control BCD DIP switch adjustment External Speed Control 0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, one of them can be selected. 0-10KHz is standard. S100-2B+YZ15(25) Internal Speed Range 1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm, customizable S300-2B+YZ15(25) Internal Speed Range 1-300rpm, 15-speed adjustment, standard configuration is 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm, customizable S600-2B+YZ15(25) Internal Speed Range 1-600rpm, 15-speed adjustment, standard configuration is 40,80,120,160,200,240,280,320,360,400,440,480,520,560,600rpm, customizable External Speed Range 0-100rpm, speed resolution 0.1rpm; ≥100rpm, speed resolution 1rpm, full range linear correspondence Communication Control RS485 communication control, using Modbus communication protocol, communication control and other external control cannot coexist, one of them can be selected. Speed Error ≤±0.5% Adaptable Tubing 13#,14#,19#,16#,25#,17#,18#, Start/Stop Control Start/Stop Control Switch quantity control Normally open contact, peristaltic pump runs; contact closed (port 3 and port 5 shorted), peristaltic pump stops Direction Control Direction Control Switch quantity control Normally open contact, peristaltic pump runs clockwise; Normally closed contact (port 4 and port 5 shorted), peristaltic pump runs counterclockwise Applicable Power Supply 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50/60Hz Working Environment 0-40℃, Relative Humidity: <80% Weight 2000g Selection Guide
Product Model
Number of Pump Head Rollers
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
S100-2B+313D
3
1，2
13#
≤100
≤7.4
14#
≤32.8
19#
≤58.6
16#
≤97
25#
≤228
17#
≤378
18#
≤480
S300-2B+313D
3
1，2
13#
≤300
≤22.3
14#
≤98.0
19#
≤174.3
16#
≤297.4
25#
≤704.1
17#
≤1143
18#
≤1572
S600-2B+313D
3
1，2
13#
≤600
≤43.6
14#
≤197.5
19#
≤291.5
16#
≤595.1
25#
≤1347.5
17#
≤2064
18#
≤2444

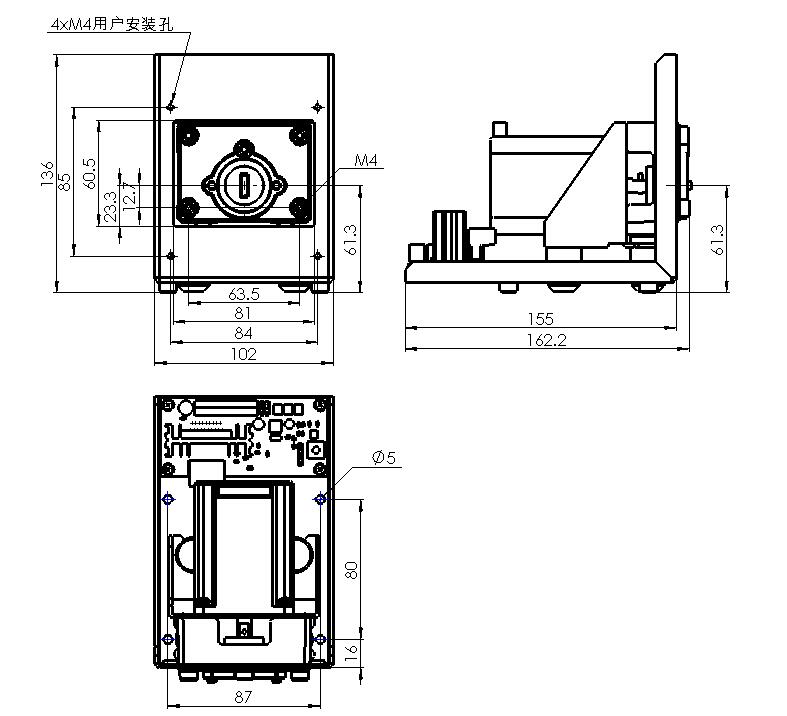

Dimensions
