Turn the lever counterclockwise by 180°, lift the pressure block
S-2B+YZ35
Flow rate range: ≤12000mL/min, suitable for use with matching equipment, high-precision liquid transfer and filling
Category:
- Product Description

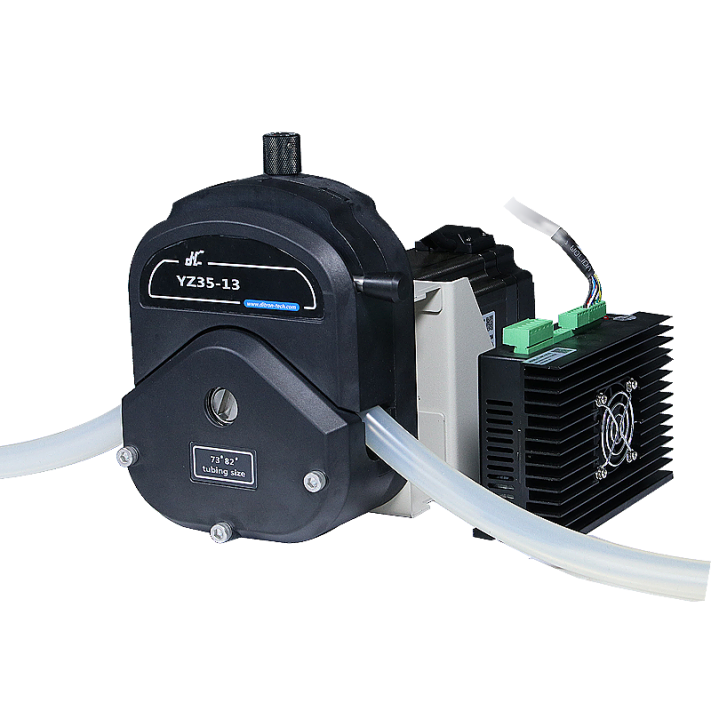

S-2B+YZ35
-
- Commodity name: S-2B+YZ35
Flow rate range: ≤12000mL/min, suitable for use with matching equipment, high-precision liquid transfer and filling
Product Introduction
◆ Suitable for use with matching equipment, high-precision liquid transfer and filling
◆ Applicable flow range: ≤12000mL/min
◆ Stepper motor drive, optional driver◆ High power, high precision
◆ Flow accuracy up to ±2%
◆ DC24V-80V power supply, DC60V recommended
◆ Connect two pump heads in series, dual-channel simultaneous liquid transfer

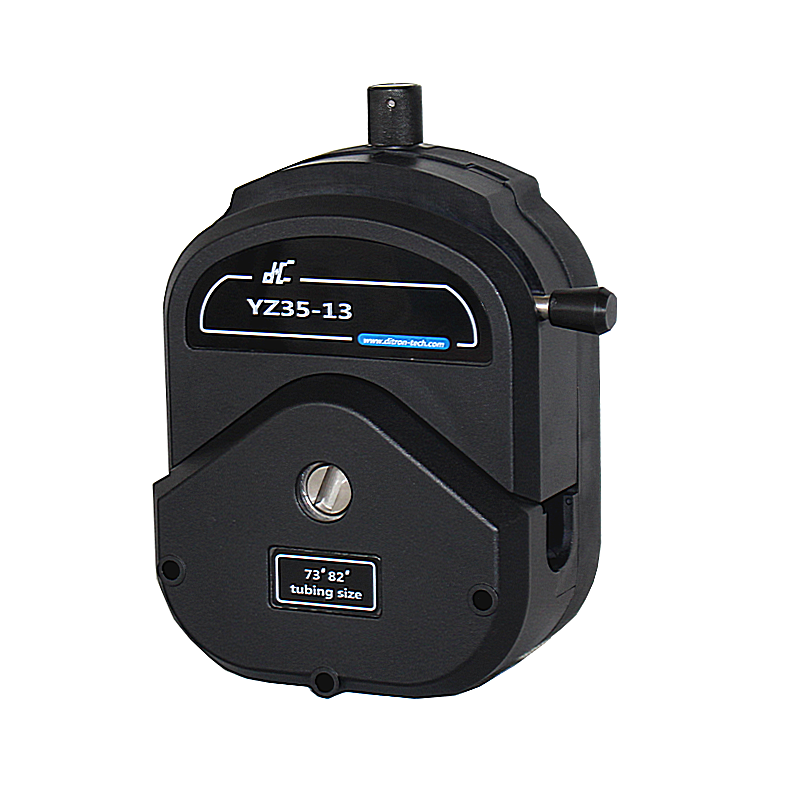

Peristaltic pump head
Tube Installation

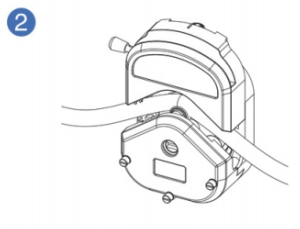

Place the tube naturally between the roller and the upper pressure block

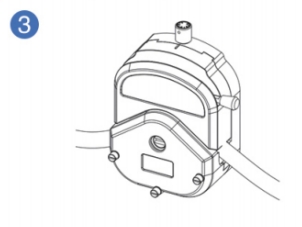

Turn the lever clockwise by 180°, press the pressure block into place, and complete the tube installation
Driver
◆ Driver output current 2.4A-7.2A
◆ Input voltage DC24V-80V
◆ Stepper pulse frequency 0-200KHz
◆ Division, output current can be set
Technical Parameters
Product Introduction S-2B Applicable Pump Head
YZ35
Speed Range
1-600rpm
Flow Range
≤12000mL/min
Adaptable Tube
73#,82#
Driver Applicable Power Supply
DC24V-80V
Working Environment
0-40℃, relative humidity: <80%
Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tube
Speed Range (RPM)
Flow Range (mL/min)
S-2B
YZ35
3
1,2
73#
1-600
12-7870
82#
17.5-12000

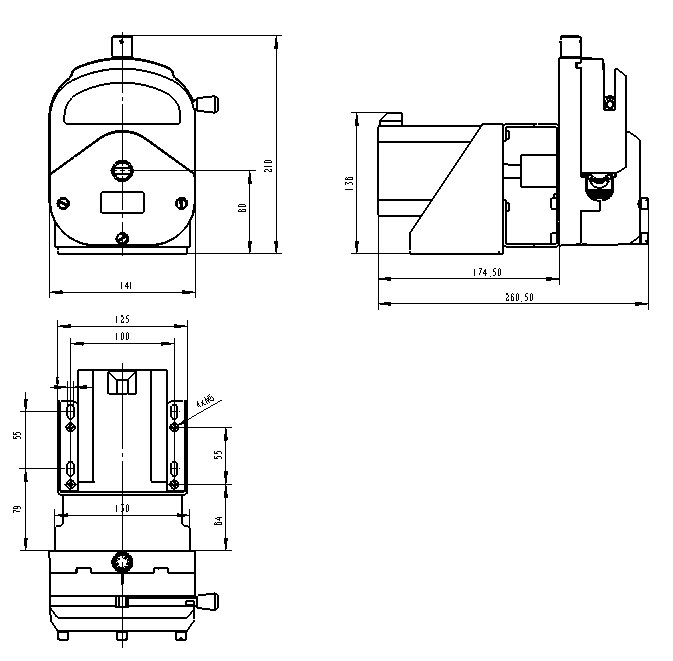

Dimensions
