Turn the lever counterclockwise 180° and remove the pressure block
S-2B+KZ25
Flow rate range: 3.5-6000mL/min, suitable for matching equipment, high-precision liquid transfer and filling
Category:
- Product Description
S-2B+KZ25
-
- Commodity name: S-2B+KZ25
Flow rate range: 3.5-6000mL/min, suitable for matching equipment, high-precision liquid transfer and filling
Product Introduction
◆ Suitable for use with matching equipment, high-precision liquid transfer and filling
◆ Applicable flow range: 3.5-6000mL/min
◆ Stepper motor drive, optional driver◆ High power, high precision
◆ Flow accuracy up to ±2%
◆ DC24V-80V power supply, DC60V recommended
◆ Two pump heads in series, dual-channel simultaneous liquid transfer

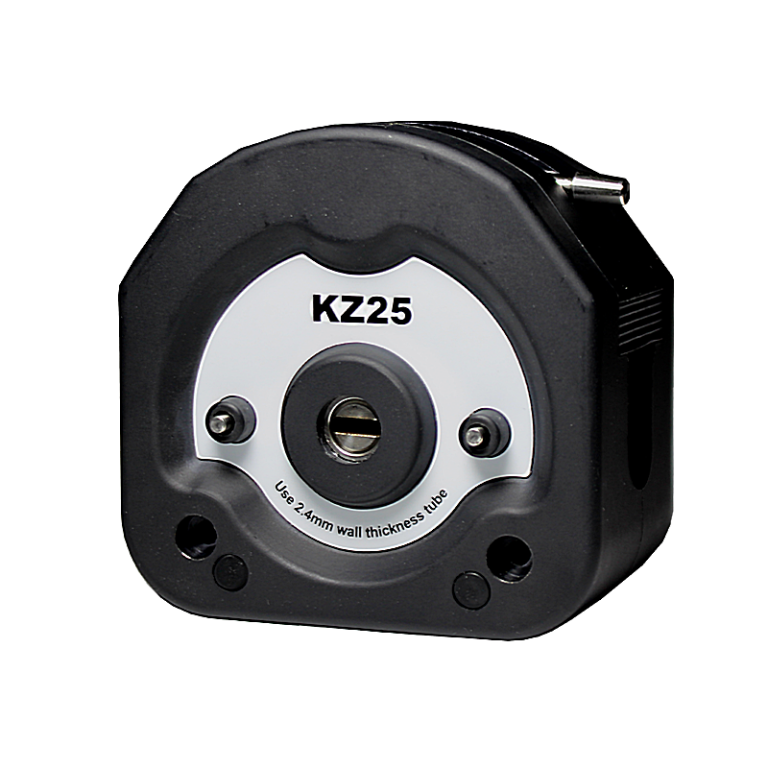

Peristaltic Pump Head

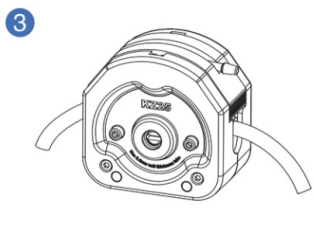

Tube Installation
Place the tube naturally on the V-shaped groove of the roller and the end clamps
Hold the pressure block, flip the lever, tighten the pressure block, and complete the tube installation
Driver
◆ Driver output current 2.4A-7.2A
◆ Input power supply voltage DC24V-80V
◆ Stepper pulse frequency 0-200KHz
◆ Subdivision, output current can be set
Technical Parameters
Product Model S-2B Applicable Pump Head
KZ25
Speed Range
1-600rpm
Flow Range
≤6000mL/min
Adaptable Tubing
15#, 24#, 35#, 36#
Driver Applicable Power Supply
DC24V-80V
Working Environment
0-40℃, Relative Humidity: <80%
Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tubing
Speed Range (RPM)
Flow Range (mL/min)
S-2B
KZ25
3
1, 2
15#
1-600
3.5-1841
24#
5.8-3208
35#
8.1-4540
36#
10-6000

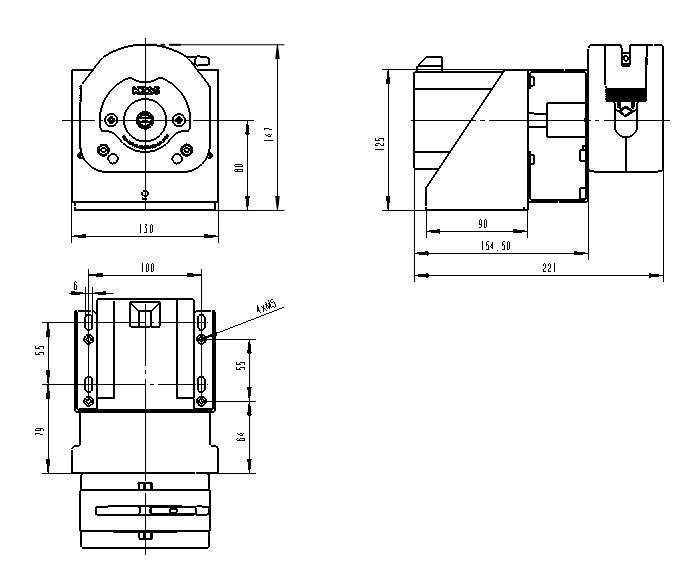

Dimensions
