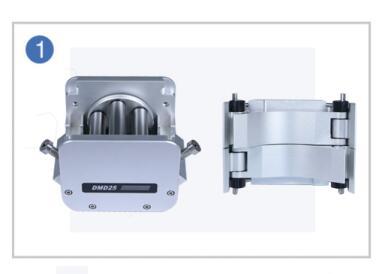

Lift up the left and right levers to remove the pressure block
S-2B+DMD25
Flow range: 0.042-4170mL/min Suitable for use with matching equipment, high-precision liquid transfer and filling
Category:
- Product Description

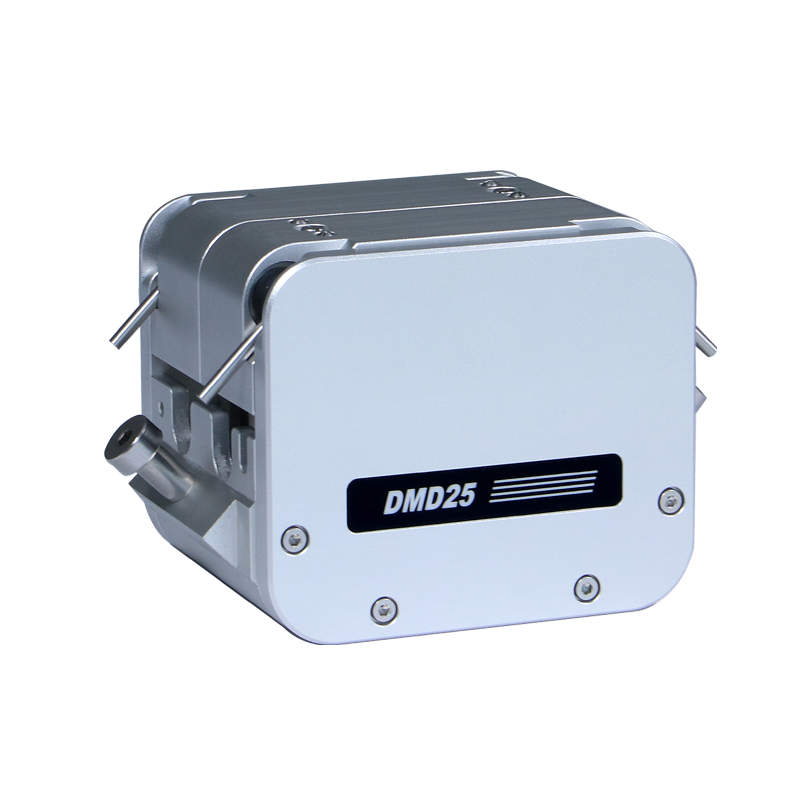

S-2B+DMD25
-
- Commodity name: S-2B+DMD25
Flow range: 0.042-4170mL/min Suitable for use with matching equipment, high-precision liquid transfer and filling
Product Introduction
◆ Suitable for use with matching equipment, high-precision liquid transfer and filling
◆ Flow rate: 0.042-4170mL/min
◆ Applicable speed: 0.1-350rpm
◆ Dual-pressure block design with phase difference, phase compensation, low pulsation, high precision, filling accuracy up to ±0.5%
◆ Elastic squeezed hose, hose life increased by more than 1 time
◆ Aviation aluminum alloy pump body, 304 stainless steel roller
Peristaltic pump head

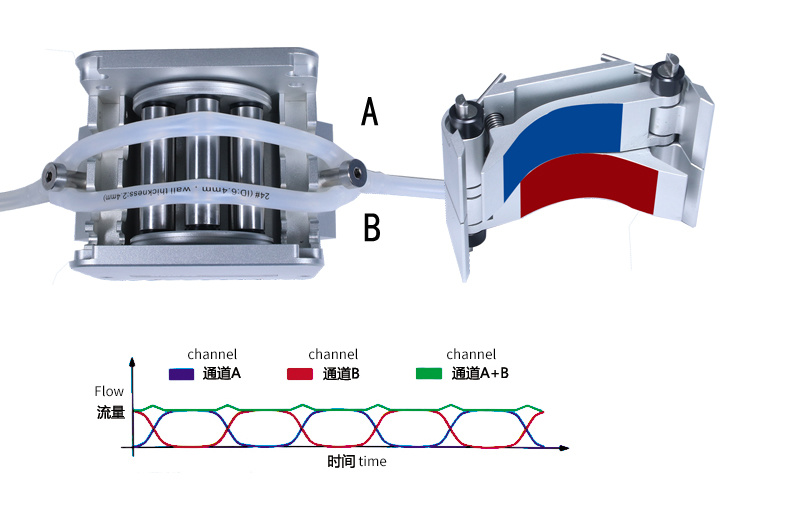

Phase Compensation Principle
◆ The front and rear pressure blocks are installed in a misaligned manner for phase compensation
◆ Two-way pipe inlet and outlet are connected with three-way connectors respectively, and two-way liquid mutual compensation
◆ Liquid pulsation is greatly reduced, flow accuracy is above ±0.5%
Hose Installation

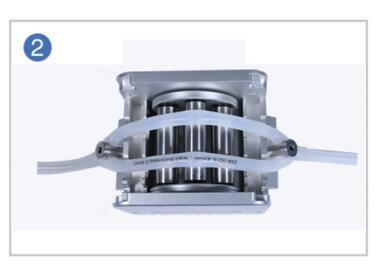

Place the "Y" shaped hose naturally on the roller

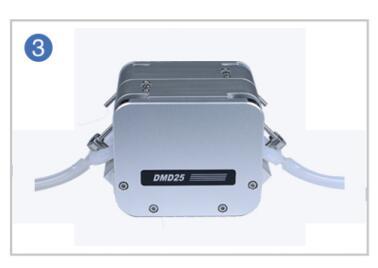

Press down the lever, the pressure block is pressed into place, the hose clamp reliably clamps the hose, and the hose installation is complete
Driver
◆ Driver output current 2.4A-7.2A
◆ Input power supply voltage DC24V-80V
◆ Stepper pulse frequency 0-200KHz
◆ Fine division and output current can be set
Technical Parameters
Product Model S-2B Applicable pump head
DMD25
Speed range
0.1-350rpm
Flow range
0.042-4170mL/min
Adaptable hose
1.6x2.4, 3.2x2.4, 15#, 24#, 35#, 36#
Driver applicable power supply
DC24V-80V
Working environment
0-40℃, relative humidity: <80%
Selection Guide
Driver
Applicable pump head
Number of pump head rollers
Optional number of pump heads
Hose
Speed range (RPM)
Flow range (mL/min)
S-2B
DMD25
3
1
1.6x2.4
0.1-350
0.042-150
3.2x2.4
0.23-800
15#
0.43-1500
24#
0.7-2400
35#
0.85-2950
36#
1.2-4170

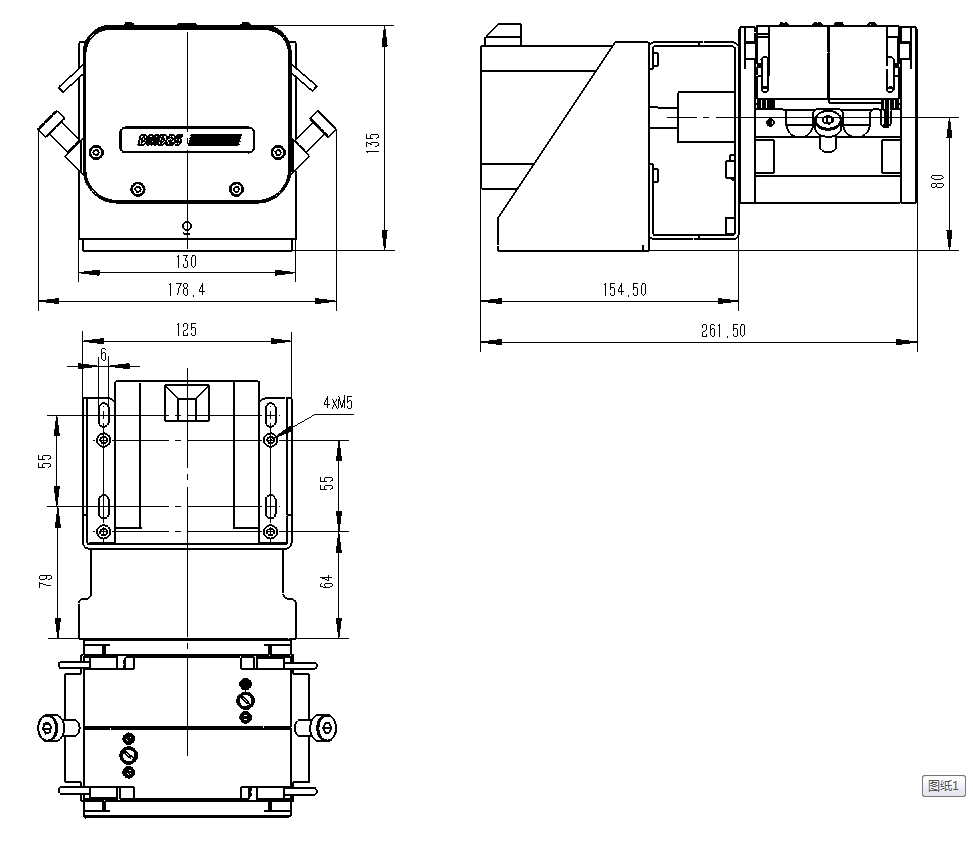

Dimensions
