S-1B+TH10
Category:
- Product Description
S-1B+TH10
-
- Commodity name: S-1B+TH10
Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery
Product Introduction
◆ Flow range: 0.006-41mL/min, suitable for micro-flow high-precision liquid delivery
◆ Pump heads are available in 4-roller and 8-roller options. 4-roller pump heads have a slightly larger flow rate, while 8-roller pump heads have lower pulsation.
◆ Stepper motor driven
Technical Parameters
Product Model S-1B Applicable Pump Head TH10A (4-roller) TH10B (8-roller) Motor 2-phase 42 stepper motor, phase current 0.8A Adaptable Tubing 0.6×1，1×1,2×1，2.4×0.8，3×1，0.38×0.86，0.76×0.86，1.02×0.86，1.6×0.8，2.06×0.86，2.79×0.86，3.17×0.86，3.2×0.8 Working Environment 0-40℃, Relative Humidity: <80% Weight 540g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Tubing
Speed Range (RPM)
Flow Range (mL/min)
Recommended Selection
S-1B+TH10A
4
1
0.6×1
≤100
0.0027-2.7
High-precision micro-flow
Liquid delivery, slightly larger flow rate
1×1
0.0059-6.28
2×1
0.020-20.12
3×1
0.038-37.47
S-1B+TH10B
8
1
0.6×1
≤100
0.0017-1.7
Suitable for lower volume, high-precision transfer, lower pulsation
1×1
0.0044-4.22
2×1
0.014-13.04
3×1
0.023-21.41
◆ Note: The flow rate values in the table are measured data for silicone tubing. Various imported tubings are also available.

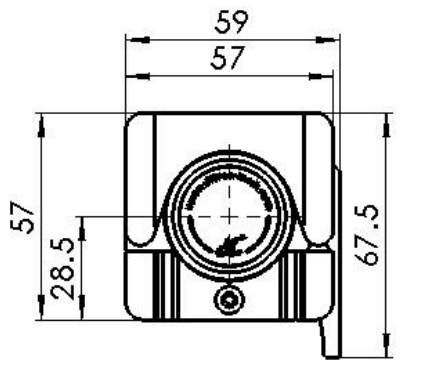

Dimensions
