G-1J+TH15 AC synchronous motor
Flow range: ≤178.1mL/min; AC synchronous motor drive, fixed speed
Category:
- Product Description
G-1J+TH15 AC synchronous motor
-
- Commodity name: G-1J+TH15 AC synchronous motor
Flow range: ≤178.1mL/min; AC synchronous motor drive, fixed speed
Product Introduction
◆ Flow Range: ≤178.1mL/min
◆ AC Synchronous Motor Drive
◆ Fixed speed, multiple speeds optional, spring pump head, long hose life
◆ 220V AC power supply
Technical Parameters
Product Model G-1J+TH15 Applicable Pump Head TH15A (tube clamp structure), TH15B (tube connector structure) Speed Control Fixed Speed Multiple Speeds Optional 5rpm, 10rpm, 15rpm, 20rpm, 25rpm, 30rpm, 40rpm, 50rpm, 60rpm, 80rpm, 110rpm Adaptable Hose 13#, 14#, 19#, 16#, 25# Applicable Power Supply AC220V Working Environment 0-40℃, Relative Humidity: <80% Weight 700g Selection Guide
Product Model
Pump Head Roller Number
Optional Channels
Hose
Speed Range (RPM)
Flow Range (mL/min)
Recommended Selection
G-1J+TH15A
2
1
13#
≤110
≤7.30
High Precision
Liquid Transfer, Slightly Larger Flow Rate
14#
≤27.30
19#
≤50.88
16#
≤84.26
25#
≤178.1

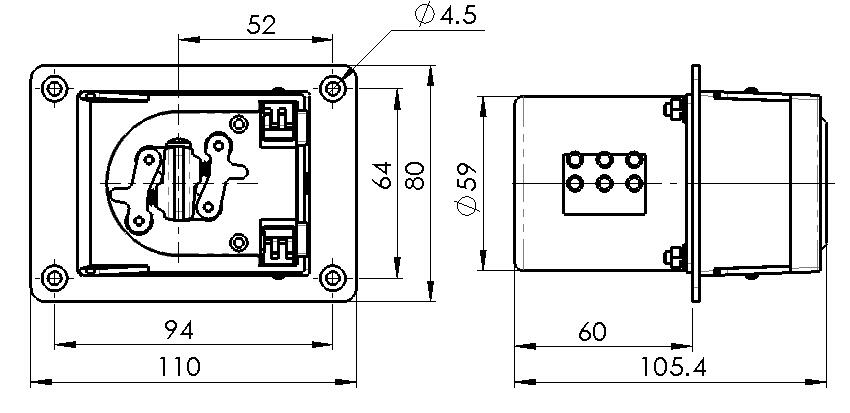

Dimensions
