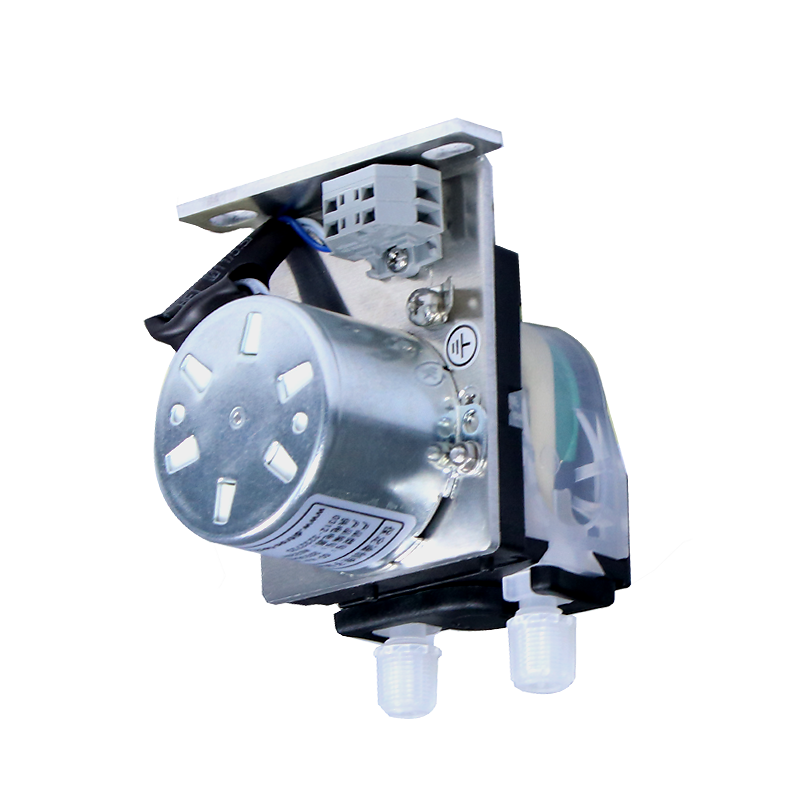

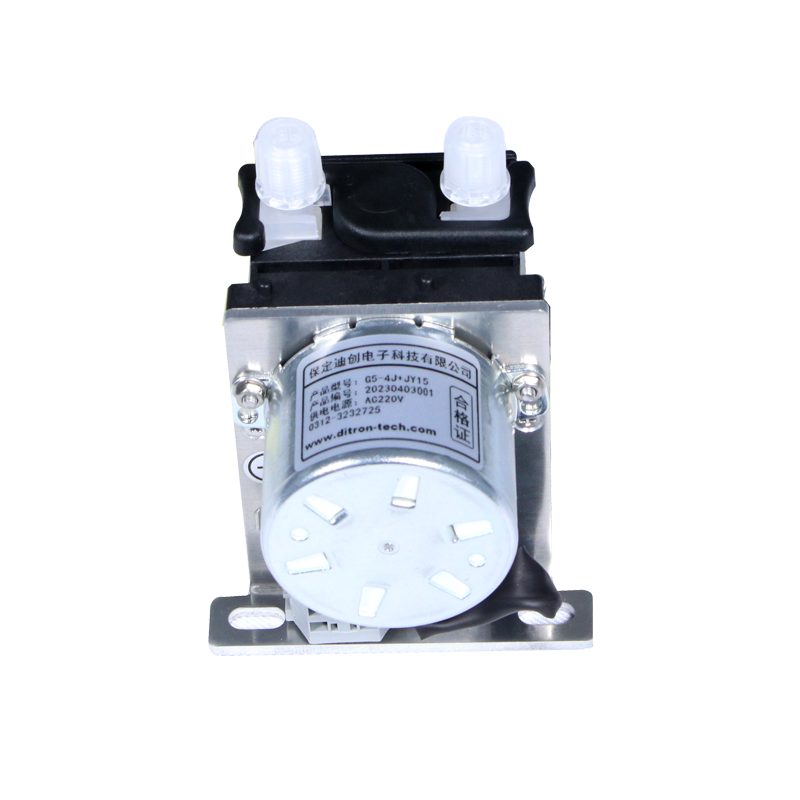

G-4J+JY15
CEMS dedicated online flue gas monitoring; AC synchronous motor drive, fixed speed
Category:
- Product Description
G-4J+JY15
-
- Commodity name: G-4J+JY15
CEMS dedicated online flue gas monitoring; AC synchronous motor drive, fixed speed
Product Introduction
◆ For CEMS (Continuous Emission Monitoring System)
◆ AC Synchronous Motor Drive
◆ Fixed speed, 5 and 10 rpm optional, spring pump head, long hose life
◆ 220V AC power supply
Technical Parameters
Product Model G5-4J+JY15 G10-4J+JY15 Speed 5rpm 10rpm Flow Rate 5mL/min 10mL/min Suction Pressure 200mBar Outlet Pressure 2Bar Pipe Connection DN4/6 Fluid Path Material PVDF, Norprene Dimensions 113*90*81mm Applicable Power Supply AC220V 50Hz Operating Environment 0-45℃, Relative Humidity: <80% Weight 600g Product Details
◆ AC synchronous reduction motor, suitable for 24-hour continuous operation
◆ Elastic extrusion hose, long hose life, easy for users to install and replace hoses quickly and easily
