313D

Flow range: 0.007-2400mL/min, flip-top design, hand wheel and spring-loaded hose fixing method.

Category:

    313D

    • Product Description
    • Commodity name: 313D

    Flow range: 0.007-2400mL/min, flip-top design, hand wheel and spring-loaded hose fixing method.

    Product Introduction

    ◆ Flow Range: 0.007-2400mL/min

    ◆ Flip-top design, small size, convenient and reliable operation
    ◆ Snap-on design for easy pump head disassembly

    ◆ Handwheel and spring type hose fixing method

    Selection Guide

    Pump Head Model Housing Material Roller Material Number of Pump Head Rollers Applicable Hose Applicable Speed (RPM) Reference Flow Rate (mL/min) Weight (KG)
    313D IXEF Nylon + Molybdenum Disulfide 3 13#,14#,19#,16#25#,17#,18# ≤60024000.3

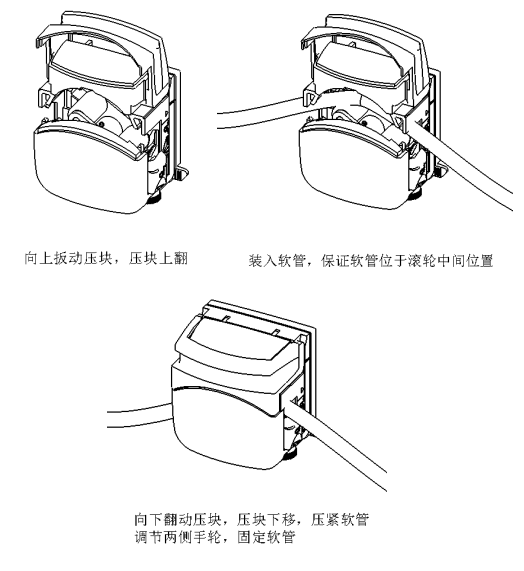

    Hose Installation

    Flow Rate Reference

    Speed Average Flow Rate ml/min
    rpm 13# 14# 19# 16# 25# 17# 18#
    100.7303.215.699.6022.3937.7249.12
    201.456.4911.5219.2945.0673.21102.21
    302.209.7117.2729.0066.42109.12154.17
    402.9812.9423.2038.5390.22146.13195.66
    503.6616.2229.0048.34112.73183.27246.00
    604.4220.0435.0758.28135.99227.75301.00
    705.1822.4940.9268.04157.75258.80359.00
    805.9626.2847.0478.77184.58294.86407.71
    906.7229.3152.9188.21207.30338.80451.57
    1007.4832.8058.6297.53228.08378.08510.00
    15011.2949.5490.21150.59348.94564.64800.00
    20015.0766.19118.61199.02470.92756.041055.00
    25018.8481.93148.25249.54585.95934.021270.00
    30022.3398.00174.30297.45704.151143.301572.00
    35025.16114.50199.74345.35846.121352.801907.78
    40029.96128.62226.31401.00947.801556.602139.17
    45033.95148.47248.61451.001072.121745.002243.00
    50037.57164.52264.06500.001171.651888.002340.00
    55040.73181.44273.06548.161347.502064.192444.00
    60043.66197.52291.50595.121470.322374.412529.00

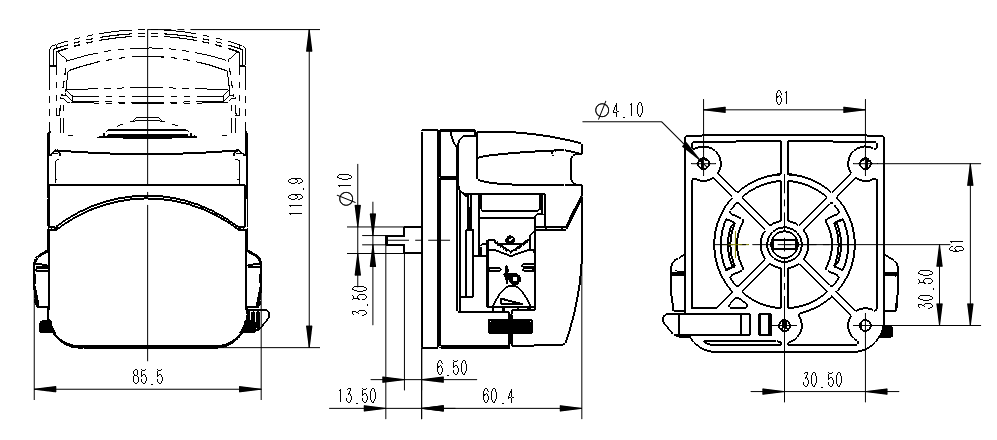

    Dimensions
