YZ35-13
Category:
- Product Description
YZ35-13
-
- Commodity name: YZ35-13
Flow range: 460-12000 mL/min. The gap between the pump and the tube can be finely adjusted via a knob, allowing for multiple pump head cascading.
Product Introduction
◆ Flow Range: 460-12000mL/min
◆ Fine-tuning of the tube gap is achieved via a knob
◆ Cascading use of multiple pump heads is possible
◆ Classic design, widely applicable
Selection Guide
Pump Head Model Housing Material Roller Material Number of Pump Head Rollers Applicable Tubing Applicable Speed (RPM) Flow Rate (mL/min) Weight (KG) YZ35-13 PPS 304 Stainless Steel 3 73# ≤600 ≤7800 2.0 82# ≤12000 ◆ Adjust the knob on top of the YZ35-13 pump head. Clockwise adjustment increases pump outlet pressure; counterclockwise adjustment improves tubing lifespan.
◆ The YZ35-13-PPS uses an imported Ticona PPS (polyphenylene sulfide) housing, resistant to most chemical reagents and corrosion-resistant.
Tubing Installation

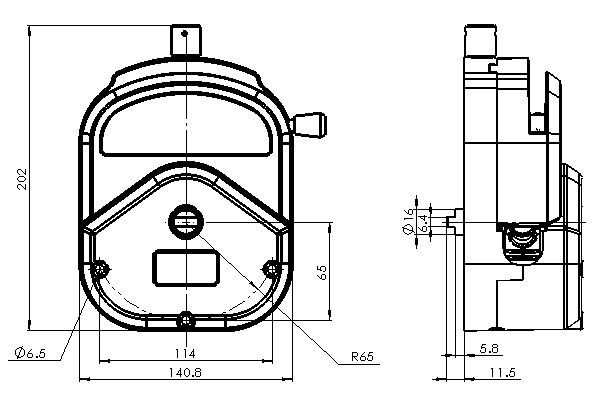

Dimensions
