DMD25
Category:
- Product Description
DMD25
-
- Commodity name: DMD25
Flow range: 0.042-4170mL/min, dual-pressure block design with phase difference, phase compensation, high precision with low pulsation
Product Introduction
◆ Flow range: 0.042-4170mL/min
◆ Applicable speed: 0.1-350rpm
◆ Dual-block design with phase difference, phase compensation, low pulsation, high precision, filling accuracy up to ±0.5%
◆ Elastic extrusion hose, hose life increased by more than 1 times
◆ Aviation aluminum alloy pump body, 304 stainless steel roller
◆ Suitable for high-precision liquid filling and liquid transfer

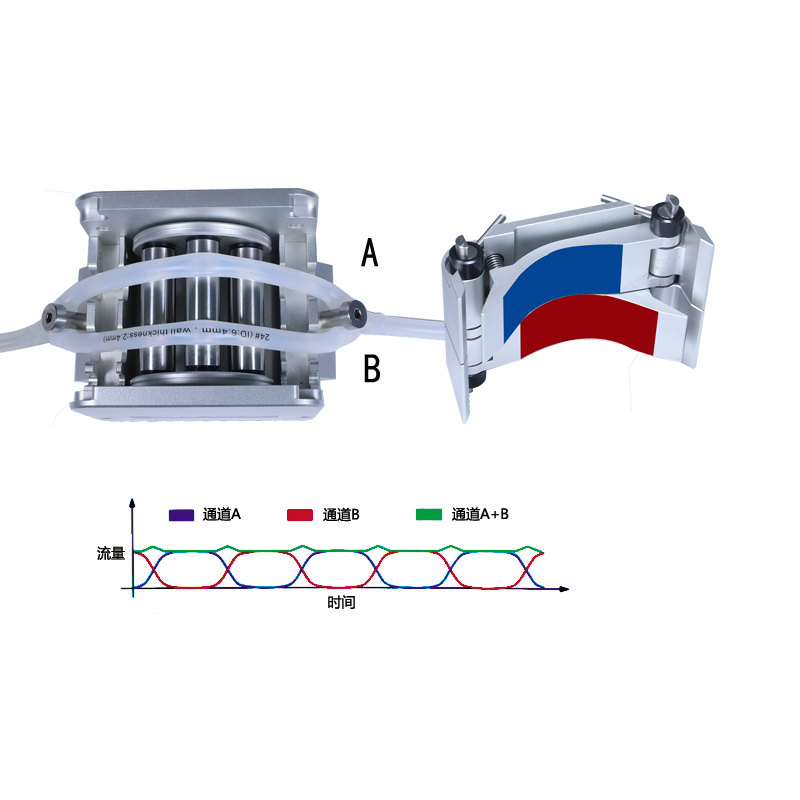

Phase Compensation Principle
◆ The front and rear pressure blocks are installed in a staggered manner for phase compensation.
◆ Two-way pipe inlet and outlet are connected with three-way connectors respectively, and two-pipe liquid mutually compensates.
◆ Liquid pulsation is significantly reduced, flow accuracy is ±0.5% or higher.

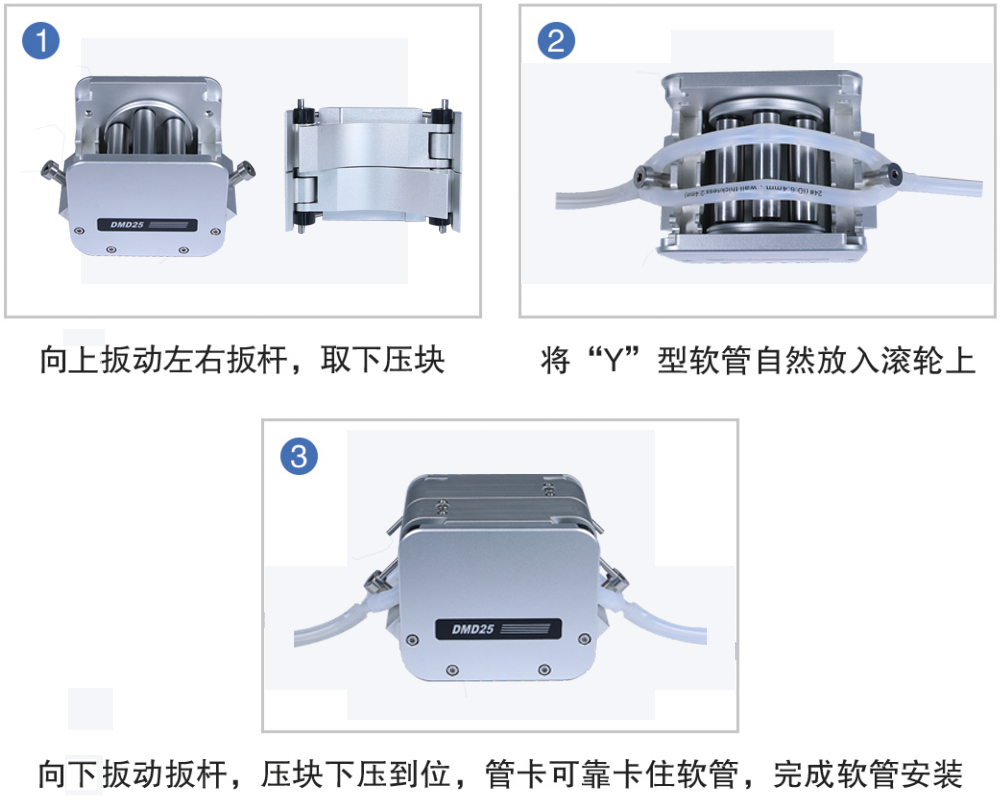

Hose Installation
Selection Guide
Pump Head Model Housing Material Roller Material Number of Pump Head Rollers Applicable Hose Applicable Speed (RPM) Reference Flow Rate (mL/min) Weight (KG) DMD25 6061 Aluminum Alloy 304
Stainless Steel

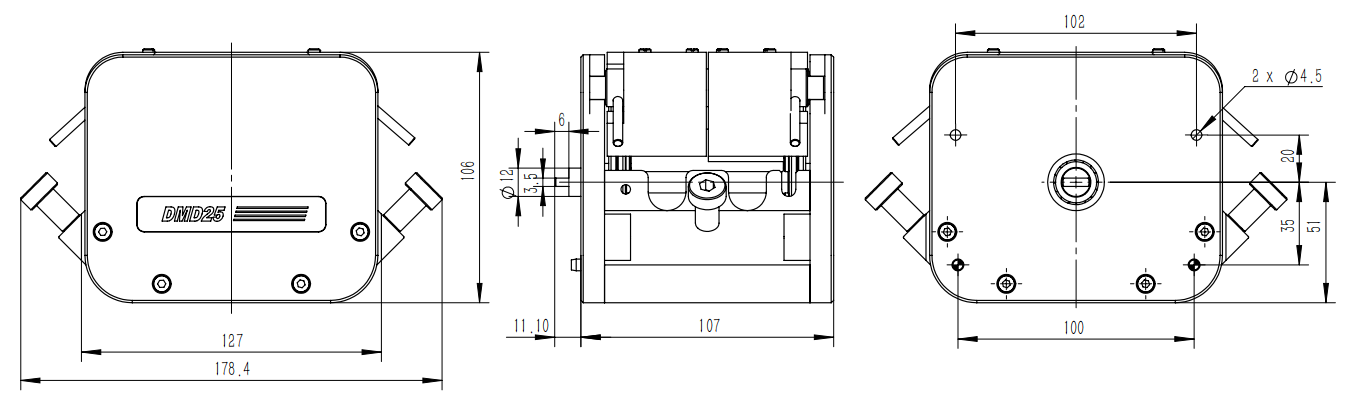

6 1.6×2.4 0.1-350 0.042-150 2.5 3.2×2.4 0.23-800 15# 0.43-1500 24# 0.7-2400 35# 0.85-2950 36# 1.2-4170 Dimensions
