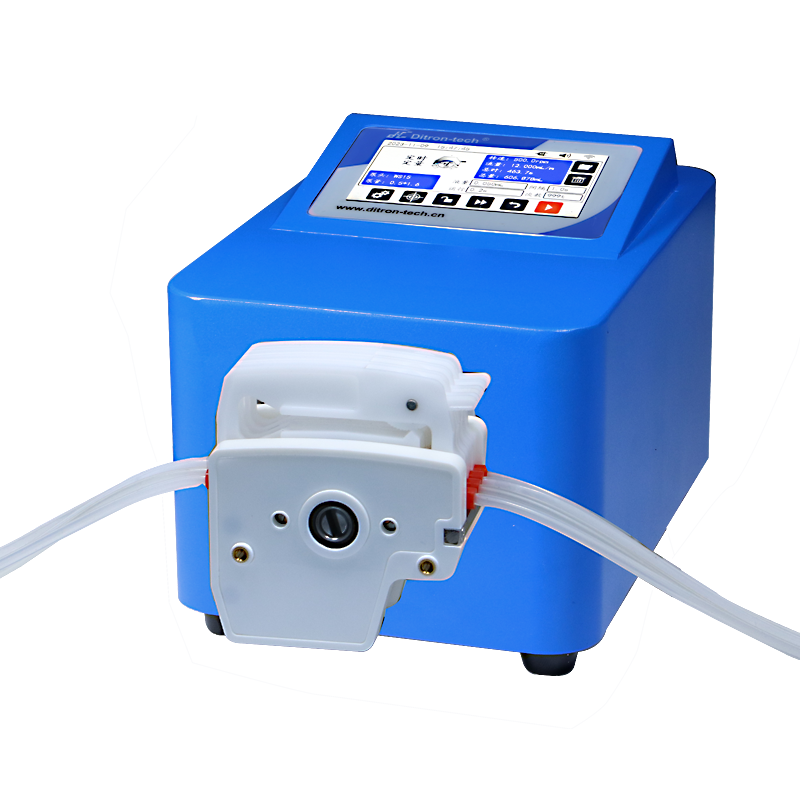

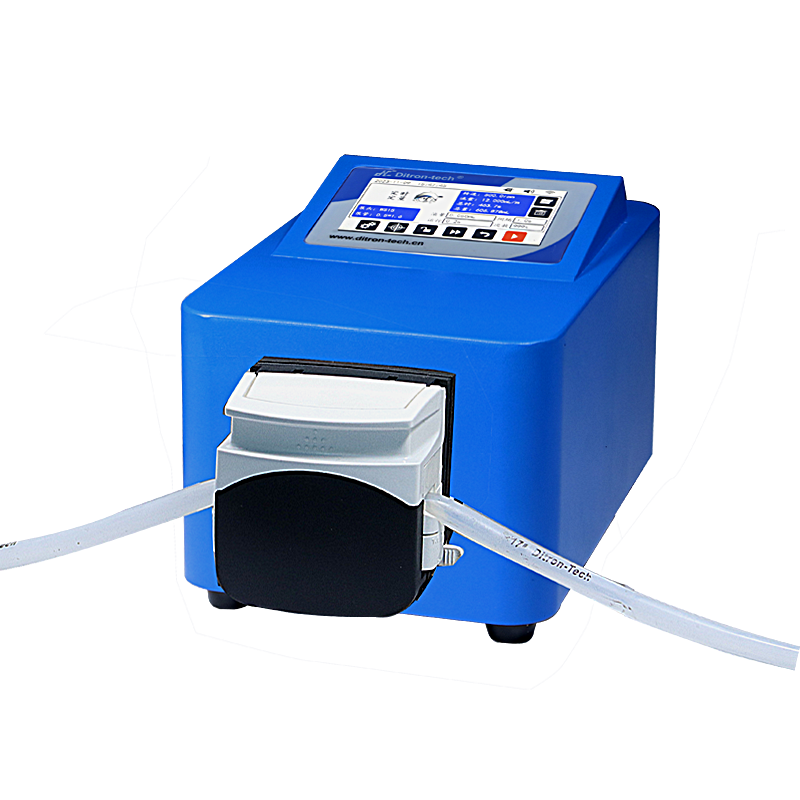

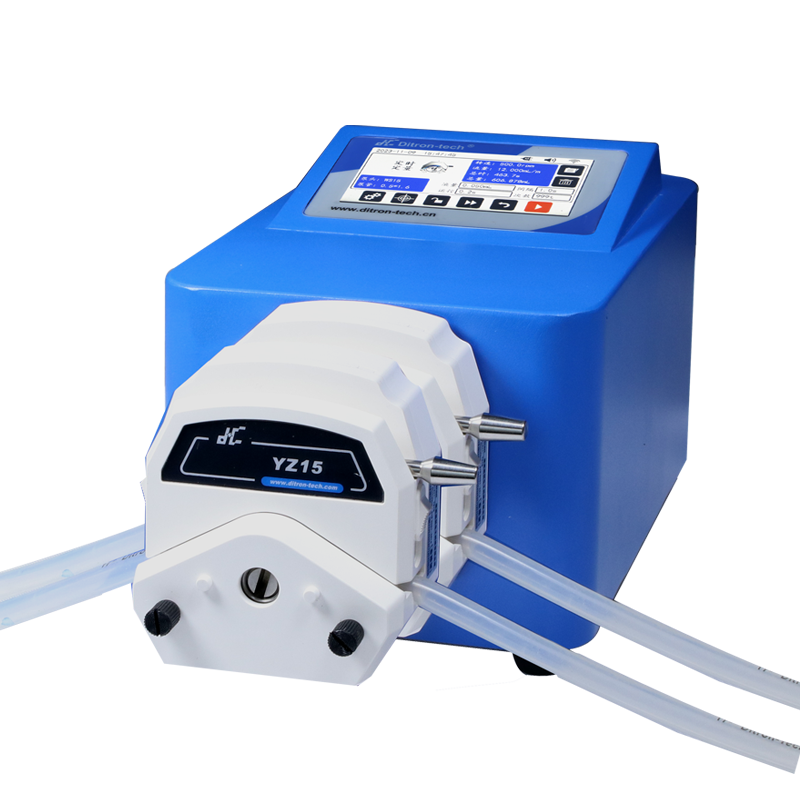

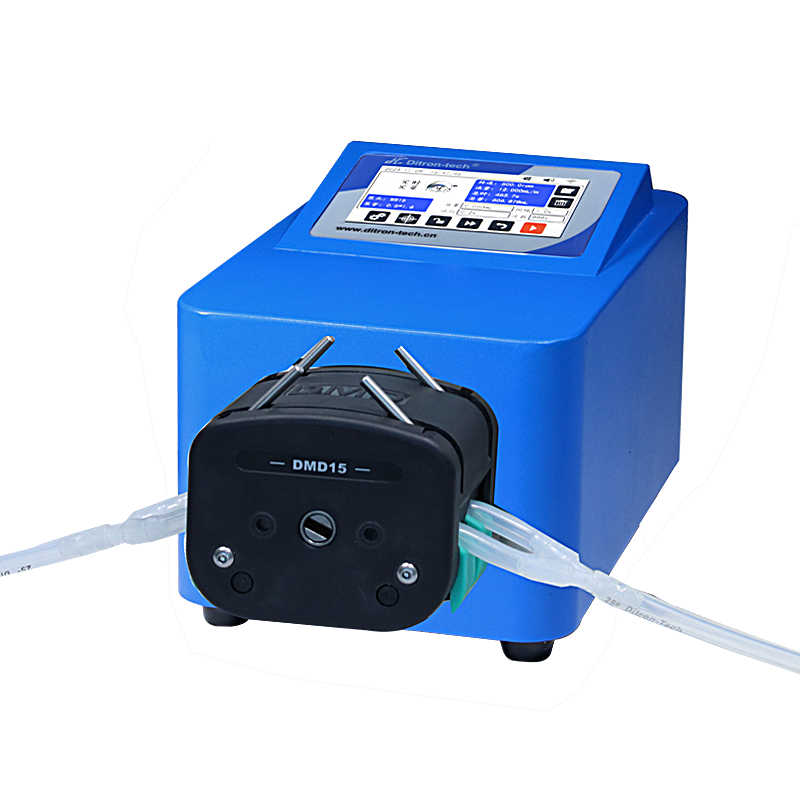

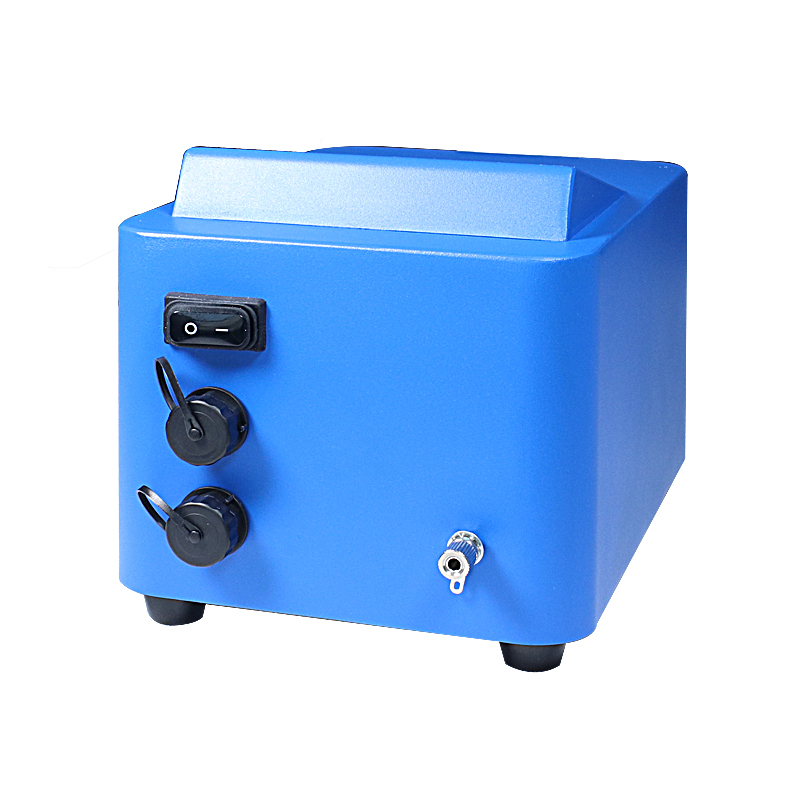

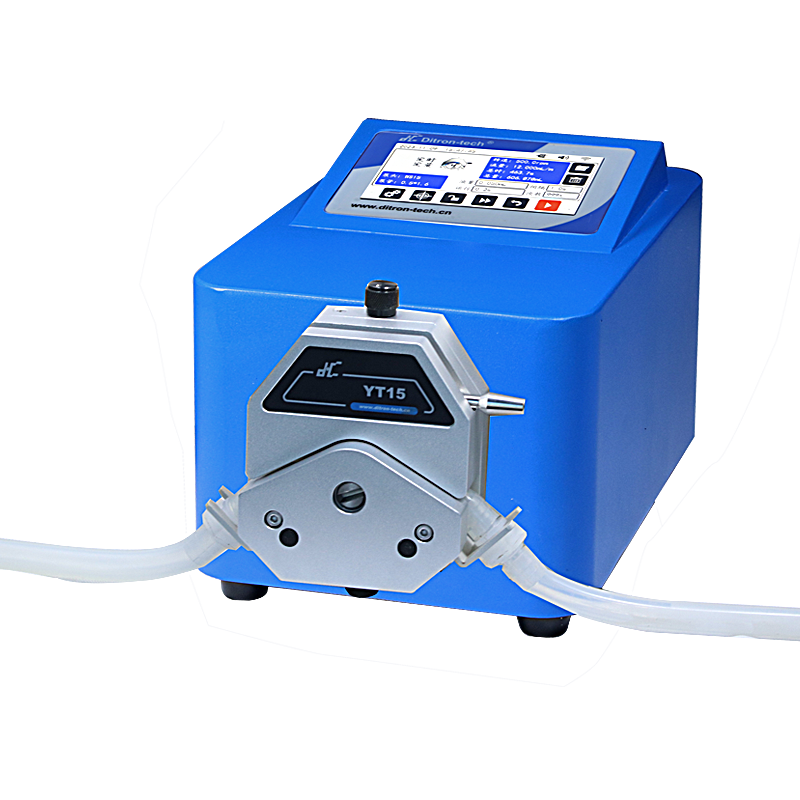

GF100B, GF300B, GF600B
-
- Commodity name: GF100B, GF300B, GF600B
Flow range: 0.013-3200mL/min, protection level IP55; 4 working modes: flow mode, timed speed, constant speed and volume, timed volume; industrial touch screen and film buttons can be operated synchronously, simple, convenient and fast;
“B” series intelligent allocation type high-protection peristaltic pump
YZ series
DG-A DG-B pump heads DMD15 pump head 313D pump head YT15 YT25 pump heads Product Introduction
◆ Protection level IP55, suitable for humid or dusty environments, high-precision liquid filling and transfer;
◆ Four working modes: flow mode, time-speed control, speed-volume control, and time-volume control;
◆ Industrial touch screen and film buttons for simultaneous operation, simple, convenient and fast;
◆ Suitable for high-precision liquid transfer of 0.005-3200mL/min and liquid filling of 0.05-200mL;
◆ Adaptable to various pump heads to meet different needs, including YZ15(25), DG series, DMD15, 313D, YT15(25) pump heads;
◆ Liquid volume accumulation, reservation filling, multiple schemes can be stored and easily called;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;
Typical Applications
◆ Liquid transfer and filling in dusty or humid environments
◆ Pharmaceutical, medicine filling and transfer
Control Panel

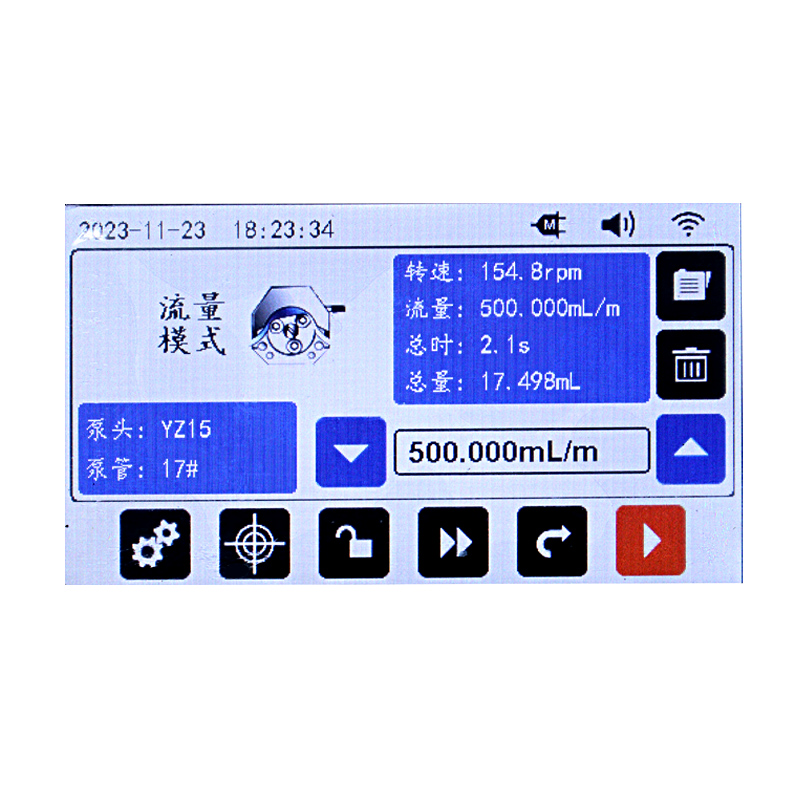

◆ Flow Mode
Set flow rate, flow acceleration, deceleration function,
Suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation function;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and call function

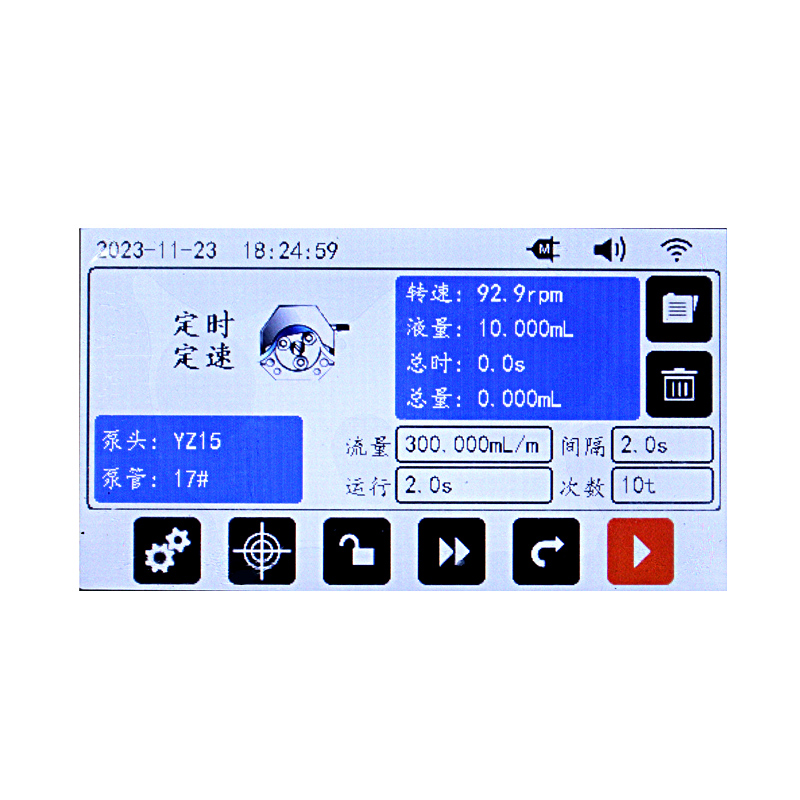

◆ Time-Speed Control Mode
Set flow rate, running time, interval time, number of runs,
Suitable for timed, constant-speed liquid transfer;
Total liquid volume accumulation and total running time accumulation function;
Flow calibration function, input the measured flow rate value to complete the flow calibration;
Scheme storage and call function

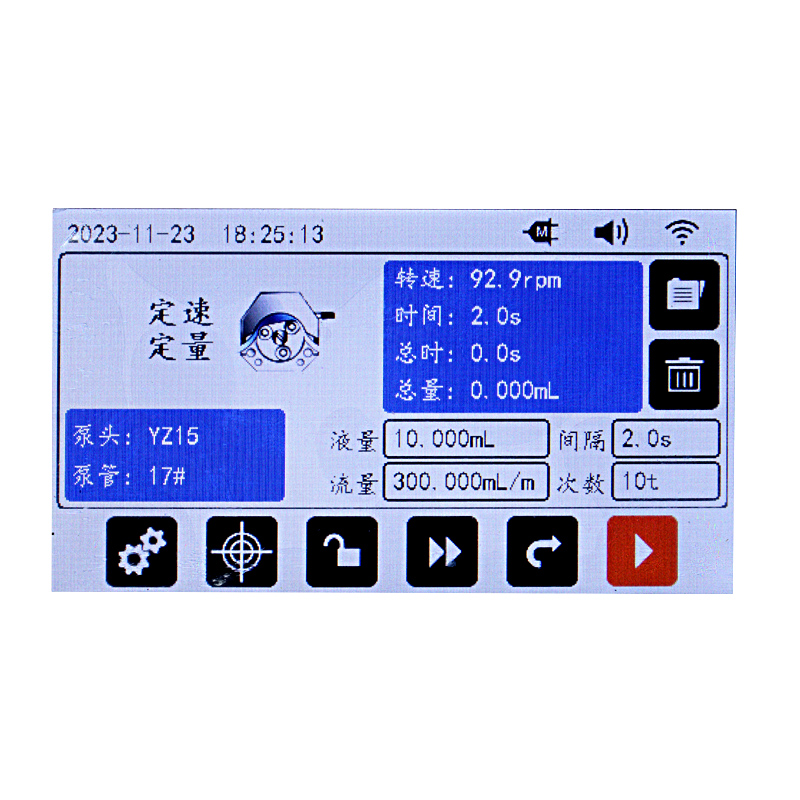

◆ Speed-Volume Control Mode
Input filling liquid volume, flow rate, interval time, number of runs, etc.,
Suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation function;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and call function

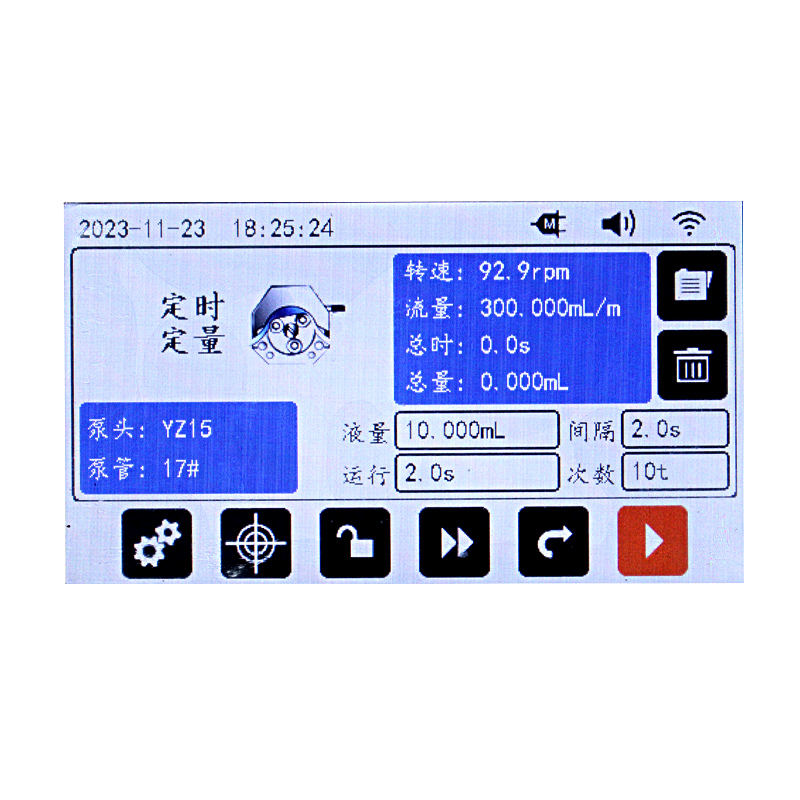

◆ Time-Volume Control Mode
Input filling liquid volume, running time, interval time, number of runs, etc.,
Suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation function;
Liquid volume calibration function, input the measured liquid volume value to complete the liquid volume calibration;
Scheme storage and call function

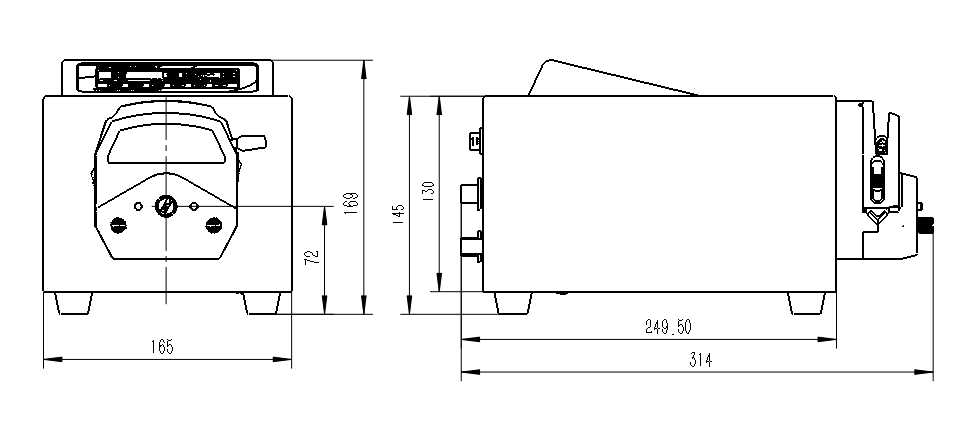

Technical Parameters
Driver Model GF100B GF300B GF600B Applicable Pump Heads DG-xA、DG-xB、YZ15、YZ15-6、YZ25、313D、DMD15、YT15、YT25 YZ15、YZ15-6、YZ25、313D、
DMD15、YT15、YT25
YZ15、YZ25、313D、
DMD15、YT15、YT25
Flow Range 0.005-560mL/min 0.013-1700mL/min 0.013-3200mL/min Speed Range 0.2-100rpm 0.2-300rpm 0.2-600rpm Working Mode Flow mode, time-speed control, speed-volume control, time-volume control Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy recall Liquid Volume Calibration Input the measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Screen lock to prevent accidental touch or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid hoses Direction Control Liquid transfer direction control Scheduled Start Set date and time for scheduled start Timed Start Start at a set time Language Setting Chinese and English interface switching Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External signal input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed control function (only for flow mode) Start/stop control External signal start/stop control, optional switch quantity and voltage mode Foot switch Optional foot switch control start/stop Communication function Uses Modbus RTU communication protocol Filling time 0.1s-9999.9Hr Interval time 0.1s-9999.9Hr Operating method 4.3-inch industrial touch screen combined with membrane buttons Number of allocations 0-99999 times (0 for infinite loop) Working environment Temperature 0-40℃, relative humidity <80% Applicable power supply AC90-260V, 50/60Hz Driver dimensions 253x165x169mm Weight 6.5kg Protection level IP55 External signal control
◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz
External signal speed control;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, switch quantity or voltage signal control start/stop, or foot switch control start/stop
Selection Guide
Driver Applicable Pump Heads Number of pump head rollers Number of channels Tube Speed range (RPM) Flow range (mL/min) GF100B
DG-1(2,4,6,8,12)A 3 1,2,4,6,8,12 0.6×1 0.2-100 0.006-3.27 1×1 0.014-6.45 2×1 0.04-20.60 3×1 0.08-37.5 DG-1(2,4,6,8,12)B 10 1,2,4,6,8,12 0.6×1 0.0052-2.64 1×1 0.012-5.96 2×1 0.034-16.19 3×1 0.056-27.65 YZ15 3 1,2 13# 0.016-7.45 14# 0.054-29.87 19# 0.104-55.7 16# 0.172-90.4 25# 0.36-180.6 17# 0.64-308.0 18# 0.82-460.0 YZ15-6 6 1,2 13# 0.012-6.28 14# 0.04-18.5 19# 0.074-36.7 16# 0.128-63.8 25# 0.24-118.5 17# 0.36-177.3 18# 0.44-224.2 YZ25 3 1,2 15# 0.34-154 24# 0.58-271 35# 0.74-370 313D 3 1 13# 0.016-7.45 14# 0.054-29.87 19# 0.104-55.7 16# 0.172-90.4 25# 0.36-180.6 17# 0.64-308.0 18# 0.82-460.0 DMD15 3 1 2*13# 0.026-13 2*14# 0.098-46 2*19# 0.19-107 2*16# 0.32-169 2*25# 0.68-358 2*17# 1.1-570 YT15 3 1,2 13# 0.016-7.45 14# 0.054-29.87 19# 0.104-55.7 16# 0.172-90.4 25# 0.36-180.6 17# 0.64-308.0 18# 0.82-460.0 YT25 3 1,2 15# 0.35-174 24# 0.58-292 35# 0.79-395 36# 1.1-545 GF300B YZ15 3 1,2 13# 0.2-300 0.016-23.1 14# 0.054-87 19# 0.104-163.5 16# 0.172-267.1 25# 0.36-555 17# 0.64-969 18# 0.82-1200 YZ15-6 6 1,2 13# 0.012-18.6 14# 0.04-56.1 19# 0.074-112.5 16# 0.128-192 25# 0.24-366 17# 0.36-537 18# 0.44-699 YZ25 3 1,2 15# 0.34-522 24# 0.58-876 35# 0.74-1185 313D 3 1 13# 0.016-23.1 14# 0.054-87 19# 0.104-163.5 16# 0.172-267.1 25# 0.36-555 17# 0.64-969 18# 0.82-1200 DMD15 3 1 2*13# 0.026-39 2*14# 0.098-138 2*19# 0.19-321 2*16# 0.32-507 2*25# 0.68-1074 2*17# 1.1-1719 YT15 3 1,2 13# 0.016-7.45 14# 0.054-29.87 19# 0.104-55.7 16# 0.172-90.4 25# 0.36-180.6 17# 0.64-308.0 18# 0.82-460.0 YT25 3 1,2 15# 0.35-522 24# 0.58-876 35# 0.79-1185 36# 1.1-1635 GF600B YZ15 3 1,2 13# 0.2-600 0.016-46.1 14# 0.054-178.1 19# 0.104-336.9 16# 0.172-556.2 25# 0.36-1176.6 17# 0.64-2111.6 18# 0.128-2400 YZ25 1,2 15# 0.34-1066 24# 0.58-1856 35# 0.74-2370 313D 3 1 13# 0.016-46.1 14# 0.054-178.1 19# 0.104-336.9 16# 0.172-556.2 25# 0.36-1176.6 17# 0.64-2111.6 18# 0.128-2400 DMD15 3 1 2*13# 0.026-47.07 2*14# 0.098-266.45 2*19# 0.19-564 2*16# 0.32-941 2*25# 0.68-1371 2*17# 1.1-3200 YT15 3 1,2 13# 0.016-46.1 14# 0.054-178.1 19# 0.104-336.9 16# 0.172-556.2 25# 0.36-1176.6 17# 0.64-2111.6 18# 0.128-2400 YT25 3 1,2 15# 0.34-1066 24# 0.58-1856 35# 0.74-2370 36# 1.1-3200 Dimensions
