Product Description

Commodity name: GL100B, GL300B, GL600B

Flow range: 0.013-3200mL/min, protection level IP55; two operating modes: flow mode and timed constant speed; synchronous operation of industrial touch screen and membrane keypad

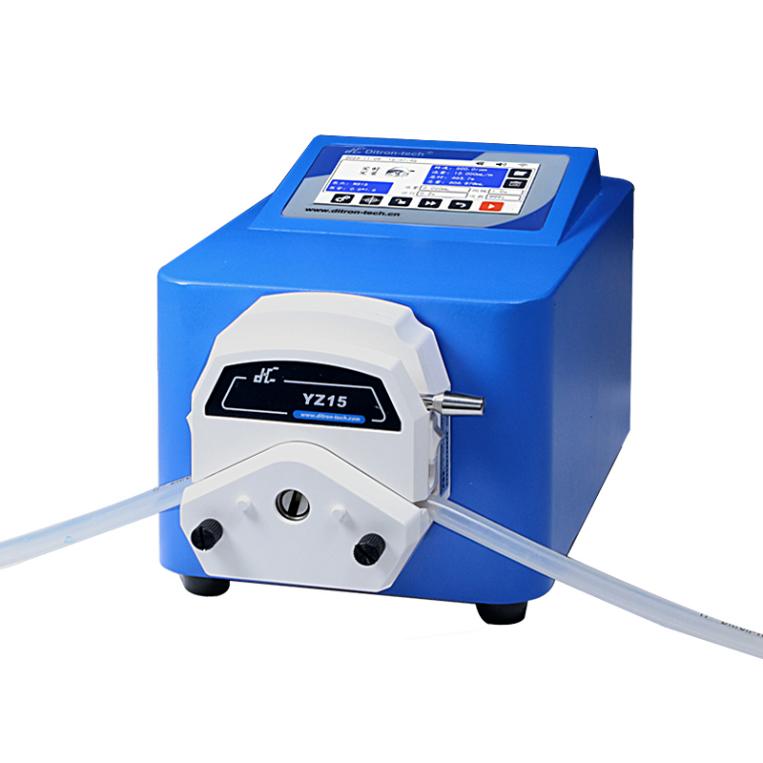

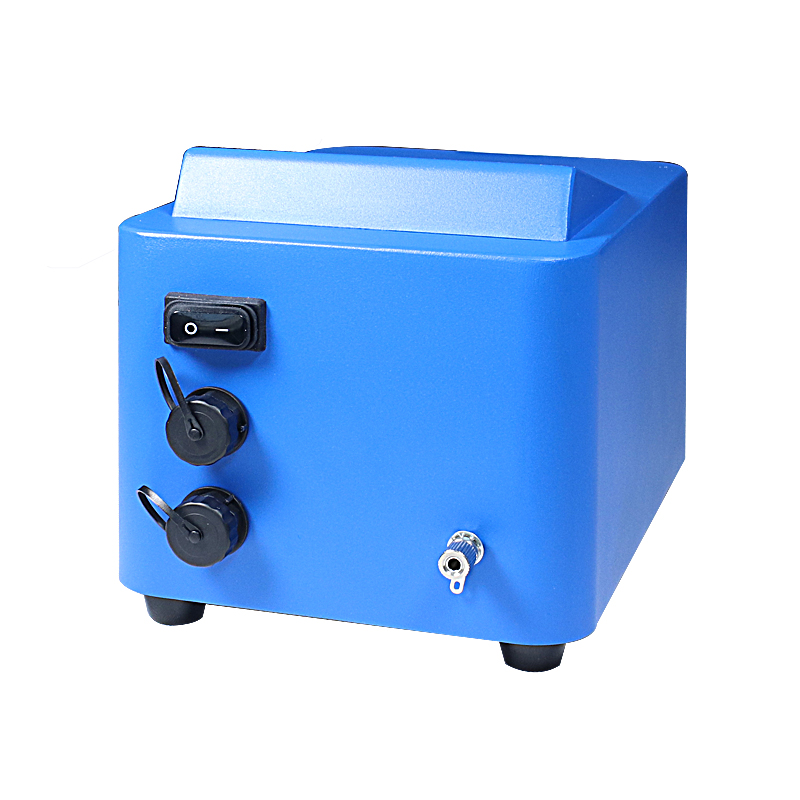

“B” series intelligent flow type high-protection peristaltic pump

GF600B+YZ15-ZT-X Copy — **YZ15, YZ25 pump heads**

Product Introduction

◆ Protection level IP55, suitable for humid or high-dust environments; high-precision liquid transfer;

◆ Flow mode and timing/speed control, two working modes;

◆ Industrial touch screen and membrane keypad synchronous operation, simple, convenient and fast;

◆ Suitable for 0.005-3200mL/min high-precision liquid transfer, flow calibration function;

◆ Adaptable to various pump heads to meet different needs, including YZ15(25), DG series, DMD15, 313D, YT15(25) pump heads;

◆ Liquid volume accumulation, timing function, multiple schemes can be pre-stored for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;

Typical Applications

◆ High-precision liquid transfer in high-dust and humid environments;

◆ Chemical reagents, liquid transfer of medicinal liquids;

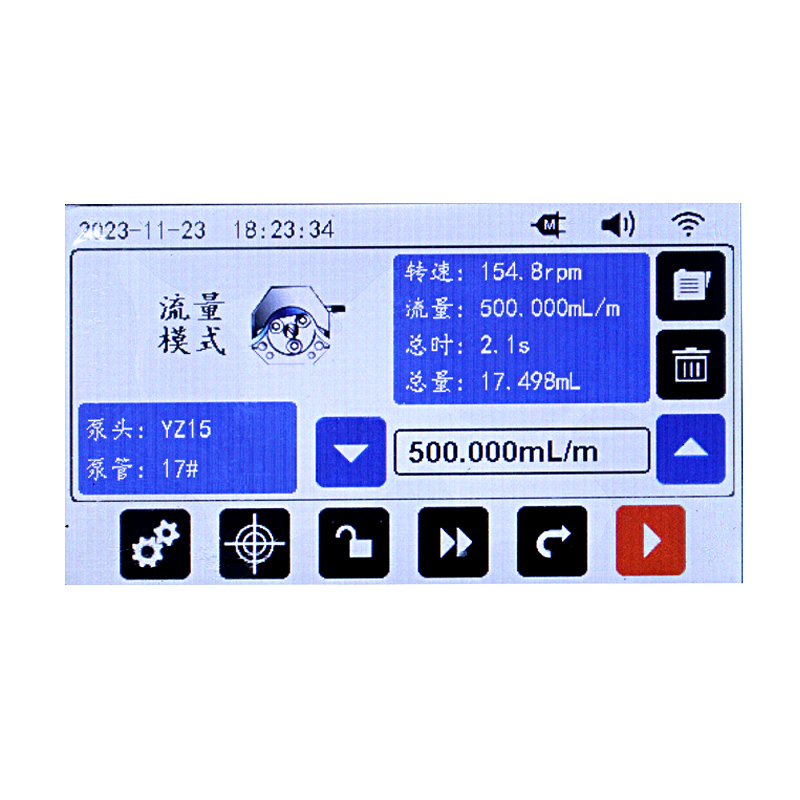

Control Panel

◆ Flow Mode

Set flow rate, flow acceleration and deceleration functions,

Suitable for continuous high-precision liquid transfer;

Total liquid volume accumulation, total running time accumulation function;

Flow calibration function, input measured flow value to complete flow calibration;

Scheme Storage and Access Function

◆ Timing and Speed Mode

Set flow rate, running time, interval time, and number of runs,

Suitable for timing and speed control liquid transfer;

Total liquid volume accumulation, total running time accumulation function;

Flow calibration function, input measured flow value to complete flow calibration;

Scheme Storage and Access Function

Technical Parameters

Driver Model	GL100B	GL300B	GL600B
Applicable Pump Heads	DG-xA, DG-xB, YZ15, YZ15-6, YZ25, 313D, DMD15, YT15, YT25	YZ15, YZ15-6, YZ25, 313D, DMD15, YT15, YT25	YZ15, YZ25, 313D, DMD15, YT15, YT25
Flow Range	0.005-560mL/min	0.013-1700mL/min	0.013-3200mL/min
Speed Range	0.2-100rpm	0.2-300rpm	0.2-600rpm
Working Mode	Flow mode, timing and speed control
Liquid Volume Accumulation	Total liquid volume accumulation and reset function
Time Accumulation	Total running time accumulation and reset function
Scheme Storage	Save the current running scheme for easy access
Flow Calibration	Input measured flow rate, automatic calibration, achieving higher precision liquid transfer
Back Suction Speed Setting	Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm
Back Suction Angle Setting	Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0
Screen Lock Function	Lock the screen to prevent accidental touches or arbitrary parameter changes
Full Speed Function	Liquid quick filling and draining hose
Direction Control	Liquid transfer direction control
Scheduled Start	Set date and time for scheduled start
Timed Start	Start at the set time
Language Setting	Chinese and English interface switching
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed control function (only for flow mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mode optional
Foot Switch	Optional foot switch to control start/stop
Communication Function	Uses Modbus RTU communication protocol
Running Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operation Method	4.3-inch industrial touch screen combined with membrane keypad
Number of Runs	0-99999 times (0 for infinite loop)
Operating Environment	Temperature 0-40℃, relative humidity <80%
Applicable Power Supply	AC90-260V, 50/60Hz
Driver Dimensions	253x165x169mm
Weight	6.5kg
Protection Level	IP55

External Signal Control

◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz

External signal speed control;

◆ RS485 communication control, using Modbus RTU communication protocol;

◆ Start/stop control, start/stop control by switch quantity or voltage signal, or start/stop control by foot switch

Selection Guide

Driver	Applicable Pump Heads	Number of pump head rollers	Number of channels	Tubing	Speed Range (RPM)	Flow Rate Range (mL/min)
GL100B	DG-1(2,4,6,8,12)A	3	1,2,4,6,8,12	0.6×1	0.2-100	0.006-3.27
				1×1		0.014-6.45
				2×1		0.04-20.60
				3×1		0.08-37.5
	DG-1(2,4,6,8,12)B	10	1,2,4,6,8,12	0.6×1		0.0052-2.64
				1×1		0.012-5.96
				2×1		0.034-16.19
				3×1		0.056-27.65
	YZ15	3	1,2	13#		0.016-7.45
				14#		0.054-29.87
				19#		0.104-55.7
				16#		0.172-90.4
				25#		0.36-180.6
				17#		0.64-308.0
				18#		0.82-460.0
	YZ15-6	6	1,2	13#		0.012-6.28
				14#		0.04-18.5
				19#		0.074-36.7
				16#		0.128-63.8
				25#		0.24-118.5
				17#		0.36-177.3
				18#		0.44-224.2
	YZ25	3	1,2	15#		0.34-154
				24#		0.58-271
				35#		0.74-370
	313D	3	1	13#		0.016-7.45
				14#		0.054-29.87
				19#		0.104-55.7
				16#		0.172-90.4
				25#		0.36-180.6
				17#		0.64-308.0
				18#		0.82-460.0
	DMD15	3	1	2*13#		0.026-13
				2*14#		0.098-46
				2*19#		0.19-107
				2*16#		0.32-169
				2*25#		0.68-358
				2*17#		1.1-570
	YT15	3	1,2	13#		0.016-7.45
				14#		0.054-29.87
				19#		0.104-55.7
				16#		0.172-90.4
				25#		0.36-180.6
				17#		0.64-308.0
				18#		0.82-460.0
	YT25	3	1,2	15#		0.35-174
				24#		0.58-292
				35#		0.79-395
				36#		1.1-545
GL300B	YZ15	3	1,2	13#	0.2-300	0.016-23.1
				14#		0.054-87
				19#		0.104-163.5
				16#		0.172-267.1
				25#		0.36-555
				17#		0.64-969
				18#		0.82-1200
	YZ15-6	6	1,2	13#		0.012-18.6
				14#		0.04-56.1
				19#		0.074-112.5
				16#		0.128-192
				25#		0.24-366
				17#		0.36-537
				18#		0.44-699
	YZ25	3	1,2	15#		0.34-522
				24#		0.58-876
				35#		0.74-1185
	313D	3	1	13#		0.016-23.1
				14#		0.054-87
				19#		0.104-163.5
				16#		0.172-267.1
				25#		0.36-555
				17#		0.64-969
				18#		0.82-1200
	DMD15	3	1	2*13#		0.026-39
				2*14#		0.098-138
				2*19#		0.19-321
				2*16#		0.32-507
				2*25#		0.68-1074
				2*17#		1.1-1719
	YT15	3	1,2	13#		0.016-7.45
				14#		0.054-29.87
				19#		0.104-55.7
				16#		0.172-90.4
				25#		0.36-180.6
				17#		0.64-308.0
				18#		0.82-460.0
	YT25	3	1,2	15#		0.35-522
				24#		0.58-876
				35#		0.79-1185
				36#		1.1-1635
GL600B	YZ15	3	1,2	13#	0.2-600	0.016-46.1
				14#		0.054-178.1
				19#		0.104-336.9
				16#		0.172-556.2
				25#		0.36-1176.6
				17#		0.64-2111.6
				18#		0.128-2400
	YZ25		1,2	15#		0.34-1066
				24#		0.58-1856
				35#		0.74-2370
	313D	3	1	13#		0.016-46.1
				14#		0.054-178.1
				19#		0.104-336.9
				16#		0.172-556.2
				25#		0.36-1176.6
				17#		0.64-2111.6
				18#		0.128-2400
	DMD15	3	1	2*13#		0.026-47.07
				2*14#		0.098-266.45
				2*19#		0.19-564
				2*16#		0.32-941
				2*25#		0.68-1371
				2*17#		1.1-3200
	YT15	3	1,2	13#		0.016-46.1
				14#		0.054-178.1
				19#		0.104-336.9
				16#		0.172-556.2
				25#		0.36-1176.6
				17#		0.64-2111.6
				18#		0.128-2400
	YT25	3	1,2	15#		0.34-1066
				24#		0.58-1856
				35#		0.74-2370
				36#		1.1-3200

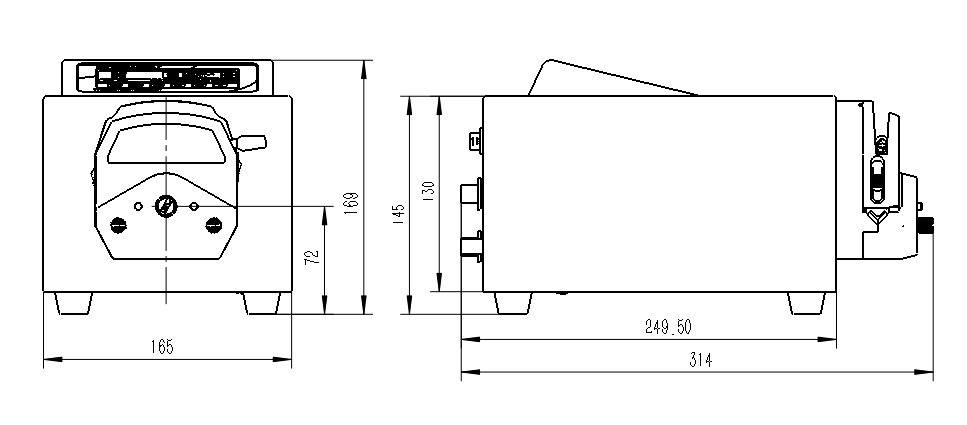

Dimensions


DG-A DG-B pump heads	DMD15 pump head	313D pump head	YT15 YT25 pump heads
