GF600S, GF350S
Category:
Tags:
- Product Description
GF600S, GF350S
-
- Commodity name: GF600S, GF350S
Flow range 0.59-6000mL/min, protection level IP55, suitable for humid or dusty environments, high-precision liquid filling and transfer; four operating modes: flow mode, timed speed, constant speed and constant volume, timed constant volume; industrial touch screen and film buttons for synchronous operation, simple, convenient and fast.
Product Introduction
◆ IP55 protection level, suitable for humid or high-dust environments, high-precision liquid filling and transfer;
◆ Four working modes: flow mode, timed speed, speed and volume, and timed volume;
◆ Simultaneous operation of industrial touch screen and membrane keypad, simple, convenient and fast;
◆ Suitable for high-precision liquid transfer of 0.09-6000 mL/min and liquid filling of 10-500 mL;
◆ Servo motor drive, effectively ensuring the accuracy of liquid transfer and filling;
◆ Adaptable to various pump heads to meet different needs, including KZ25, DMD25, YZ15, YZ25, etc.;
◆ Liquid volume accumulation, appointment filling, multiple schemes can be preset for easy access;
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc;
Typical Applications
◆ Liquid transfer and filling in dusty or humid environments
◆ Pharmaceutical, liquid filling and transfer
Control Panel
◆ Flow Mode
Set flow rate, flow acceleration and deceleration functions, suitable for continuous high-precision liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input measured flow value to complete flow calibration;
Scheme storage and access function

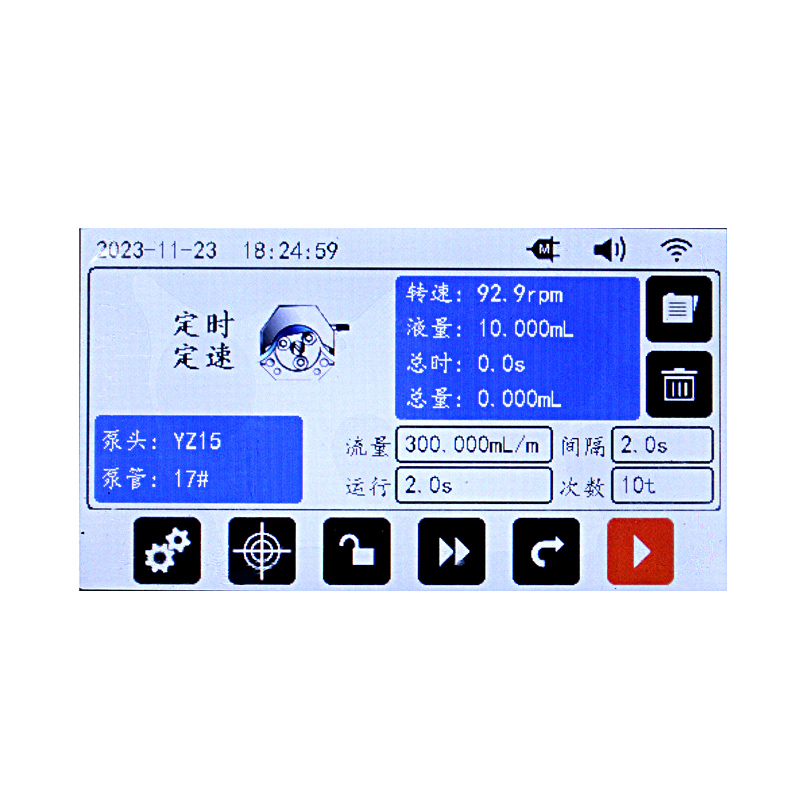

◆ Timed Speed Mode
Set flow rate, running time, interval time, and number of runs, suitable for timed speed liquid transfer;
Total liquid volume accumulation and total running time accumulation functions;
Flow calibration function, input measured flow value to complete flow calibration;
Scheme storage and access function

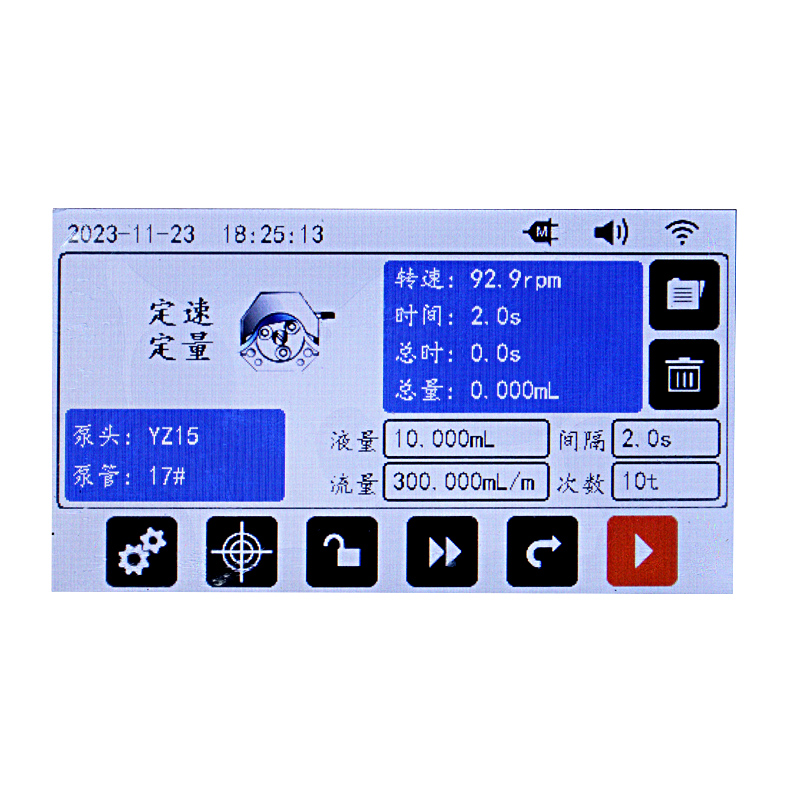

◆ Speed and Volume Mode
Input filling liquid volume, flow rate, interval time, number of runs, etc., suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input measured liquid volume to complete liquid volume calibration;
Scheme storage and access function

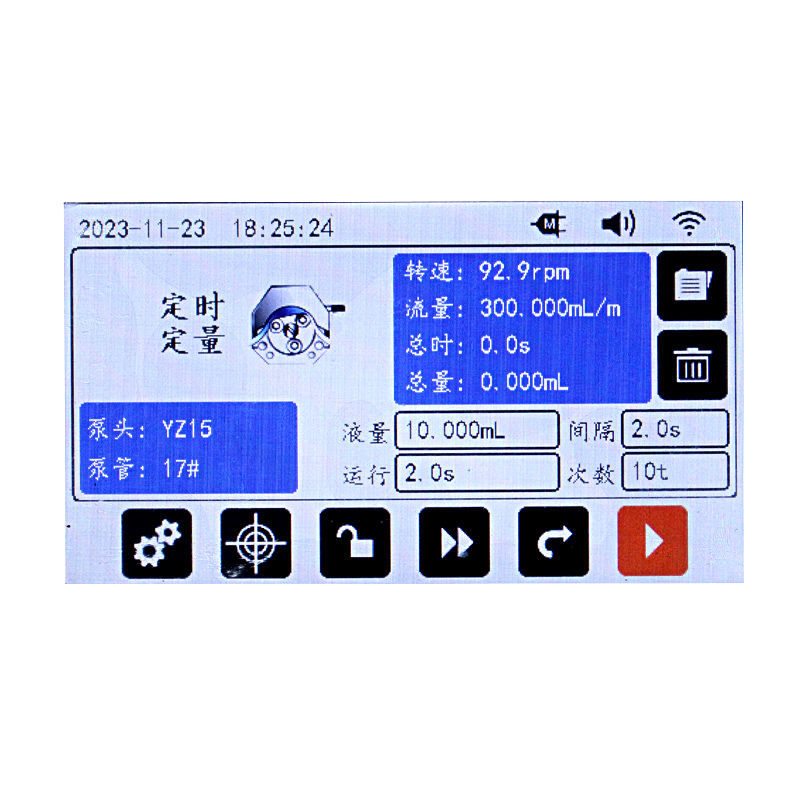

◆ Timed Volume Mode
Input filling liquid volume, running time, interval time, number of runs, etc.
Suitable for high-precision liquid filling;
Total liquid volume accumulation and total running time accumulation functions;
Liquid volume calibration function, input measured liquid volume to complete liquid volume calibration;
Scheme storage and access function
Technical Parameters
Driver Model GF600S GF350S Product Image

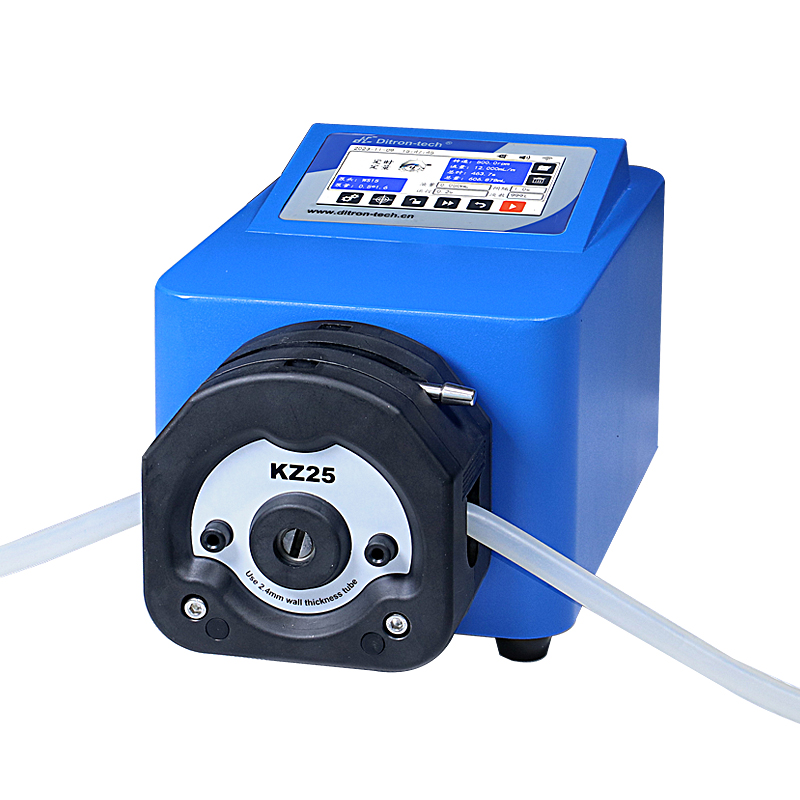

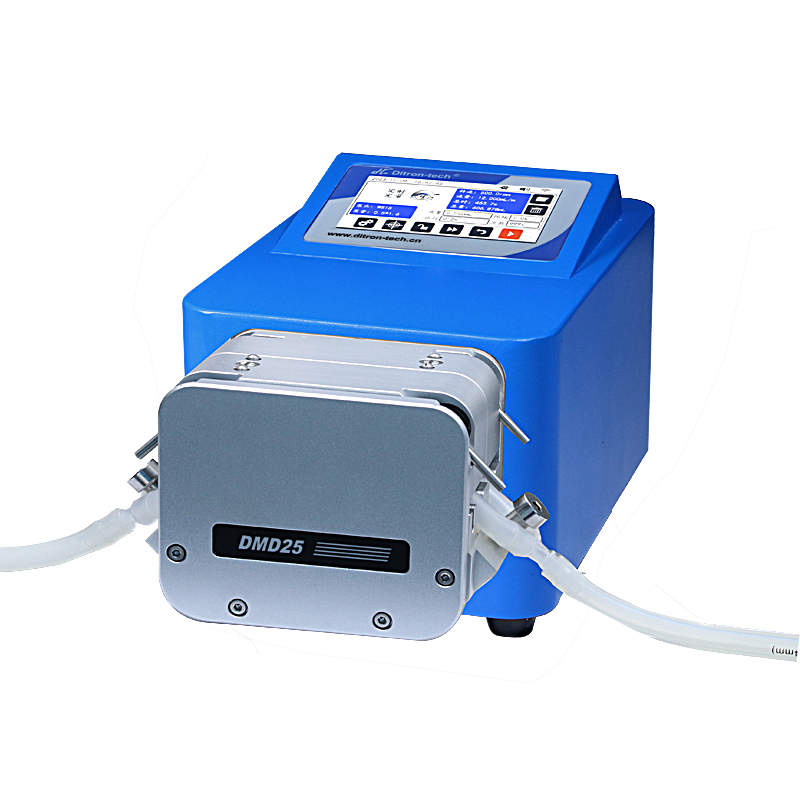

Applicable Pump Head KZ25, YZ15, YZ25 DMD25 Flow Range 0.59-6000mL/min 0.09-4160mL/min Speed Range 0.2-600rpm 0.2-350rpm Pump Head Features Suitable for large flow liquid transfer and filling Special low-pulsation pump head, suitable for high-precision liquid filling Working Mode Flow mode, timed speed, speed and volume, timed volume Liquid Volume Accumulation Total liquid volume accumulation and zeroing function Time Accumulation Total running time accumulation and zeroing function Scheme Storage Save the current running scheme for easy access Liquid Volume Calibration Input measured filling liquid volume, automatic calibration, to achieve higher precision liquid transfer and filling Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300 rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Screen lock to prevent accidental touch or arbitrary parameter changes Full Speed Function Rapid filling and emptying of liquid hoses Direction Control Liquid transfer direction control Scheduled Start Set date and time for scheduled start Timed Start Start at the set time Language Setting Switch between Chinese and English interfaces Restore Factory Settings Restore factory settings function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow mode) Start/Stop Control External signal start/stop control, with options for switch quantity and voltage methods Foot switch Optional foot switch control for start/stop Communication function Uses Modbus RTU communication protocol Filling time 0.1s-9999.9Hr Interval time 0.1s-9999.9Hr Operating method 4.3-inch industrial touch screen combined with membrane buttons Number of allocations 0-99999 times (0 for infinite loop) Operating environment Temperature 0-40℃, relative humidity <80% Applicable power supply AC90-260V, 50/60Hz Driver dimensions 253x165x169mm Weight 7kg Protection level IP31 External signal control
◆ In flow rate mode: 0-5V, 0-10V, 4-20mA, 0-10KHz
◆ External signal speed control;
RS485 communication control, using Modbus RTU communication protocol; ◆ Start/stop control, switch quantity or voltage signal control for start/stop, or foot switch control for start/stop
Selection guide
Driver Applicable Pump Head Number of pump head rollers Number of channels Tube Speed range (RPM) Flow rate range (mL/min) GF600S KZ25 3 1, 2 15# 0.2-600 0.59-1800 24# 0.95-3200 35# 1.4-4500 36# 1.9-6000 DMD25 6 1 1.6×2.4 0.2-350 0.086-150.4 3.2×2.4 0.46-805 2*15# 0.86-1505 2*24# 1.37-2397 2*35# 1.68-2950 2*36# 2.38-4165 Dimensions
