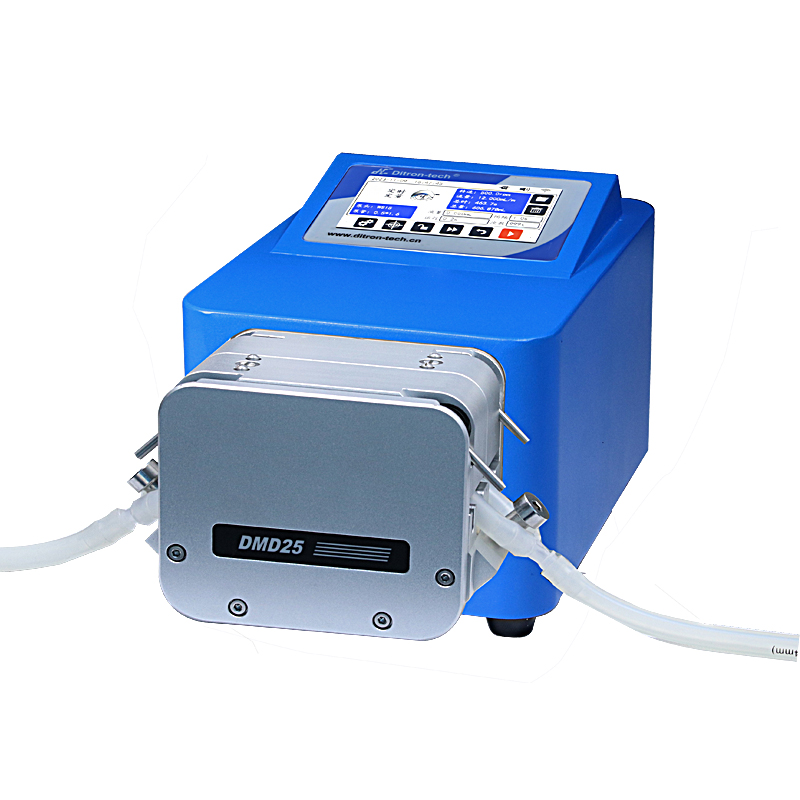

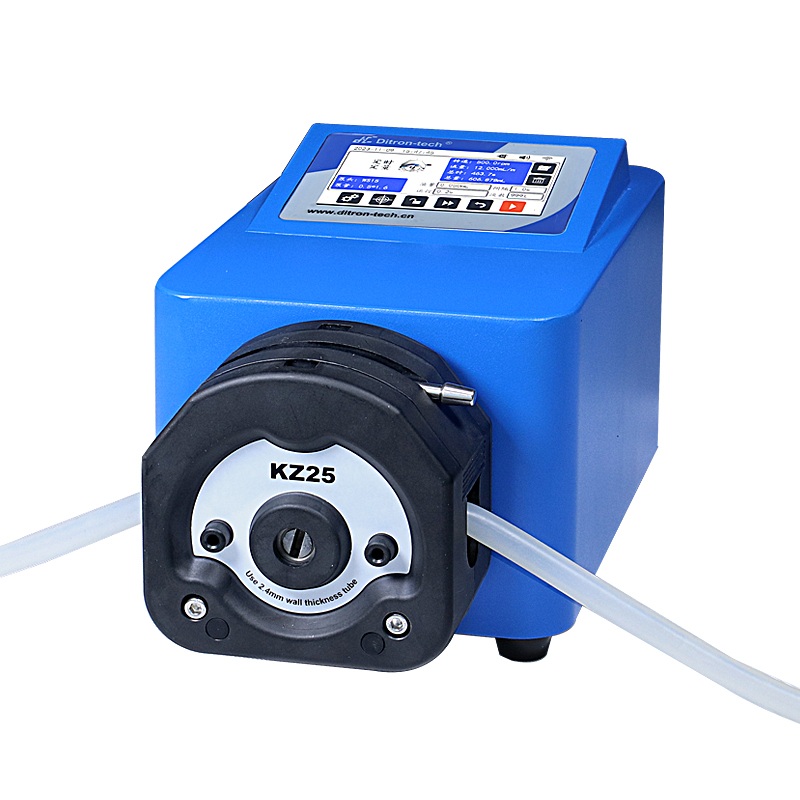

GL600S, GL350S

Flow range 1.9-6000ml/min, protection level IP55, suitable for humid or high-dust environments for high-precision liquid transfer; two operating modes: flow mode and timed constant speed; industrial touch screen and film buttons for synchronous operation, simple, convenient and fast

Category:

High-protection peristaltic pump

Tags:

Peristaltic pump

Ditron-tech

sales3@ditrontech.com

Get a quote

Product Manual

GL600S, GL350S

Product Description

Commodity name: GL600S, GL350S

Product Introduction

◆ IP55 protection level, suitable for humid or high-dust environments, high-precision liquid transfer;

◆ Two working modes: flow mode and timed speed;

◆ Industrial touch screen and film buttons for synchronous operation, simple, convenient, and fast;

◆ Suitable for high-precision liquid transfer of 0.09-6000mL/min;

◆ Servo motor drive, effectively ensuring liquid transfer accuracy;

◆ Adaptable to various pump heads to meet different needs, including KZ25, DMD25, YZ15, YZ25 pump heads;

◆ Liquid volume accumulation, scheduled filling, multiple schemes can be saved for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.;

Typical Applications

◆ High-precision liquid transfer in high-dust, humid environments;

◆ Liquid transfer of medicinal liquid;

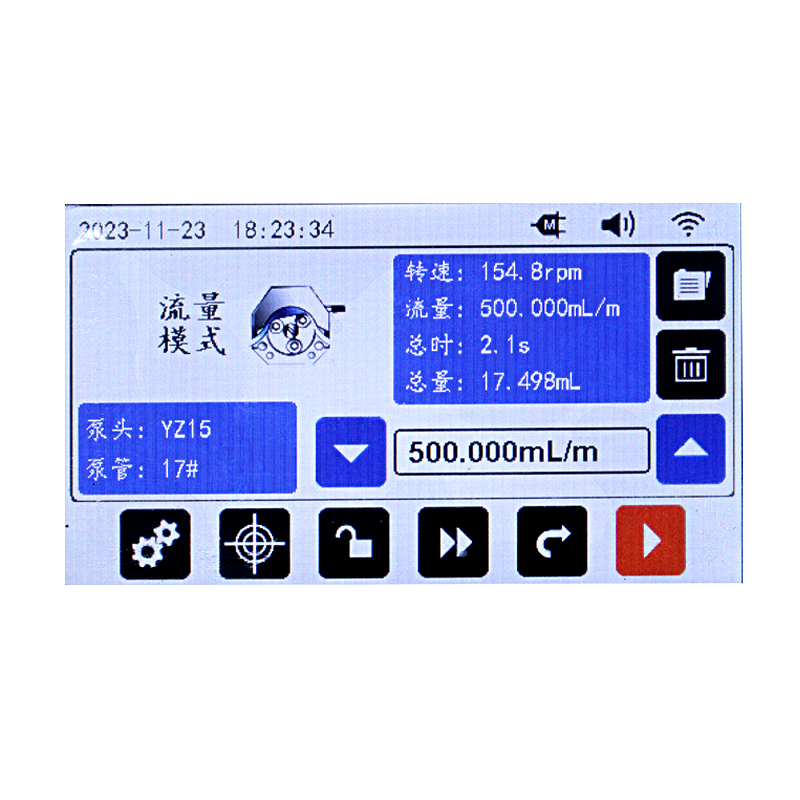

Control Panel

◆ Flow Mode

Set flow rate, flow acceleration, and deceleration functions,

Suitable for continuous high-precision liquid transfer;

Total liquid volume accumulation and total operating time accumulation functions;

Flow calibration function, input measured flow value to complete flow calibration;

Scheme storage and access function

◆ Timed Speed Mode

Set flow rate, running time, interval time, and number of runs,

Suitable for timed speed liquid transfer;

Total liquid volume accumulation and total operating time accumulation functions;

Flow calibration function, input measured flow value to complete flow calibration;

Scheme storage and access function

Technical Parameters

Driver Model	GL600S	GL350S
Product Image
Applicable Pump Heads	KZ25, YZ15, YZ25	DMD25
Flow Range	0.59-6000mL/min	0.09-4160mL/min
Speed Range	0.2-600rpm	0.2-350rpm
Pump Head Features	Suitable for high-flow liquid transfer	Dedicated low-pulsation pump head, suitable for high-precision liquid transfer
Working Mode	Flow mode, timed speed
Liquid Volume Accumulation	Total liquid volume accumulation and clearing function
Time Accumulation	Total operating time accumulation and clearing function
Scheme Storage	Save the current running scheme for easy access
Flow Calibration	Input measured flow, automatic calibration, achieve higher precision liquid transfer
Back Suction Speed Setting	Set back suction speed to prevent dripping after shutdown, speed range 10-300 rpm
Back Suction Angle Setting	Set back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0
Screen Lock Function	Screen lock to prevent accidental touch or arbitrary parameter changes
Full Speed Function	Fast liquid filling and emptying hose
Direction Control	Liquid transfer direction control
Scheduled Start	Set date and time, scheduled start
Timed Start	Start at a set time
Language Setting	Switch between Chinese and English interfaces
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mode optional
Foot Switch	Optional foot switch for start/stop control
Communication Function	Uses Modbus RTU communication protocol
Running Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operation Method	4.3-inch industrial touch screen combined with film buttons
Number of Runs	0-99999 times (0 for infinite loop)
Working Environment	Temperature 0-40℃, relative humidity <80%
Applicable Power Supply	AC90-260V, 50/60Hz

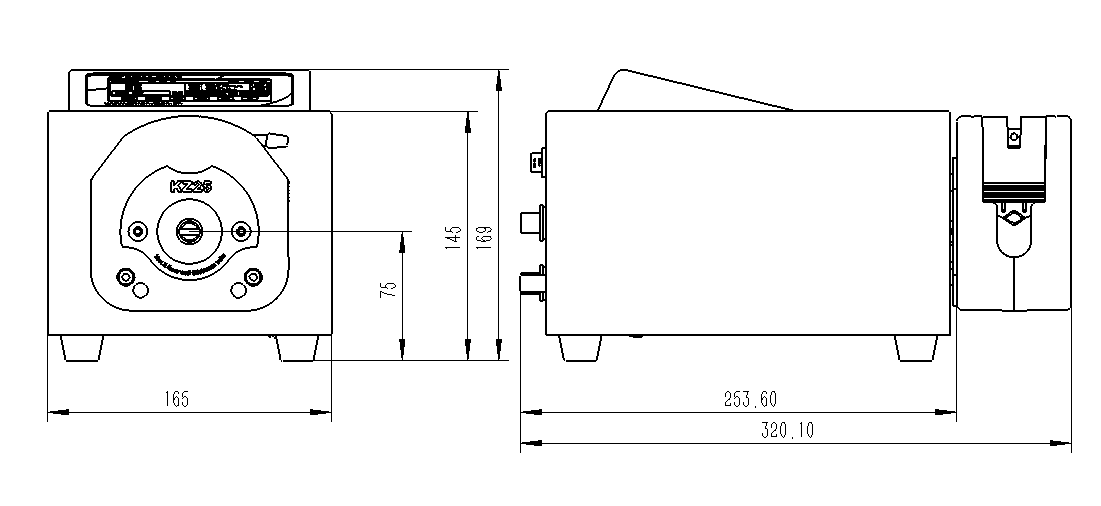

Driver Dimensions	253x165x169mm
Weight	7kg
Protection Level	IP55

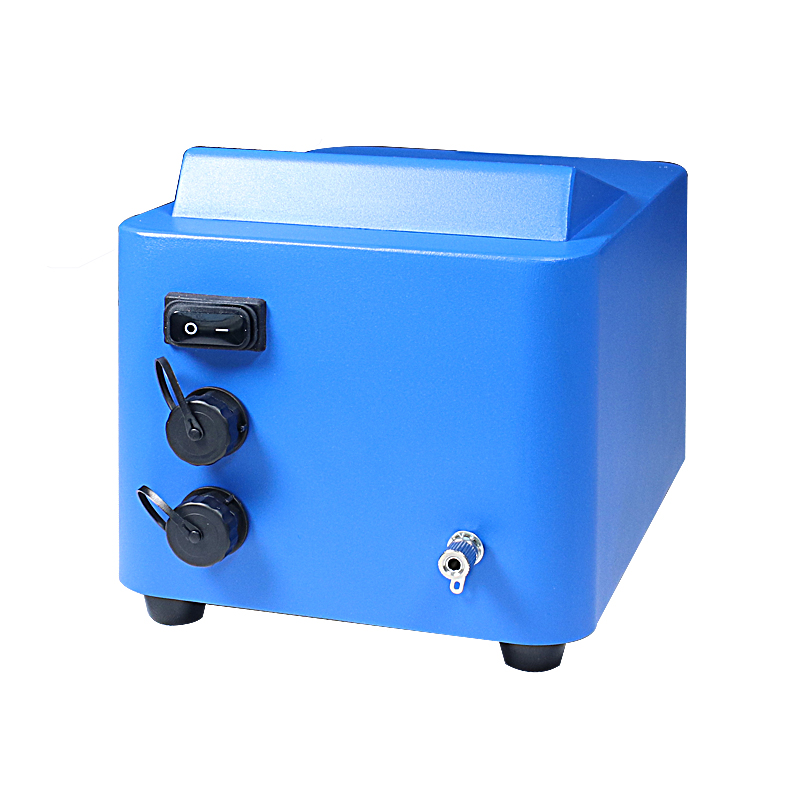

External Signal Control

◆ In flow mode, 0-5V, 0-10V, 4-20mA, 0-10KHz

External signal speed regulation;

◆ RS485 communication control, using Modbus RTU communication protocol;

◆ Start/stop control, start/stop control by switch quantity or voltage signal, or start/stop control by foot switch

Selection Guide

Driver	Applicable Pump Heads	Number of Pump Head Rollers	Number of Channels	Tubing	Speed Range (RPM)	Flow Rate Range (mL/min)
GL600S	KZ25	3	1,2	15#	0.2-600	0.59-1800
				24#		0.95-3200
				35#		1.4-4500
				36#		1.9-6000
	DMD25	6	1	1.6×2.4	0.2-350	0.086-150.4
				3.2×2.4		0.46-805
				2*15#		0.86-1505
				2*24#		1.37-2397
				2*35#		1.68-2950
				2*36#		2.38-4165
