G100-1L, G300-1L, G600-1L
-
- Commodity name: G100-1L, G300-1L, G600-1L
Flow range: 0.07-2400mL/min, waterproof and dustproof, IP55 protection level, optional multiple pump heads, flow and speed displayed on the same screen
Product Introduction
◆ Flow range: 0.07-2400mL/min
◆ Waterproof and dustproof, IP55 protection level
◆ Optional pump heads: YZ series, BZ series
◆ Flow and speed displayed on the same screen, flow calibration
◆ Membrane buttons with imported encoder control, more convenient and reliable
◆ Flow accuracy up to ±1%
◆ 304 stainless steel shell
Applicable pump heads
DG series YZ series DMD15 YT15 Typical Applications
◆ Laboratory applications, pharmaceutical machinery matching, industrial production
Technical Parameters
Product Model G100-1L G300-1L G600-1L Applicable pump heads DG series YZ series DMD15 YZ series DMD15 YZ series DMD15 Number of Channels 1-12 1,2 1 1,2 1 1,2 1 Flow Range (mL/min) 0.00026-48 0.0008-45 0.0013-565 0.008-1300 0.0013-1700 0.008-2400 0.0013-3200 Speed Range (rpm) 0.01-100 0.01-300 0.01-600 Speed Resolution 0.1 (<100RPM), 1 (≥100RPM) Display Function 128×32 graphic dot matrix LCD display, flow and speed displayed on the same screen Direction Control Reversible operation Operation Method Rotary encoder switch with membrane button operation, more convenient for users Full Speed Function Quick filling and emptying of the pipeline can be achieved through the full speed button Power-off Memory Function Continue operation in the state before power-off after power-on Calibration Function With automatic flow calibration function, convenient and fast operation External Control Function Optional different models of external control modules, can be used for start/stop control, direction control, flow control,
0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional
Communication Function Optional communication module, can be used for RS485 communication control (using general Modbus protocol) Output Function Start/stop, direction output, frequency output 0-10KHz, OC gate output Foot Switch Function Optional foot switch control start/stop Power Consumption 35-50W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Dimensions 212*170*162mm (excluding pump head) Working Environment 0-40℃, humidity <80% non-condensing Driver Weight 4.8KG Protection Level IP55 Selection Guide

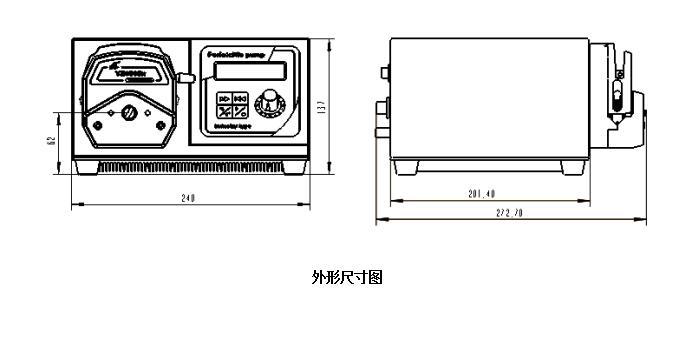

Driver Applicable pump heads Optional Number of Channels Tubing Flow Range (mL/min) G100-1L DG-1(2,4,6,8,12)A 2,4,6,8,12 Inner diameter ≤3.2, wall thickness 0.8-1mm 0.0003-48 DG-1(2,4,6,8,12)B 2,4,6,8,12 Inner diameter ≤3.2, wall thickness 0.8-1mm 0.00026-32 YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-460 YZ25 1,2 15#,24# 0.017-270 DMD15 1 2*13#,2*14#,2*19#,2*16#,2*25#,2*17#,2*18# 0.0013-565 G300-1L YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-1300 YZ25 1,2 15#,24# 0.017-870 DMD15 1 2*13#,2*14#,2*19#,2*16#,2*25#,2*17#,2*18# 0.0013-1700 G600-1L YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-2400 YZ25 1,2 15#,24# 0.017-1700 DMD15 1 2*13#,2*14#,2*19#,2*16#,2*25#,2*17#,2*18# 0.0013-3200 Dimensions
