S600-1S+mYZ15 Closed-loop stepper motor control
Flow range: 0.009-1070mL/min closed-loop stepper motor, integrated drive and control. Applicable speed: 0.1-600rpm, RS485 communication control, Modbus RTU protocol. 0-5V analog speed regulation. Flow accuracy: ±1%. Applicable pump head: mYZ15.
Category:
- Product Description
S600-1S+mYZ15 Closed-loop stepper motor control
-
- Commodity name: S600-1S+mYZ15 Closed-loop stepper motor control
Flow range: 0.009-1070mL/min closed-loop stepper motor, integrated drive and control. Applicable speed: 0.1-600rpm, RS485 communication control, Modbus RTU protocol. 0-5V analog speed regulation. Flow accuracy: ±1%. Applicable pump head: mYZ15.
Product Introduction
◆ Flow Range: 0.009-1070mL/min
◆ Closed-loop stepper motor, integrated drive control◆ Applicable Speed: 0.1-600rpm
◆ RS485 communication control, Modbus RTU protocol
◆ 0-5V analog speed control
◆ Flow Accuracy: ±1%
Technical Parameters

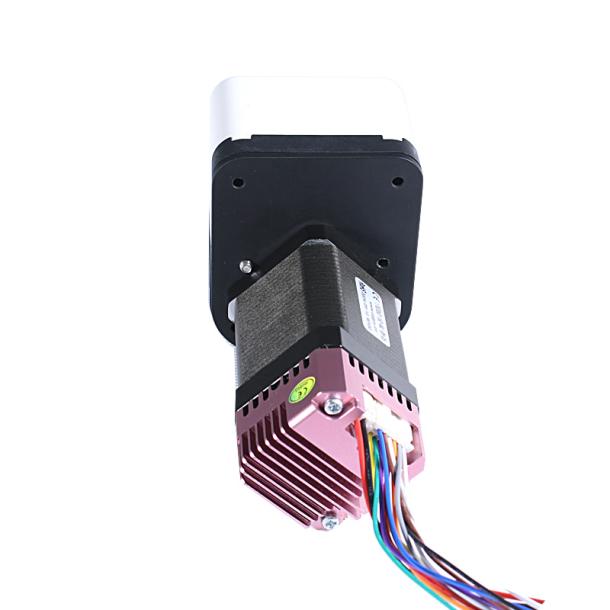

Product Model S600-1S+mYZ15 (Closed-loop control peristaltic pump) Applicable Pump Head mYZ15-13 mYZ15-23 mYZ15-16 mYZ15-26 Applicable Speed (rpm) 0.1-600 0.1-600 0.1-300 0.1-300 Applicable Tubing 13#, 14#, 19#, 16#, 25#, 17# 13#, 14#, 19#, 16# 13#, 14#, 19#, 16#, 25#, 17# 13#, 14#, 19#, 16# Reference Flow (mL/min) 0.012-1070 0.012-396 0.009-327 0.009-144 Applicable Number of Channels 1 2 1 2 Motor Closed-loop stepper motor, integrated drive control, servo control, high precision, no missed steps, low noise Communication Control RS485 communication control, Modbus RTU communication protocol Analog Speed Control 0-5V voltage externally controlled speed control Speed Control Error ≤±0.2% Noise Control Intelligent current control adjustment to reduce noise, vibration, and heat generation Alarm Output Built-in alarm output for convenient detection and control Applicable Power Supply DC12V-DC24V Working Environment 0-40℃, Relative Humidity: <80% Weight 800g Closed-loop integrated motor
Selection Guide

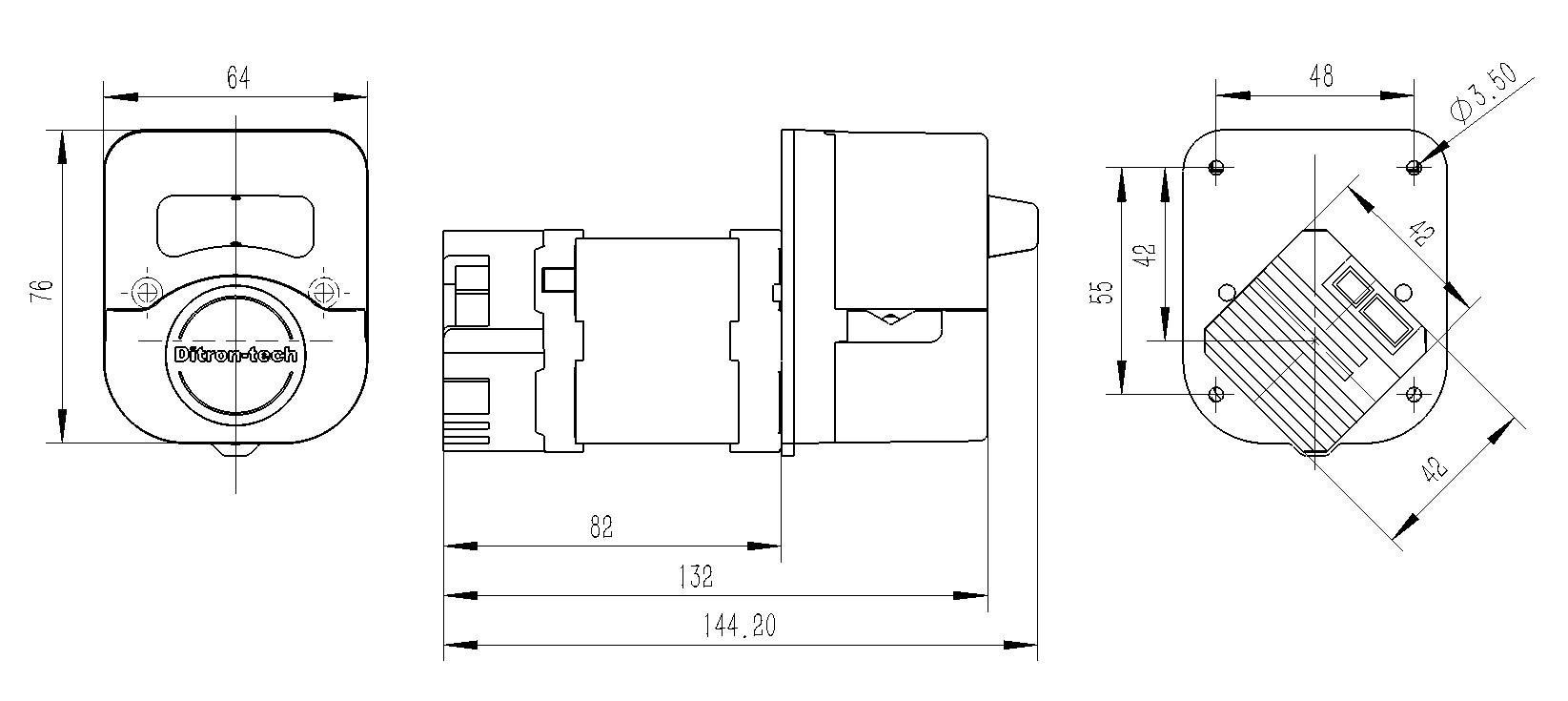

Product Model Number of Pump Head Rollers Optional Channels Tubing Speed Range (RPM) Flow Range (mL/min) S600-1S+mYZ15-13 3 1 13#14#19#16#25#17# 0.1-600 0.012-1070 S300-1S+mYZ15-16 6 1 13#14#19#16#25#17# 0.1-300 0.009-327 S600-1S+mYZ15-23 3 2 13#14#19#16# 0.1-600 0.012-396 S300-1S+mYZ15-26 6 2 13#14#19#16# 0.1-300 0.009-144 Dimensions
