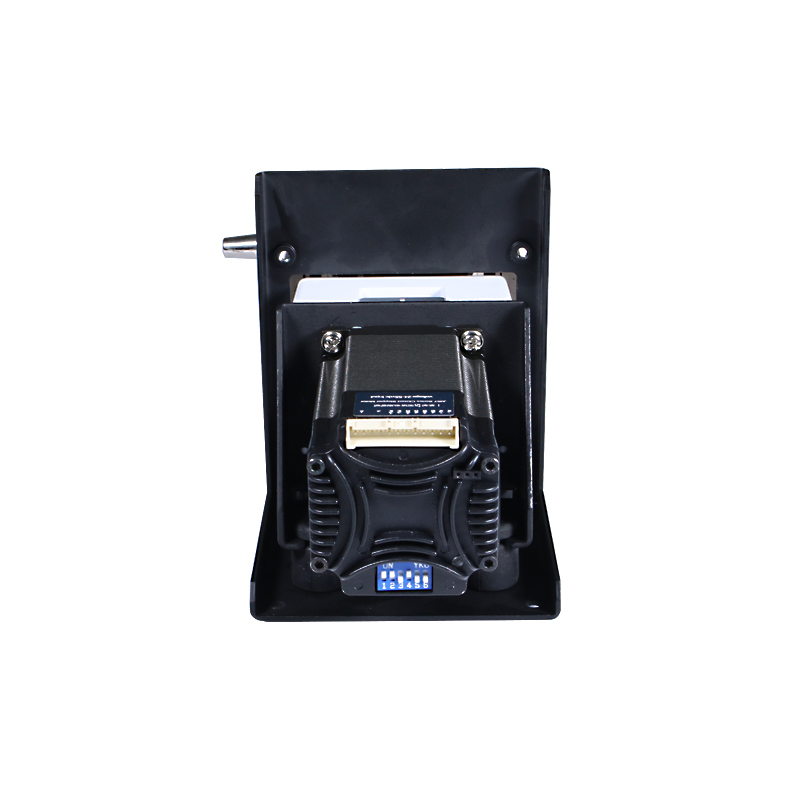

S600-2S Closed-loop Stepper Motor Control

Flow range: 0.002-6000mL/min; closed-loop stepper motor and driver integrated structure

Category:

Tags:

Flow range: 0.002-6000mL/min; closed-loop stepper motor and driver integrated structure

◆ Flow range: 0.002-6000mL/min
◆ Closed-loop stepper motor, integrated drive

◆ Applicable speed: 0.1-600rpm

◆ Input pulse and direction signal control

◆ Flow accuracy: ±1%

◆ Power supply: 24VDC-55VDC

Product Model	S100-2S		S600-2S
Applicable Pump Head	DG-A	DG-B	YZ15	YZ25	313D	DMD15	KZ25
Applicable Speed (rpm)	0.1-100		0.1-600
Reference Flow Rate (mL/min)	0.003-48	0.002-32	0.008-2400	0.17-1856	0.008-2400	0.013-3000	0.29-6000
Applicable Number of Channels	1, 2, 4, 6, 8, 12		1, 2, 3, 4		1	1, 2	1
Motor	Closed-loop stepper motor, integrated drive, servo control, high precision, no missed steps
Input Signal	Pulse and direction control signals, signal input interface compatible with 3.3V-28V
Speed Control Error	≤±0.2%
Applicable Power Supply	DC24V-DC55V
Working Environment	0-40℃, Relative Humidity: <80%
Weight	2000g

S600-2S+YZ15-HM

◆ High torque and overload capacity

◆ DC input voltage: 24VDC-55VDC

◆ Signal input interface compatible with 3.3V-28V

Product Model	Pump Head Roller Number	Optional Channels	Tubes	Speed Range (RPM)	Flow Range (mL/min)
S100-2S+DG-A	6	1, 2, 4, 6, 8, 12	0.6×1、1×1、2×1、3×1	0.1-100	0.003-38.89
S100-2S+DG-B	10	1, 2, 4, 6, 8, 12	0.6×1、1×1、2×1、3×1	0.1-100	0.002-28.97
S600-2S+YZ15	3	1, 2, 3, 4	13#14#19#16#25#17#18#	0.1-600	0.008-2400

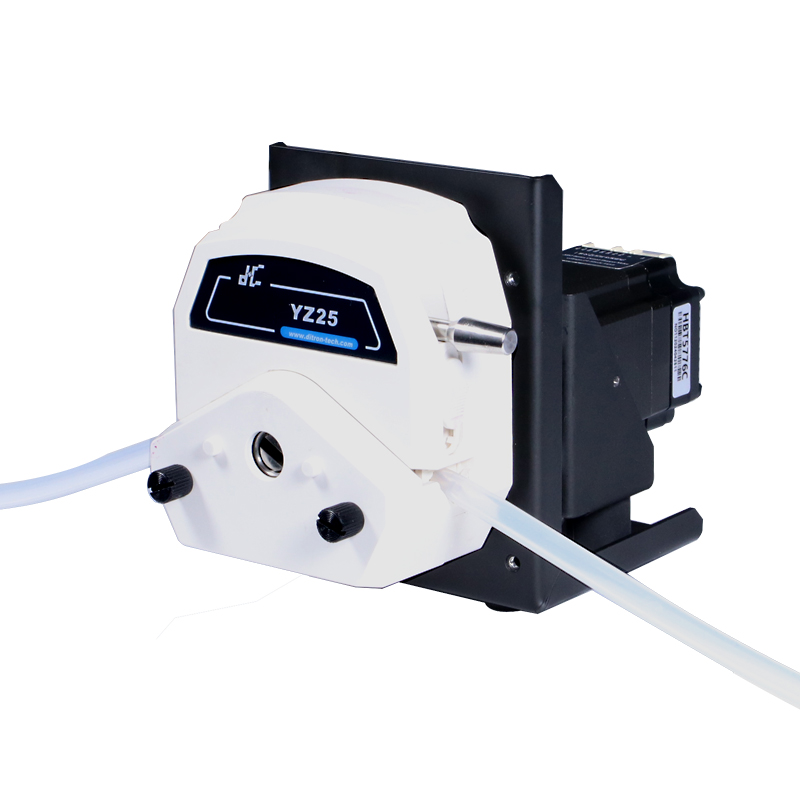

S600-2S+YZ25	3	1, 2, 3, 4	15#24#	0.1-600	0.17-1856
S600-2S+DMD15	3	1, 2	13#14#19#16#25#17#	0.1-600	0.013-3000
S600-2S+KZ25	3	1	15#24#35#36#	0.1-600	0.29-6000
