TH08 Miniature Peristaltic Pump
Category:
- Product Description
TH08 Miniature Peristaltic Pump
-
- Commodity name: TH08 Miniature Peristaltic Pump
Flow range: 0.002-31.2ml/min, applicable speed: ≤300rpm, very small peristaltic pump, easy to replace tubing, elastic squeeze tubing, long tubing life
Product Introduction
◆ Flow range: 0.002-31.2ml/min
◆ Applicable speed: ≤300rpm
◆ Very small peristaltic pump, easy to replace tubing◆ Elastic extrusion tubing, long tubing life
◆ TH08A 4-roller pump head has a larger flow rate, TH08B 8-roller pump head has lower pulsation
◆ Suitable for micro-flow liquid transmission, used for equipment matching
◆ Stepper motor, closed-loop stepper motor, DC motor optional
Technical Parameters

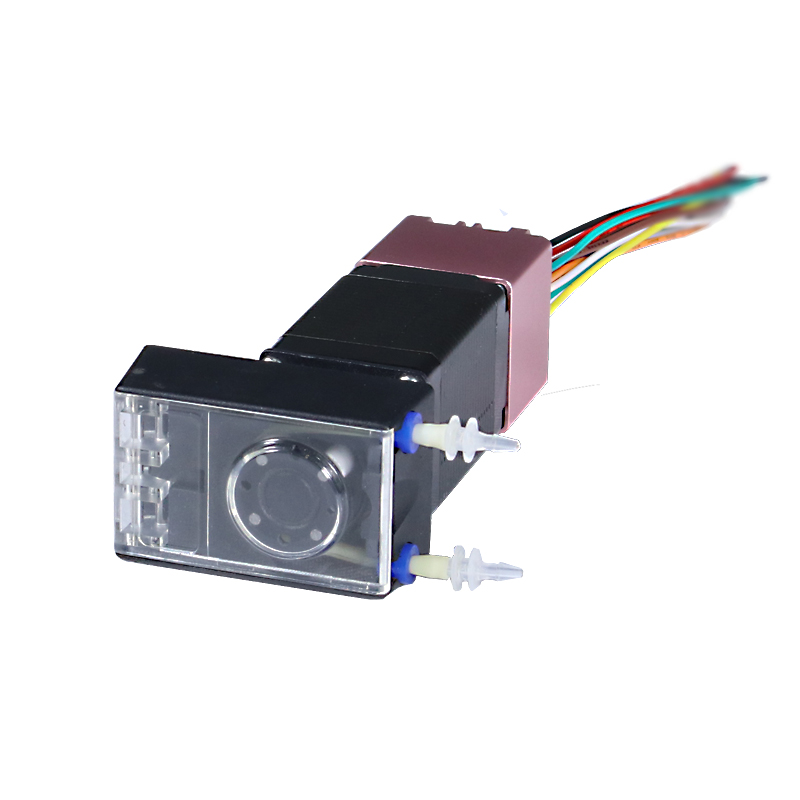

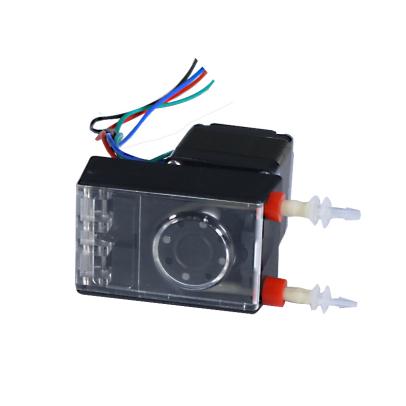

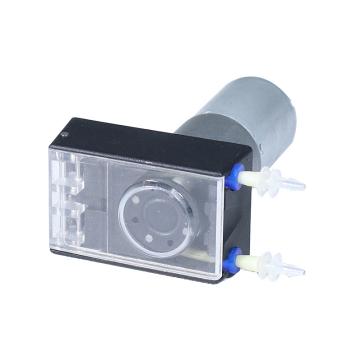

Product Model S100（300）-1B+TH08 S100（300）-1S+TH08 G-1Z+TH08 Product Image
Motor Type Stepper Motor Closed-loop Stepper Motor DC Motor Applicable Pump Head TH08A TH08B TH08A TH08B TH08A TH08B Number of Pump Head Rollers 4 8 4 8 4 8 Applicable Speed (rpm) 0.1-300 0.1-300 0.1-300 0.1-300 ≤300 ≤300 Reference Flow Rate (mL/min) 0.002-31.2 0.002-16.6 0.002-31.2 0.002-16.6 ≤31.2 ≤16.6 Applicable Number of Channels 1 1 1 Product Structure Separate pump head and circuit board structure Pump head, motor, and drive control integrated No control circuit required Product Features Easy to operate, high precision Low noise, high precision, no lost steps Fixed speed, easy installation and operation Internal speed control BCD DIP switch speed control None Fixed speed External signal speed control 0-10KHz、0-5V、0-10V、4-20mA 0-5V None Communication Control RS485 communication control RS485 communication control None Start/Stop Control Switch quantity control start/stop Direction Control Switch quantity control running direction Applicable Power Supply DC12-24V DC12-24V DC24V Working Environment 0-40℃, Relative humidity: <80% Reference Flow Rate
◆ TH08A Reference Flow Rate
4-roller pump head, larger flow rate
Tubing Model (Inner diameter * Wall thickness) Flow per revolution (ml/min) Speed (rpm) 10 20 30 50 80 100 150 200 250 300 0.76*0.85 0.020 0.20 0.40 0.60 1.00 1.60 2.00 3.00 4.00 5.00 6.00 1.02*0.85 0.034 0.34 0.68 1.07 1.70 2.72 3.40 5.10 6.80 8.50 10.2 1.52*0.85 0.068 0.68 1.36 2.14 3.40 5.44 6.80 10.2 13.6 17.0 20.4 2.06*0.85 0.104 1.04 2.08 3.12 5.20 8.3 10.4 15.6 20.8 26.0 31.2 ◆ TH08B Reference Flow Rate
8-roller pump head, lower pulsation

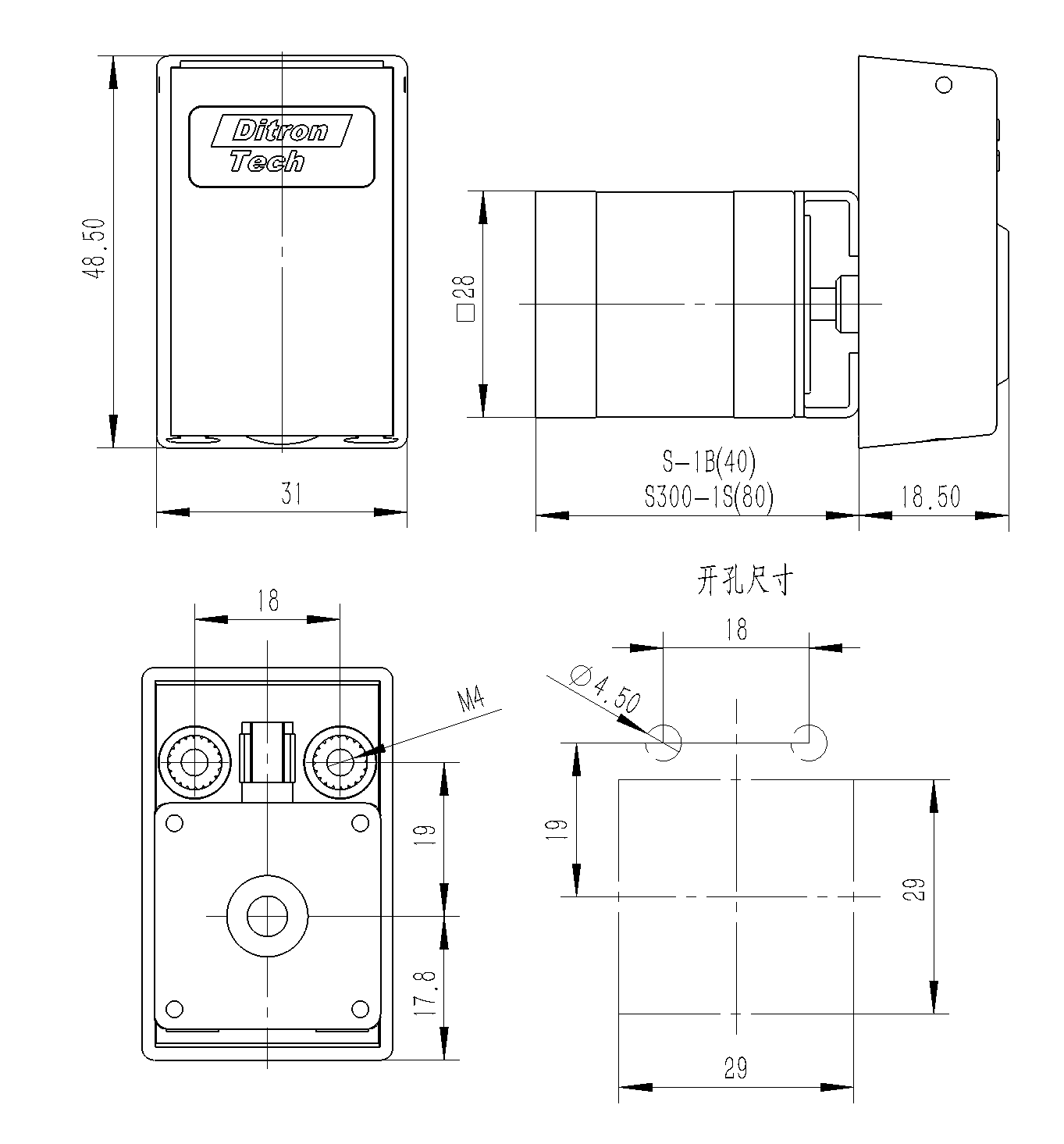

Tubing Model (Inner diameter * Wall thickness) Flow per revolution (ml/min) Speed (rpm) 10 20 30 50 80 100 150 200 250 300 0.76*0.85 0.0146 0.15 0.29 0.43 0.73 1.17 1.46 2.19 2.92 3.65 4.40 1.02*0.85 0.021 0.21 0.42 0.63 1.05 1.68 2.10 3.15 4.20 5.25 6.41 1.52*0.85 0.039 0.39 0.78 1.17 1.95 3.12 3.90 5.85 7.80 9.75 11.7 2.06*0.85 0.055 0.55 1.10 1.65 2.75 4.40 5.50 8.25 11.10 13.75 16.6 Dimensions
