KT25
Category:
- Product Description
KT25
-
- Commodity name: KT25
Flow range: 0.6-6000mL/min, pump body material: aviation aluminum alloy
Product Introduction
◆ Flow Range: 0.6-6000mL/min
◆ The pump body is made of aviation aluminum alloy, with high strength and stability
◆ Adaptive hose clamp structure, no manual intervention required, easier operation, cascading use of multiple pump heads is possible
Selection Guide
Pump Head Model Roller Material Number of Pump Head Rollers Applicable Tubing Applicable Speed (RPM) Flow Range (mL/min) Weight (KG) KT25 304 Stainless Steel 3 15# 0.2-600 0.6-1800 2.0 24# 1.07-3200 35# 1.5-4500 36# 2.0-6000 Tubing Installation

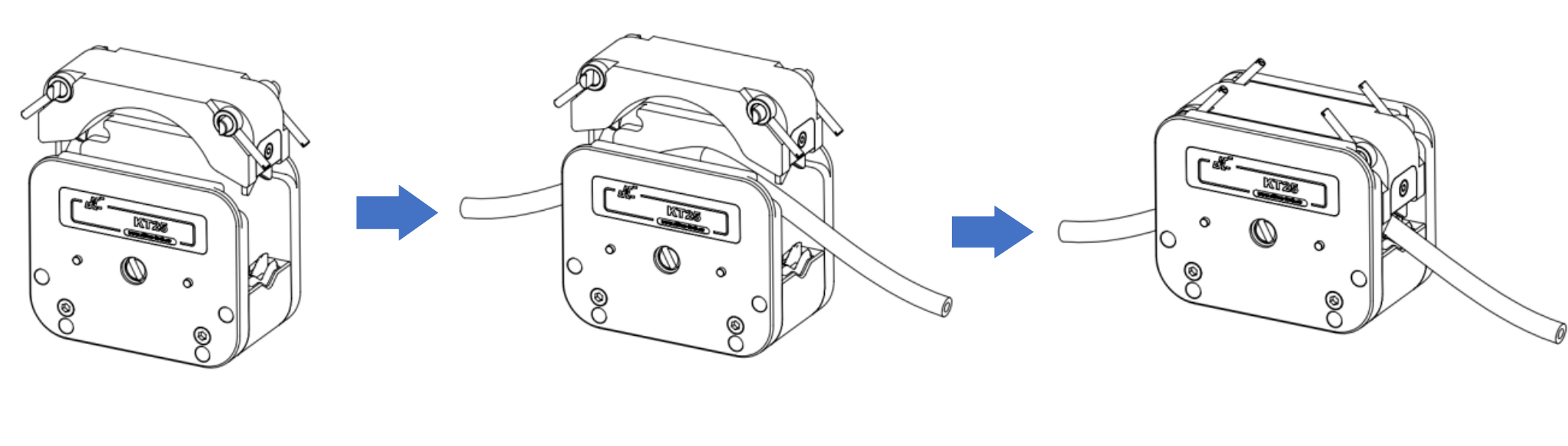

◆ Press down the levers on both sides to remove the pressure block
◆ Insert the tubing, ensuring it is naturally placed in the middle of the rollers
◆ Insert the pressure block, press down, and then press up on the levers on both sides to lock the pressure block. Installation is complete.

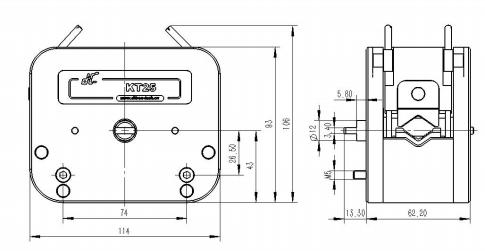

Dimensions
