LP01-1BH High-pressure Injection Pump
Category:
Tags:
- Product Description
LP01-1BH High-pressure Injection Pump
-
- Commodity name: LP01-1BH High-pressure Injection Pump
Single-channel perfusion/aspiration high-pressure injection pump; maximum thrust 600N; accommodates various specifications of stainless steel syringes, stainless steel injectors, and samplers
Product Introduction
◆ The LP01-1BH is a high-pressure, single-channel infusion/aspiration microliter syringe pump, suitable for high-precision transfer of high-viscosity, high-pressure liquids.
◆ Maximum thrust 600N
◆ Flow rate range: 0.764nl/min-120.73ml/min.
◆ Capable of accommodating different specifications of stainless steel syringes, injectors, or other syringes
◆ User-friendly human-machine interface: Large-screen LCD display, digital rotary knob and membrane buttons for easy and quick operation.
◆ 5 working modes: Infusion mode, aspiration mode, aspiration-infusion mode, infusion-aspiration mode, continuous mode.
◆ Power-off memory function: 1. EEPROM saves the setting parameters, and no re-setting is needed after power-on.
◆ Using a 485 communication bus, it can be connected to a host computer for control through the background software.
◆ External control interface: Has input/output control functions.
◆ Liquid volume calibration function: More accurate flow rate can be obtained through the calibration program.
Typical Applications
◆ Biological laboratories
◆ High-pressure, high-viscosity liquid transfer
Technical Parameters
Product Model LP01-1BH Microliter Syringe Pump Working Modes Infusion, Aspiration, Aspiration-then-Infusion, Infusion-then-Aspiration, Continuous Flow Rate Range 0.764nl/min-120.730ml/min Number of Syringes That Can Be Installed 1 Applicable Syringe Specifications 5uL-200mL Stroke Distance 140mm Stroke Resolution 0.156μm Linear Velocity Range 7.94 um/min-79.4mm/min (Flow rate = linear velocity × syringe inner cross-sectional area) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of stroke distance) Rated Linear Thrust ≥600N Syringe Selection Built-in syringes from major manufacturers and major models for selection Syringe Customization Inner diameter of syringe can be directly input Flow Rate Calibration Obtain more accurate liquid volume through calibration program Running Parameter Settings Dispensed liquid volume, injection time, etc. Display Parameter Selection Liquid volume, flow rate, or linear velocity Power-off Memory After power-on, you can choose whether to continue working according to the status before power-off Status Signal Output 2-channel OC gate signal output, used to indicate start/stop and direction status Control Signal Input 2-channel start/stop control input terminals, 1-channel falling edge trigger signal controls start/stop; 1-channel TTL level signal controls start/stop Communication Interface RS485 Dimensions 280×210×140(mm) Weight 7.5kg Power Supply AC 90V-260V/50W Working Environment Relative Humidity ＜80% Working Environment Temperature 0℃-40℃ Selection Guide

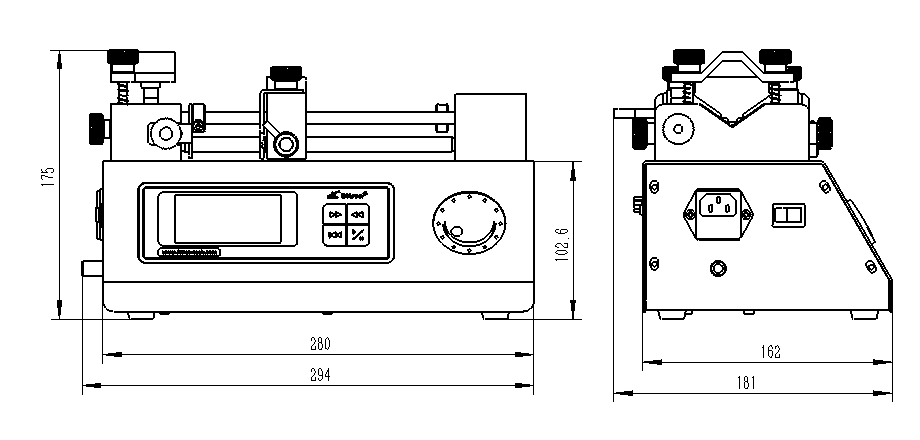

Syringe Pump Model Syringe Type Applicable Syringe (or Injector) Specifications Applicable Syringe Inner Diameter (mm) Reference Flow Rate Range (nl/min-ml/min) Outlet Pressure (MPa) LP01-1BH Injector 5ul 0.35 0.764-7.64 One 10μl 0.50 1.559-15.59 One 25μl 0.80 3.991-39.91 One 50μl 1.10 7.546-75.46 One 100μl 1.60 15.96-159.6 One 250μl 2.30 32.99-329.9 One 500μl 3.25 65.87-658.7 One 1000ul 4.61 132.5-1325 One Plastic Syringe 1ml 4.72 0.139-1.390 One 2ml 9.00 0.505-5.050 One 5ml 13.10 1.070-10.70 One 10ml 16.60 1.718-17.18 One 20ml 19.00 2.251-22.51 One 30ml 23.00 3.298-32.98 One 60ml 29.14 5.295-52.95 One Stainless steel syringe 6ml 9.4 0.551-5.510 9.55 20ml 19.05 2.263-22.631 2.11 50ml 28.6 5.101-51.008 0.75 100ml 34.9 7.595-75.956 0.49 200ml 44 12.073-120.730 0.35 Dimensions
