TSP-1A, TSP-1B single-channel intelligent injection pump
Category:
Tags:
- Product Description
TSP-1A, TSP-1B single-channel intelligent injection pump
-
- Commodity name: TSP-1A, TSP-1B single-channel intelligent injection pump
Flow range: 0.007nL/min-136.85mL/min, 4.3-inch HD touch screen, simple, clear, and easy to operate
Product Introduction
◆ TSP-1A is a single-channel infusion type syringe pump, while TSP-1B is a single-channel withdrawal/infusion type syringe pump, suitable for high-precision, low-flow liquid transfer.
◆ Flow rate range: 0.007nL/min-136.85mL/min
◆ Applicable syringes: 0.5uL-100mL
◆ Touch screen display: 4.3-inch high-definition touch screen, simple, clear, and easy to operate
◆ Syringe selection: Built-in specifications of major domestic and international manufacturers' syringes are available, and custom syringes are supported.
◆ Calibration function: Supports liquid volume calibration and stores calibration parameters.
◆ Parameter settings: Settings for parameters such as liquid volume, flow rate, infusion time, withdrawal time, interval time, and number of infusions.
◆ Working modes: Infusion, withdrawal, withdrawal-then-infusion, infusion-then-withdrawal, and continuous; five working modes are selectable.
◆ Multiple schemes can be pre-stored for easy access.
◆ Reminder function: When the set target liquid volume is reached, an audible alarm will sound.
◆ External control start/stop: External control level signal or contact signal can be used to achieve start/stop control.
◆ Communication control: RS485/USB optional
Typical Applications
◆ Biological laboratory
◆ Electrophysiology, chemistry, pharmaceuticals, etc.
◆ Micro-liquid infusion.
◆ Electrospinning
Technical Parameters
Product Model TSP-1A TSP-1B Working Mode Infusion Infusion, Withdrawal, Infusion/Withdrawal, Withdrawal/Infusion, Continuous Number of Channels 1 Travel Distance 150mm Syringe Specifications 0.5uL-100mL Linear Thrust 180N Step Resolution 0.0625um/ustep Linear Velocity Range 0.08um/min-160mm/min Travel Control Accuracy Error ≤ ±0.1% Touch Control Display 4.3-inch high-definition touch screen, easy to operate Language Types Chinese and English, 2 languages selectable Calibration Function Supports liquid volume calibration and stores calibration coefficients Syringe Selection Built-in syringes from major domestic and international manufacturers are selectable, and custom syringes are supported. Parameter Settings Liquid volume, flow rate, infusion time, withdrawal time, interval time, and number of infusions are settable and storable. Scheme Storage Pre-store multiple schemes for easy access. Reminder Function When the set target liquid volume is reached, an audible alarm will sound. External Control Function Start/stop control is controlled by an external signal or contact, control methods: high level, low level, pulse selectable. Communication Control RS485/USB optional, touch control address and baud rate. Applicable Power Supply Ac90—264V 50/60 Hz Working Environment Temperature: 0-40℃ Humidity 20%-80% RH No condensation Protection Level IP42 Dimensions 260*191*158（mm） Selection Guide
Syringe Pump Model Syringe Capacity Syringe Inner Diameter (mm) Reference Flow Rate Range (nL/min-mL/min) TSP-1A
TSP-1B

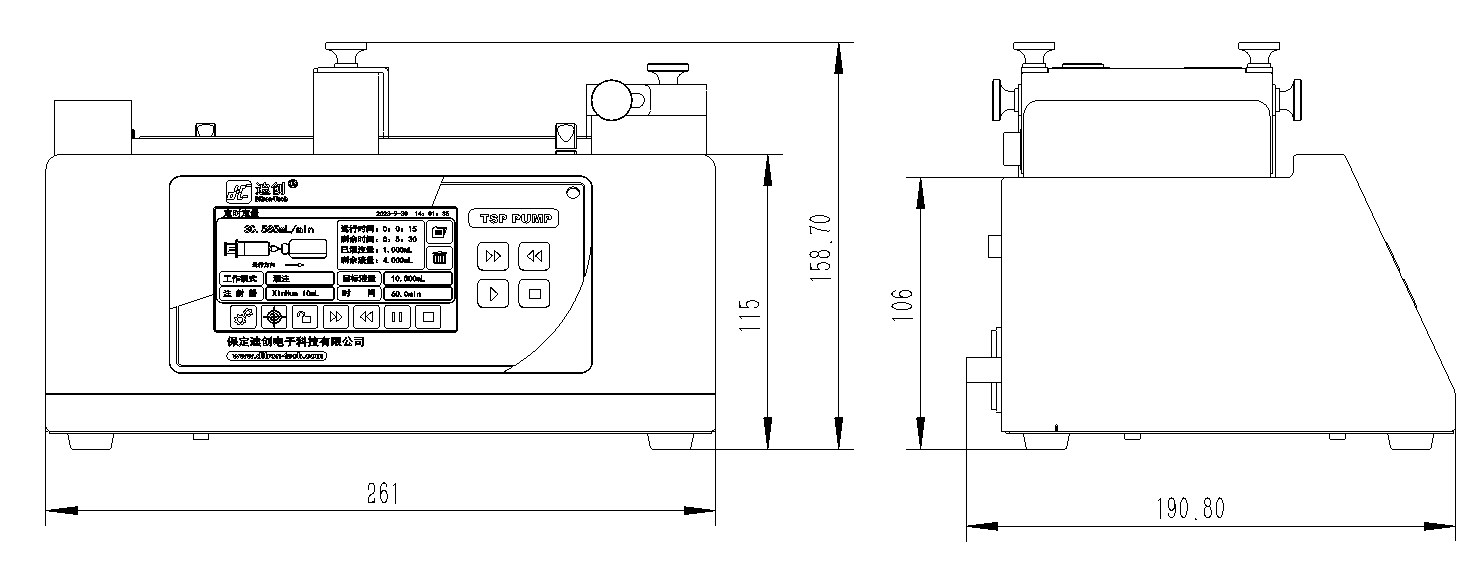

0.5μL 0.103 0.0007-0.0013 1μL 0.146 0.0013-0.0027 2μL 0.206 0.0027-0.0053 5 μL 0.343 0.0074-0.0148 10 μL 0.485 0.0148-0.0295 25 μL 0.729 0.0334-0.0668 50 μL 1.03 0.0667-0.1333 100μL 1.457 0.1334-0.2668 250 μL 2.304 0.3335-0.6671 500 μL 3.256 0.6658-1.3320 1ml 4.73 1.4060-2.8110 2ml 8.92 4.9990-9.9980 2.5ml 8.92 4.9990-9.9980 5ml 12.4 9.6620-19.3220 10ml 14.87 13.8940-27.7860 20ml 19.07 22.8500-45.6990 30ml 23.36 34.2870-68.5730 50ml 28.95 52.6600-105.3190 60ml 29.47 54.5680-109.1360 100ml 33.00 68.4230-136.85 Dimensions
