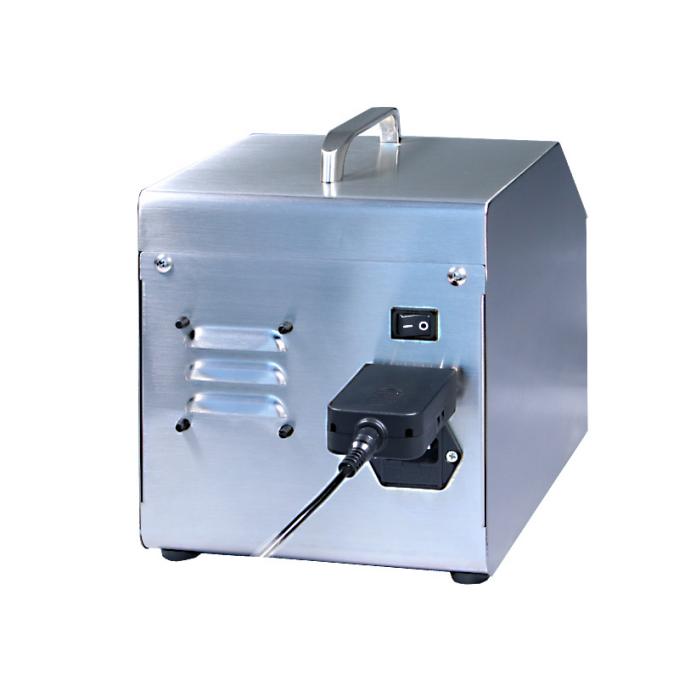

CL350S+DMD25
-
- Commodity name: CL350S+DMD25
Flow range: 2.38-4165 mL/min; Two operation modes: timed and constant flow; Industrial touch screen and film buttons operate synchronously, simple, convenient and fast;
Product Introduction
◆ Flow rate mode and timing/speed mode are available.
◆ Industrial touch screen and film keypad synchronous operation, simple, convenient and fast.
◆ Suitable for high-precision liquid transfer ≤6000mL/min.
◆ Servo motor drive, effectively ensuring liquid transfer accuracy.
◆ Adaptable to various pump heads to meet different needs, including KZ25, DMD25, YZ15, YZ25 pump heads.
◆ Liquid volume accumulation, appointment filling, multiple schemes can be preset for easy call.
◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal start/stop control, etc.
Typical Applications
◆ Industrial high-precision liquid transfer.
◆ Chemical reagent and medicinal liquid dispensing, such as diagnostic reagents and oral liquids.

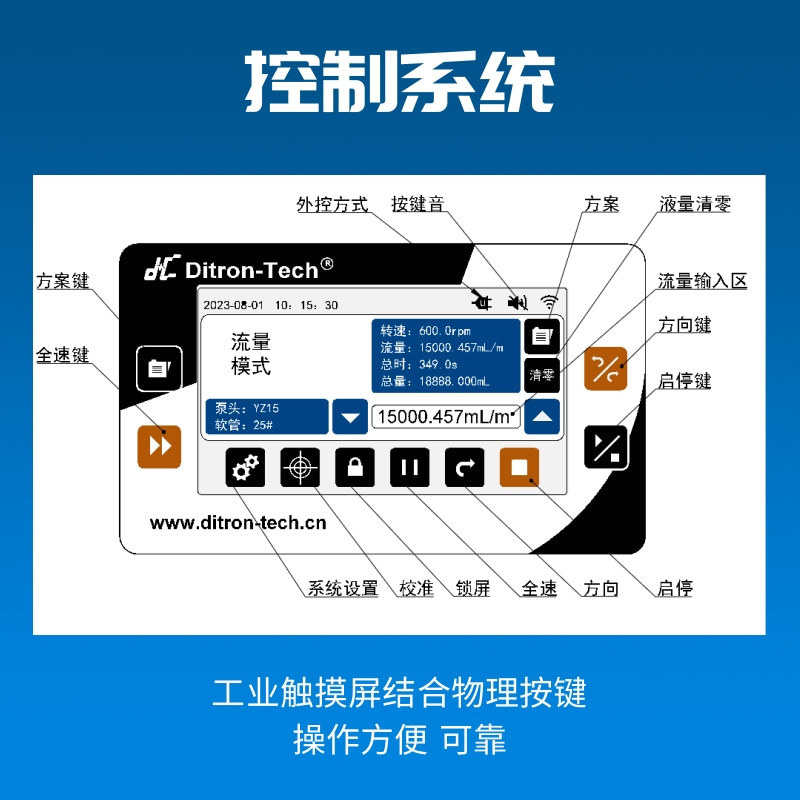

Control Panel
◆ Industrial touch screen combined with film keypad operation
Flow rate mode and timing/speed mode
Scheme, full speed, direction, start/stop four physical buttons, more convenient operation
◆ Flow Rate Mode
Set the flow rate, flow rate acceleration and deceleration functions, suitable for continuous high-precision liquid transfer.
Total liquid volume accumulation and total running time accumulation functions.
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration.
Scheme Storage and Recall Function
◆ Timing/Speed Mode
Set flow rate, running time, interval time, and number of runs, suitable for timed liquid transfer.
Total liquid volume accumulation and total running time accumulation functions.
Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration.
Scheme Storage and Recall Function
Technical Parameters
Driver Model CL600S CL350S Applicable Pump Head KZ25, YZ15, YZ25 DMD25 Flow Range 0.59-6000mL/min 0.09-4160mL/min Speed Range 0.2-600rpm 0.2-350rpm Pump Head Characteristics Suitable for large flow liquid transfer Special low-pulse pump head, suitable for high-precision liquid transfer Operating Mode Flow rate mode, timing/speed mode Liquid Volume Accumulation Total liquid volume accumulation and reset function Time Accumulation Total running time accumulation and reset function Scheme Storage Save the current running scheme for easy recall. Flow Rate Calibration Input the measured flow rate, automatic calibration, achieve higher precision liquid transfer. Back Suction Speed Setting Set the back suction speed to prevent dripping after shutdown, speed range 10-300rpm Back Suction Angle Setting Set the back suction angle to prevent dripping after shutdown, angle range 10-720°, can be set to 0 Screen Lock Function Lock the screen to prevent accidental touching or arbitrary parameter changes. Full Speed Function Fast liquid filling and emptying hose Direction Control Liquid transfer direction control Appointment Start Set date and time to start the appointment. Timed Start Start at the set time. Language Setting Chinese and English interface switching Factory Reset Factory reset function Speed Control Accuracy Error ≤0.2% External Signal Input 0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode) Start/Stop Control External signal start/stop control, switch quantity and voltage mode optional Foot Switch Optional foot switch to control start/stop Communication Function Uses Modbus RTU communication protocol Running Time 0.1s-9999.9Hr Interval Time 0.1s-9999.9Hr Operating Method 4.3-inch industrial touch screen combined with film keypad Number of Runs 0-99999 times (0 for infinite loop) Operating Environment Temperature 0-40℃, relative humidity <80% Applicable Power Supply AC90-260V, 50/60Hz Driver Dimensions 230x167x206mm Weight 5.5kg Protection Level IP31 External Signal Control
◆ In flow mode, speed control via 0-5V, 0-10V, 4-20mA, 0-10KHz external signals;
◆ RS485 communication control, using Modbus RTU communication protocol;
◆ Start/stop control, start/stop control via switch or voltage signal, or start/stop control via foot switch
Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Number of Channels
Tubing
Speed Range (RPM)
Flow Rate Range (mL/min)
CL600S
KZ25
3
1,2
15#
0.2-600
0.016-46.1
24#
0.054-178.1
35#
0.104-336.9
36#
0.172-556.2
DMD25
6
1
1.6×2.4
0.2-350
0.086-150.4
3.2×2.4
0.46-805
2*15#
0.86-1505
2*24#
1.37-2397
2*35#
1.68-2950
2*36#
2.38-4165

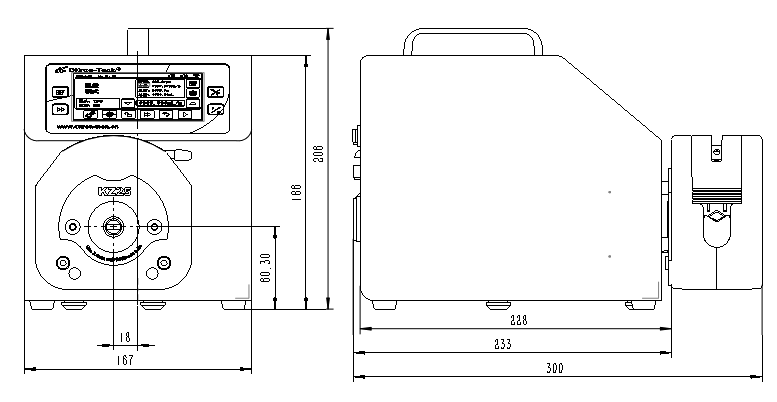

Dimensions
