S300-1S+114DV
-
- Commodity name: S300-1S+114DV
Flow range: 0.005-560ml/min; Applicable speed: ≤600rpm; Flip-top structure, quick hose replacement
Product Introduction
◆ Flow range: 0.005-560ml/min
◆ Applicable speed: ≤600rpm (＞400rpm, intermittent operation)
◆ Flip-top structure, quick and easy hose replacement◆ Elastic squeeze hose, long hose life
◆ The 114DV 4-roller pump head has a larger flow rate, and the 116DV 6-roller pump head has lower pulsation.
◆ Easy installation, suitable for equipment matching
◆ Conventional stepper motor, closed-loop stepper motor optional
Technical Parameters

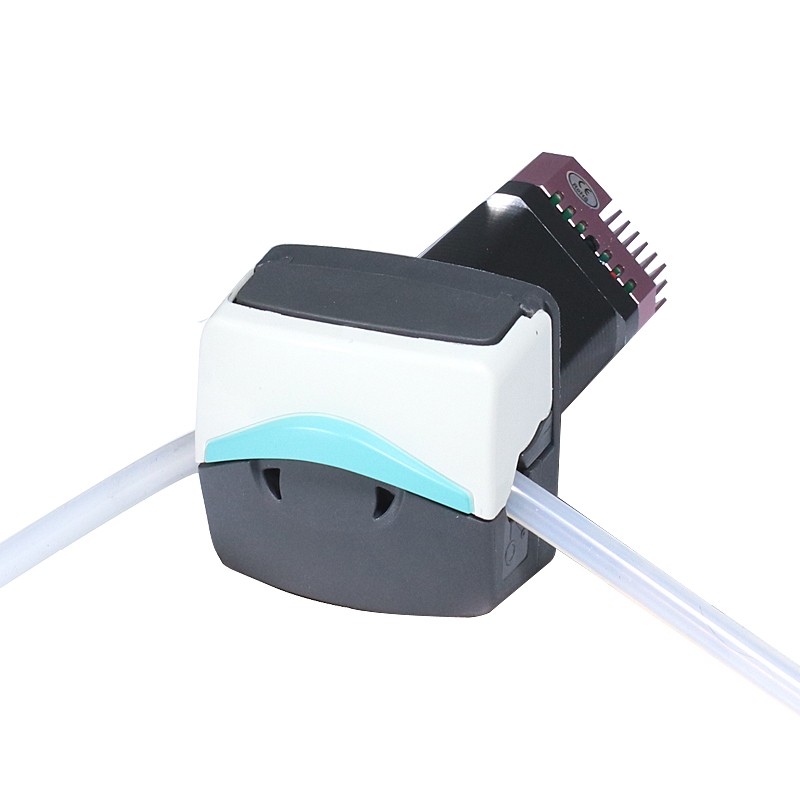

Product Model S300-1B S300-1S Product Image
Motor Type Stepper Motor Closed-loop Stepper Motor Applicable Pump Head 114DV 116DV 114DV 116DV Number of Pump Head Rollers 4 6 4 6 Applicable Speed (rpm) 0.1-300 0.1-300 0.1-600 (>400rpm intermittent operation) 0.1-300 Reference Flow Rate (mL/min) 0.005-279.9 0.005-170 0.005-560 0.005-170 Applicable Number of Channels 1 Applicable Hose 13#, 14#, 19#, 16#, 25# 13#, 14#, 19#, 16#, 25# Product Structure Separate pump head and circuit board structure Pump head, motor, and drive control integrated Product Features Easy operation, high precision Low noise, high precision, no missed steps Internal speed control BCD DIP switch speed control None External signal speed control 0-10KHz, 0-5V, 0-10V, 4-20mA 0-5V Communication Control RS485 communication control RS485 communication control Start/Stop Control Switch quantity control start/stop Direction Control Switch quantity control operating direction Applicable Power Supply DC12-24V DC12-24V Working Environment 0-40℃, relative humidity: <80% Soft Installation
Control Circuit

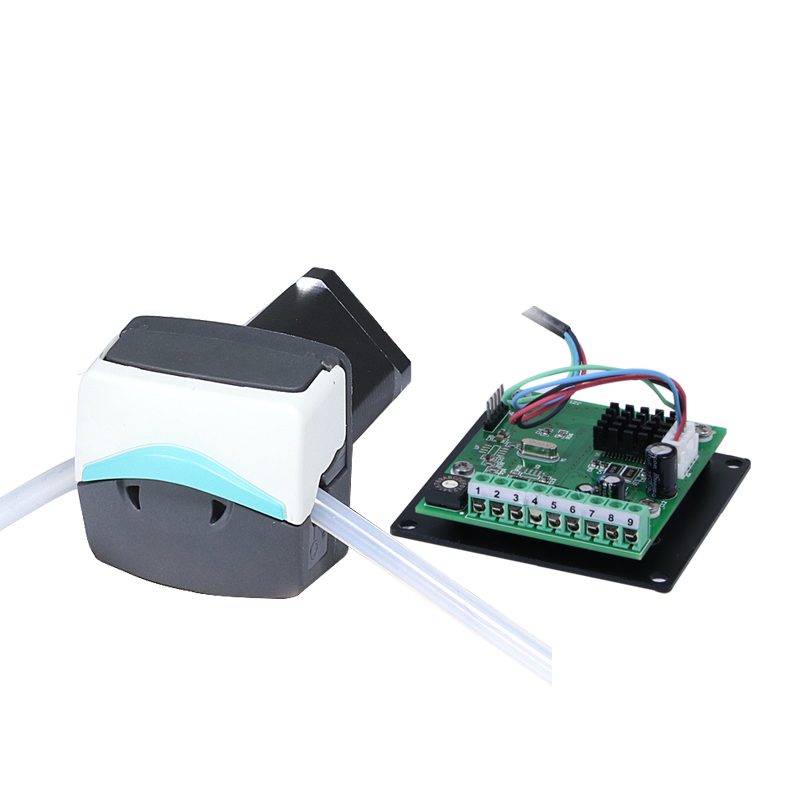

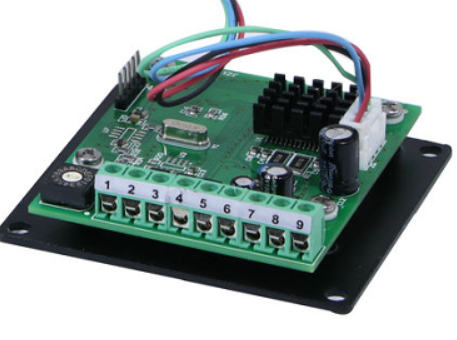

◆ S300-1B+114DV control board
◆ BCD coded switch 15-speed control
◆ The BCD coded switch is set to "0" for external signal control.
◆ Terminals 1 and 2 are RS485 communication control input terminals, 1 is positive, and 2 is negative.
◆ Terminals 3 and 4 are external signal input terminals, 3 is positive, and 4 is negative. External signals include: 0-10KHz, 0-5V, 0-10V, 4-20mA, choose one.
◆ Terminals 5 and 7 control start/stop. Floating or open, the pump runs; closed, the pump stops.
◆ Terminals 6 and 7 control direction. Floating or open, the pump runs clockwise; closed, the pump runs counterclockwise.
◆ Terminals 8 and 9 are the power input terminals, 9 is positive, and 8 is negative. DC24V is recommended.
Reference Flow Rate
114DV Speed Average flow rate ml/min Speed Average flow rate ml/min rpm 13# 14# 19# 16# 25# rpm 13# 14# 19# 16# 25# 10 0.47 1.42 2.93 5.08 9.33 150 6.99 21.3 43.95 76.2 139.95 20 0.93 2.84 5.86 10.16 18.66 200 9.32 28.4 58.6 101.6 186.6 30 1.40 4.26 8.79 15.24 27.99 250 11.65 35.5 73.25 127 233.25 40 1.86 5.68 11.72 20.32 37.32 300 13.98 42.6 87.9 152.4 279.9 50 2.33 7.10 14.65 25.40 46.65 350 16.31 49.7 102.55 177.8 326.55 60 2.80 8.52 17.58 30.48 55.98 400 18.64 56.8 117.2 203.2 373.2 70 3.26 9.94 20.51 35.56 65.31 450 20.97 63.9 131.85 228.6 419.85 80 3.73 11.36 23.44 40.64 74.64 500 23.30 71 146.5 254 466.5 90 4.19 12.78 26.37 45.72 83.97 550 25.63 78.1 161.15 279.4 513.15 100 4.66 14.2 29.3 50.8 93.3 600 28.00 85 176 305 560 Dimensions

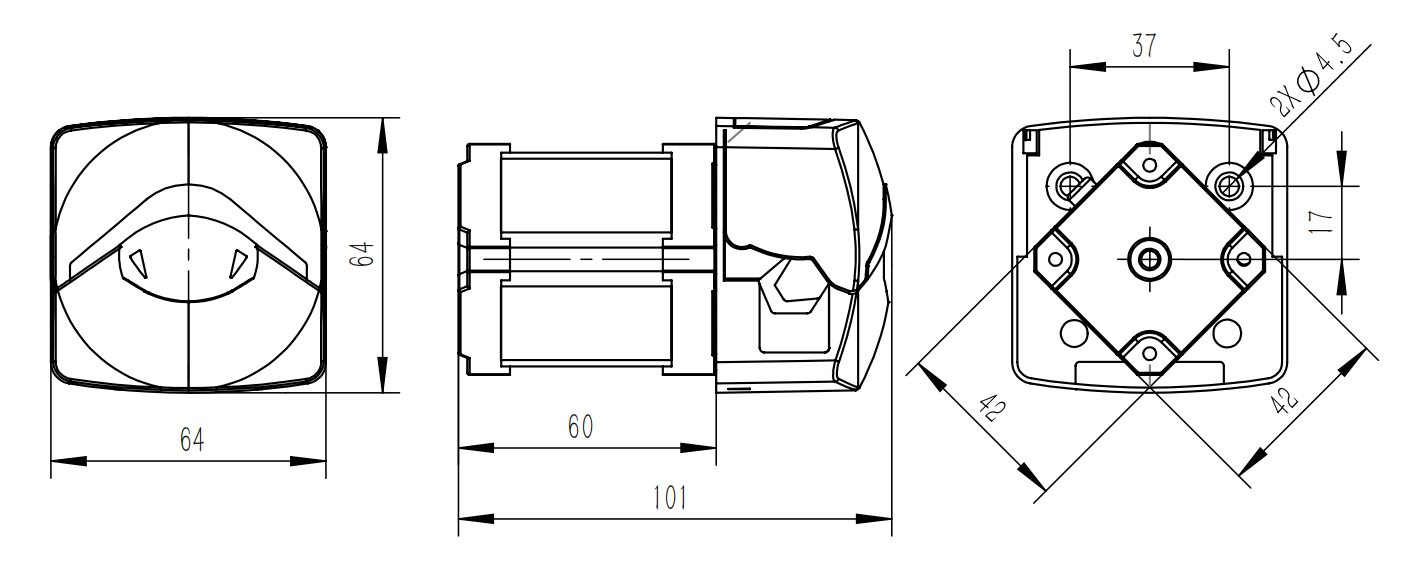

◆ S300-1B+114DV Dimensions
