JZ25 series
Flow range: 2.1-4200ml/min; Speed: ≤600rpm; Optional DC geared motor, stepper motor, and closed-loop stepper motor, suitable for supporting equipment, liquid transfer and filling
Category:
- Product Description
JZ25 series
-
- Commodity name: JZ25 series
Flow range: 2.1-4200ml/min; Speed: ≤600rpm; Optional DC geared motor, stepper motor, and closed-loop stepper motor, suitable for supporting equipment, liquid transfer and filling
Product Introduction
◆ Flow Range: 2.1-4200ml/min
◆ Applicable Speed: ≤600rpm
◆ DC geared motor, stepper motor, closed-loop stepper motor optional◆ Suitable for supporting equipment, liquid transfer and filling
◆ Technical Parameters

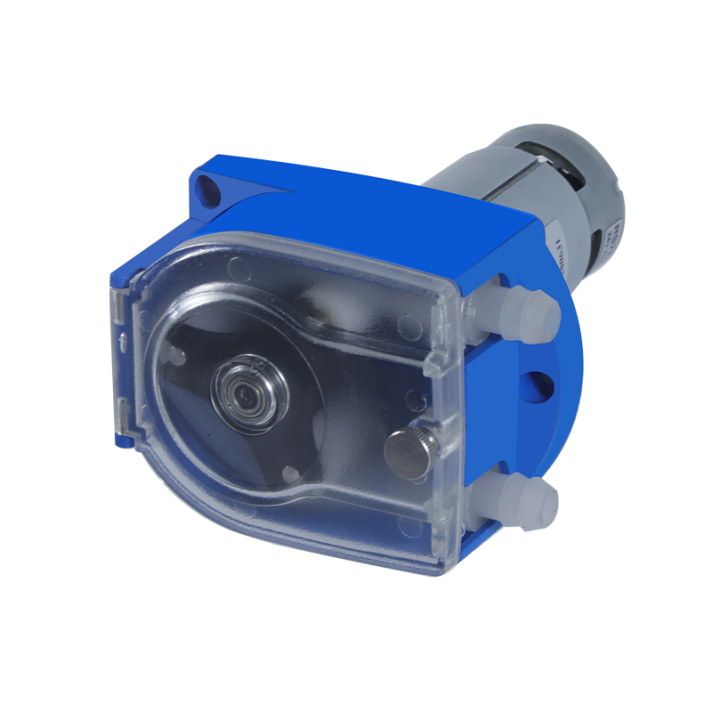

Product Model G500-2Z+JZ25 G600-1Z+JZ25 S-1B+JZ25 S-1S+JZ25 Product Image
Motor Type DC Motor DC Geared Motor Stepper Motor Closed-Loop Stepper Motor Applicable Number of Channels 1 Applicable Tubing 15#, 24#, 35#, 36# Pump Head Roller Number 3 Applicable Speed (rpm) 500 600 ≤600 ≤600 Reference Flow (mL/min) 3500mL/min 4200mL/min ≤4200mL/min ≤4200mL/min Product Structure Pump head and motor are directly connected Pump head and motor are directly connected Pump head and motor are directly connected Pump head, motor, and drive are integrated Product Features Fixed speed, optional DC motor speed control board for speed adjustment Fixed speed, long life, low noise, optional DC motor speed control board for speed adjustment High precision, long life, requires matching stepper motor driver for control Low noise, high precision, no missed steps Internal Speed Control None None Pulse Control External Signal Speed Control None Communication Control None Start-Stop Control Power On/Off None Direction Control Change the wiring order None Applicable Power Supply DC24V DC24V DC24V-50V Operating Environment 0-40℃, Relative Humidity: <80% Reference Flow

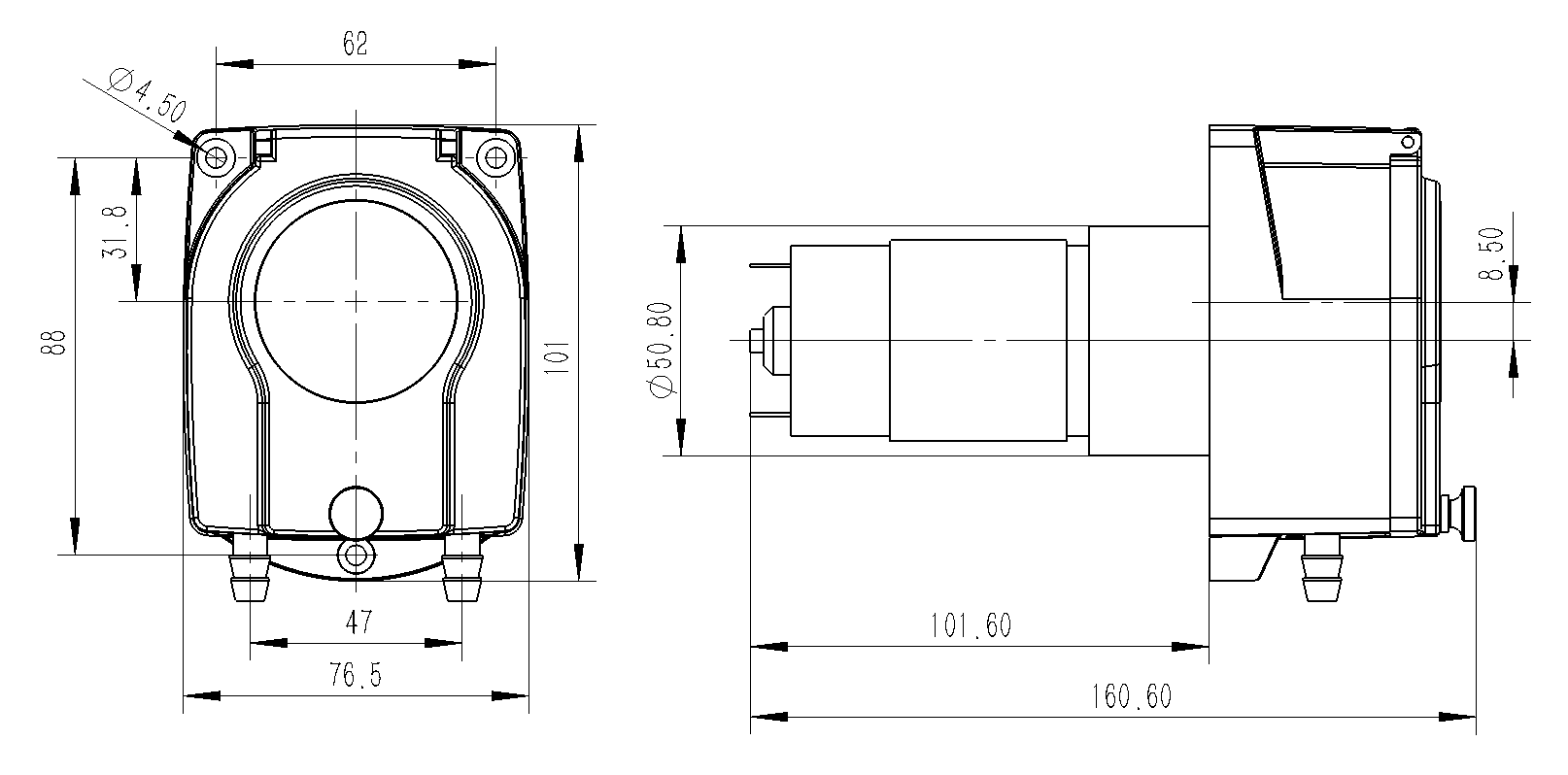

JZ25 Speed Reference Flow ml/min Speed Reference Flow ml/min rpm 15# 24# 35# 36# rpm 15# 24# 35# 36# 10 23.3 43.3 58.3 73.3 150 349.5 649.5 874.5 1099.5 20 46.6 86.6 116.6 146.6 200 466 866 1166 1466 30 69.9 129.9 174.9 219.9 250 582.5 1082.5 1457.5 1832.5 40 93.2 173.2 233.2 293.2 300 699 1299 1749 2199 50 116.5 216.5 291.5 366.5 350 815.5 1515.5 2040.5 2565.5 60 139.8 259.8 349.8 439.8 400 932 1732 2332 2932 70 163.1 303.1 408.1 513.1 450 1048.5 1948.5 2623.5 3298.5 80 186.4 346.4 466.4 586.4 500 1165 2165 2915 3665 90 209.7 389.7 524.7 659.7 550 1281.5 2381.5 3206.5 4031.5 100 233 433 583 733 600 1398 2598 3500 4398 Dimensions
