BT100-1L+DG
Category:
Tags:
- Product Description
BT100-1L+DG
-
- Commodity name: BT100-1L+DG
Flow range: 0.00026-48mL/min. DG series pump heads are suitable for micro flow and multi-channel high-precision delivery.
Product Introduction
◆ Flow range: 0.00026-48mL/min
◆ DG series pump heads are suitable for micro-flow high-precision conveying
◆ Flow and speed are displayed on the same screen, flow calibration
◆ Membrane keypad with imported encoder control, more convenient and reliable
◆ Flow accuracy can reach ±0.5%
◆ 304 stainless steel shell
Typical Applications
◆ Laboratory applications, pharmaceutical machinery matching
Control Panel

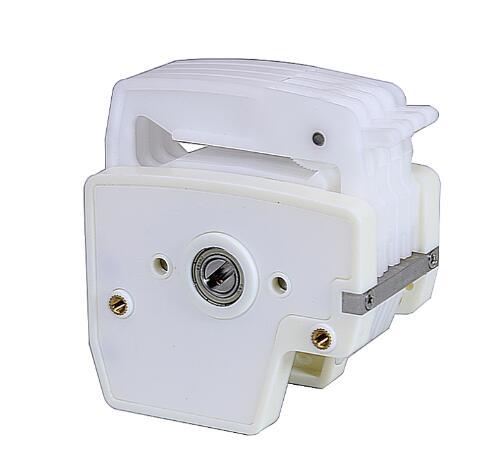

Peristaltic Pump Head

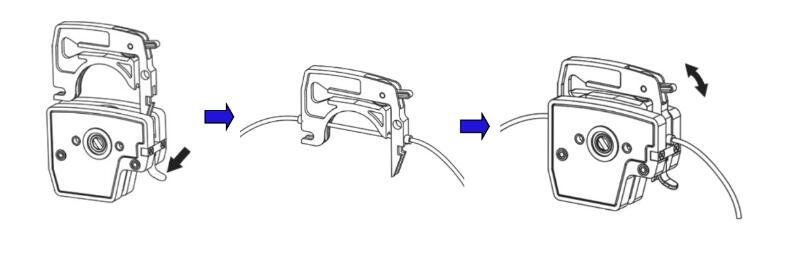

Tube Installation
◆ Press the push button (DG-1A, DG-1B including the button) or the corner of the card to remove the card
◆ Place the tube in the card groove, and the two ends of the STOP will fix the tube on the card. The distance between STOPs is required to be 72mm to ensure the consistency of the flow rate of each channel
◆ Insert the cards with the tubes installed into the pump body in sequence to complete the tube installation

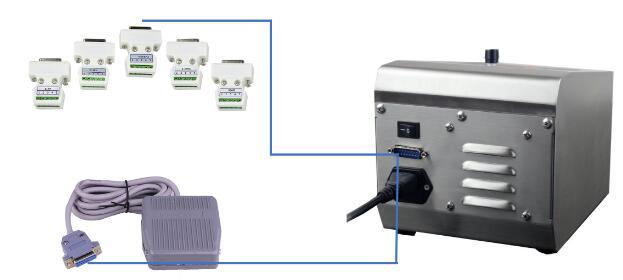

External Signal Control
◆ Optional 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485 communication module, external signal control
◆ Optional foot switch to control start and stop
Technical Parameters
Product Model BT100-1L Speed Adjustment Range 0.1-100RPM Speed Resolution 0.1RPM Display Function 128×32 graphic dot matrix LCD display, flow and speed displayed on the same screen Direction Control Reversible operation function Operation Method Rotary encoder switch with membrane keypad operation, more convenient for users Full Speed Function The full speed button can be used for quick filling and emptying of the pipeline Power-off Memory Function After power-on, continue running according to the state before power-off Calibration Function With automatic flow calibration function, convenient and fast operation External Control Function Optional different models of external control modules, can perform start/stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional Communication Function Optional communication module, RS485 communication control can be performed (using the general Modbus protocol) Output Function Start/stop, direction output, frequency output 0-10KHz, OC gate output Foot Switch Function Optional foot switch to control start and stop Power Consumption 35W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Working Environment 0-40℃, humidity <80% non-condensing Driver Weight 3.8KG Protection Level IP31 Selection Guide
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tube
Speed Range (RPM)
Flow Range (mL/min)
BT100-1L
DG-1
(2,4,6)A
6
1,2,4,6,
8,12
0.6×1
0.01-100
0.0003-3.27
1×1
0.0007-6.45
2×1
0.002-20.60
3×1
0.004-37.5
DG-1
(2,4,6)B
10
1,2,4,6,
8,12
0.6×1
0.01-100
0.00026-2.64
1×1
0.0006-5.96
2×1
0.0017-16.19
3×1
0.0028-27.65
Dimensions
Operation Video
