Turn the lever counterclockwise 180°, lift the pressure block
BT100(300,600)-1L+YZ15
Flow range (mL/min): BT100-1L (0.008-460); BT300-1L (0.008-1330); BT600-1L (0.008-2400); Flow and speed displayed on the same screen, flow calibration
Category:
Tags:
- Product Description
BT100(300,600)-1L+YZ15
-
- Commodity name: BT100(300,600)-1L+YZ15
Flow range (mL/min): BT100-1L (0.008-460); BT300-1L (0.008-1330); BT600-1L (0.008-2400); Flow and speed displayed on the same screen, flow calibration
Product Introduction
◆ Flow Range: BT100-1L+YZ15: 0.008-460mL/min
BT300-1L+YZ15: 0.008-1330mL/min
BT600-1L+YZ15: 0.008-2400mL/min
◆ Flow and speed displayed simultaneously, flow calibration
◆ Membrane keypad with imported encoder control, more convenient and reliable
◆ Flow accuracy up to ±0.5%
◆ 304 stainless steel casing
Typical Applications
◆ Laboratory applications, pharmaceutical machinery

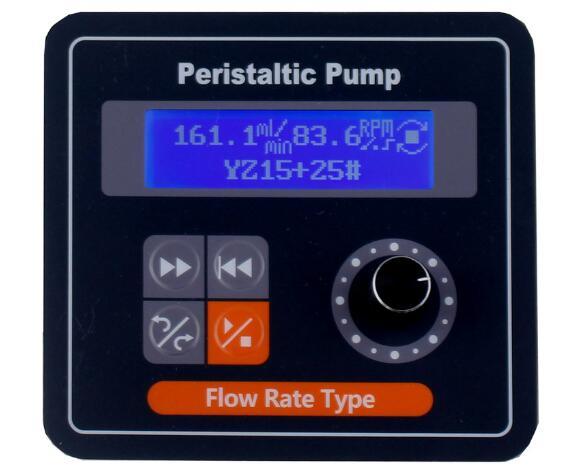

Control Panel

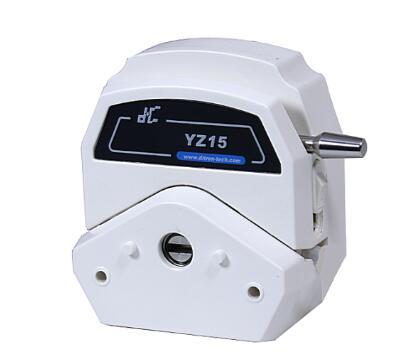

Peristaltic Pump Head
Tube Installation
Place the tube naturally between the roller and the upper pressure block
Turn the lever clockwise 180°, press the pressure block into place, and complete the tube installation

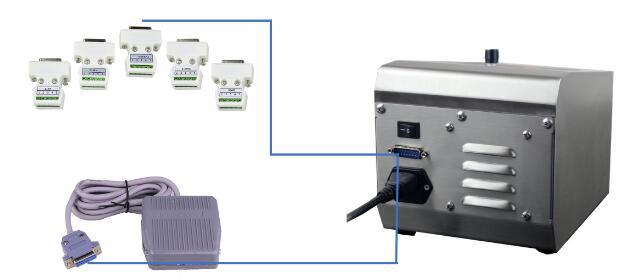

External Signal Control
◆ Optional 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485 communication module, external signal control
◆ Optional foot switch to control start/stop
Technical Parameters
Driver BT100-1L BT300-1L BT600-1L Flow Range (mL/min) 0.0008-460 0.0008-1330 0.0008-2400 Speed Range (rpm) 0.01-100 0.01-300 0.01-600 Applicable Pump Head YZ15 series Number of Channels 1,2 Speed Resolution 0.1 (＜100RPM), 1 (≥100RPM) Display Function 128×32 graphic dot matrix LCD display, flow and speed displayed simultaneously Direction Control Reversible rotation function Operation Method Rotary encoder switch with membrane keypad operation, more convenient for users Full Speed Function Fast filling and emptying of the pipeline can be achieved through the full speed button Power-off Memory Function After power-on, continue running according to the pre-power-off status Calibration Function With automatic flow calibration function, convenient and fast operation External Control Function Optional different models of external control modules, can perform start/stop control, direction control, flow control, 0-5V, 0-10V, 4-20mA, 0-10KHz 4 types of external control modules are optional Communication Function Optional communication module, RS485 communication control (using common Modbus protocol) Output Function Start/stop, direction output, 0-10KHz frequency output, OC gate output Foot Switch Function Optional foot switch to control start/stop Power Consumption 35W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Operating Environment 0-40℃, humidity <80% non-condensing Driver Weight 3.8KG Protection Level IP31 Selection Guide
Driver
Applicable Pump Head
Optional Number of Pump Heads
Tube
Flow Range (mL/min)
BT100-1L YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-460 YZ25 1,2 15#,24# 0.17-270 BT300-1L YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-1300 YZ25 1,2 15#,24# 0.17-870 BT600-1L YZ15 1,2 13#,14#,19#,16#,25#,17#,18# 0.0008-2400 YZ25 1,2 15#,24# 0.17-1770 Dimensions
