LSP01-1A, LSP01-1B single-channel injection pumps
Category:
Tags:
- Product Description
LSP01-1A, LSP01-1B single-channel injection pumps
-
- Commodity name: LSP01-1A, LSP01-1B single-channel injection pumps
Single-channel perfusion/aspiration injection pump, mainly used in biological laboratories, integrated structure.
Product Introduction
◆ Working Mode: LSP01-1A (Infusion Mode)
LSP01-1B (Infusion Mode, Extraction Mode, Extraction-Infusion Mode, Continuous Mode)
◆ Mainly used in biological laboratories, with an integrated structure.
◆ It can accommodate syringes (injectors) of different specifications and is suitable for high-precision, low-flow liquid transfer.
◆ Flow Range: 0.001ul/min-86.99ml/min.
◆ Syringe Inner Diameter Input Function: You can select the syringe from the list or directly input the syringe inner diameter.
◆ The micro-syringe pump has a user-friendly interface: large-screen LCD display, digital rotary knob and membrane button for easy and quick operation.
◆ Power-off Memory Function: 1. EEPROM saves the settings, and no re-setting is needed after power-on. 2. When the power is off during operation in flow mode,
◆ it can continue to run or stop according to the set parameters after power restoration.
◆ Jam Protection Function: When the injection pump's propulsion mechanism is blocked during operation, the injection pump will stop the propulsion mechanism and sound a buzzer alarm.
◆ Using a 485 communication bus, it can be connected to a host computer for control via the background software.
◆ External Control Interface: Has input/output control functions.
◆ Liquid Volume Calibration Function: A more accurate flow rate can be obtained through the calibration procedure.
◆ Syringe Protection Function: By adjusting the position of the limit block, syringe damage can be prevented.
Typical Applications
◆ Biological Laboratories
◆ Electrophysiology, Chemistry, Pharmaceuticals, etc.
◆ Micro-liquid infusion, electrospinning

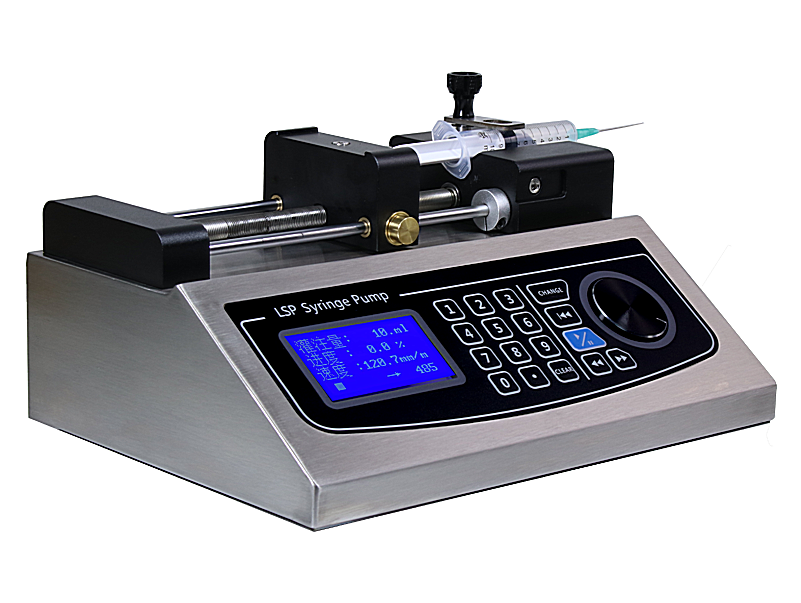

Operation Panel
Technical Parameters
Product Model LSP01-1A LSP01-1B Product Image Working Mode Infusion Infusion, Extraction, Extraction then Infusion, Infusion then Extraction, Continuous Syringe Specifications 10ul-60ml Flow Range 0.001ul/min-86.99ml/min Number of Syringes that can be installed 1 Stroke Distance 140mm Stroke Resolution 0.156μm Linear Velocity Range 5μm/min-65mm/min (Flow Rate = Linear Velocity × Syringe Cross-sectional Area) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of stroke distance) Rated Linear Thrust >250N Syringe Selection Built-in selection of syringes from major manufacturers and models Syringe Customization Syringe inner diameter can be directly input Flow Rate Calibration Obtain a more accurate liquid volume through the calibration procedure Operating Parameter Setting Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate, or linear velocity Power-off Memory After power-on, you can choose whether to continue working according to the previous state before power-off Status Signal Output 2-channel OC gate signal output, used to indicate start/stop and direction status Control Signal Input 2 start/stop control input terminals, 1 falling edge trigger signal controls start/stop; 1 TTL level signal controls start/stop Communication Interface RS485 Dimensions 280×210×140(mm) Weight 3.6kg Power Supply AC 90V-260V/15W Relative Humidity of Working Environment <80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe (or Injector) Specifications
Applicable Syringe Inner Diameter (mm)
Reference Flow Range (μl/min-ml/min)
LSP01-1A
LSP01-1B
10μl
0.50
0.001-0.0255
25μl
0.80
0.0025-0.0653
50μl
1.10
0.0048-0.1235
100μl
1.60
0.0101-0.2614
250μl
2.30
0.0208-0.5401
500μl
3.25
0.0415-1.0784
1ml
4.72
0.0875-2.2747
2ml
9.00
0.3181-8.2702
5ml
13.10
0.6739-17.522
10ml
16.60
1.0821-28.135
20ml
19.00
1.4176-36.859
30ml
23.00
2.0774-54.012
60ml
29.14
3.3346-86.699

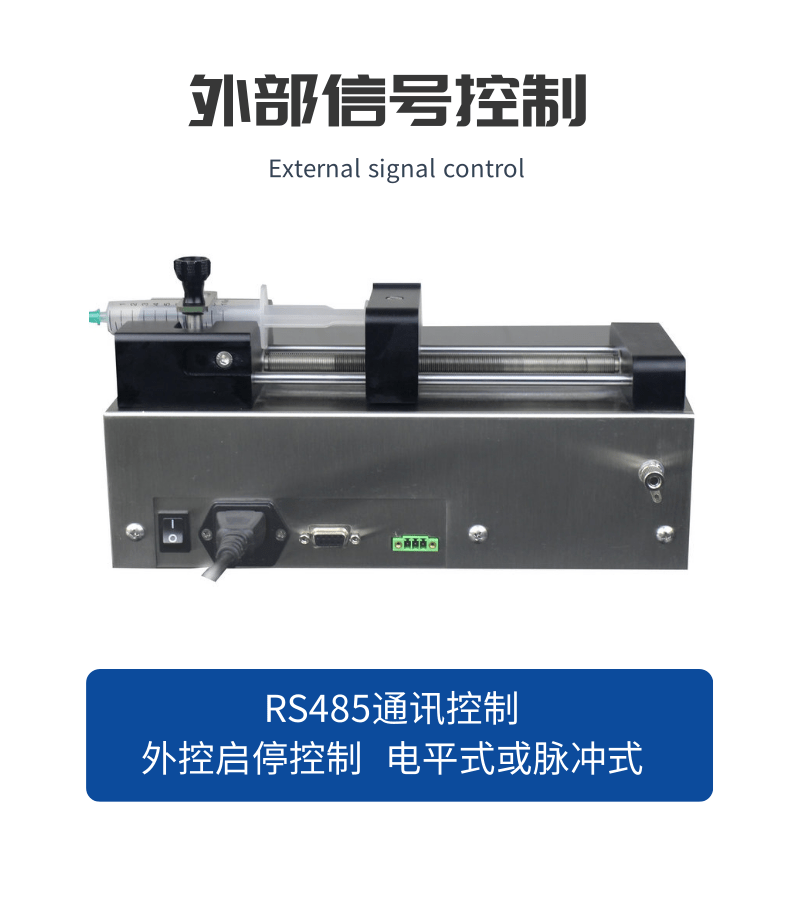

External signal control
Dimensions
Operation video
