TS-2A+N*L0107 Multi-channel independent control split injection pump
-
- Commodity name: TS-2A+N*L0107 Multi-channel independent control split injection pump
Multi-channel perfusion/extraction type, independently controllable, suitable for autosamplers, where N is the number of actuators
Product Introduction
◆ The TS-2A+N*L0107 is a multi-channel infusion/withdrawal microliter syringe pump, suitable for high-precision micro-volume liquid infusion. N represents the number of actuators.
◆ Mainly used in the field of animal experiments, used in conjunction with a stereotaxic instrument and a micromanipulator.
◆ Four actuator units are independently controlled, setting different liquid volumes and flow rates without interference.
◆ 1-4 actuator units are selectable, and any actuator unit can be turned on or off at any time.
◆ Flow rate range: 0.764nl-1.325ml/min (per actuator unit)
◆ Small and compact, the controller and actuator units have a split structure.
◆ Able to accommodate syringes of different specifications.
◆ User-friendly human-machine interface: large-screen LCD display, digital rotary knob and membrane keypad are used together, making operation simple and quick.
◆ Five working modes: infusion mode, withdrawal mode, withdrawal-infusion mode, infusion-withdrawal mode, and continuous mode.
◆ Power-off memory function: automatically saves the setting parameters, and no re-setting is required after power-on.
◆ Using a 485 communication bus, it can be connected to a host computer for control via background software.
◆ External control interface: has input/output control functions.
◆ Liquid volume calibration function: a more accurate flow rate can be obtained through the calibration program.
Typical Applications
◆ Biological Laboratories
◆ Microliter liquid infusion.
Technical Parameters
Product Model TS-2A+N*L0107 Microliter Syringe Pump Operating Modes Infusion, Withdrawal, Withdrawal then Infusion, Infusion then Withdrawal, Continuous Flow Rate Range 0.764nl-1.325ml/min Number of Syringes that can be installed 1-4 Range of Syringes that can be installed 5ul-1000ul Maximum Stroke 70mm Stroke Resolution 0.156μm Linear Velocity Range 3.048 um/min-128.016mm/min (flow rate = linear velocity × cross-sectional area of syringe) Linear Velocity Adjustment Resolution 3μm/min Stroke Control Accuracy Error ≤ ±0.5% (when stroke ≥ 30% of maximum stroke) Rated Linear Thrust >20N Syringe Selection Built-in syringes from major manufacturers and models are available for selection. Syringe Customization The inner diameter of the syringe can be directly input. Flow Rate Calibration Obtain a more accurate liquid volume through the calibration program. Run Parameter Settings Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate, or linear velocity Power-off Memory After power-on, you can choose whether to continue working according to the state before power-off. Status Signal Output Two-channel OC gate signal output, used to indicate the start/stop and direction status. Control Signal Input Two start/stop control input terminals, one falling edge trigger signal controls start/stop; one TTL level signal controls start/stop. Communication Interface RS485 Power Supply Used AC 90V-260V/40W Relative Humidity of Working Environment <80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe Specifications
Syringe Inner Diameter (mm)
Reference Flow Rate Range (nl/min-ul/min)
TS-2A+L0107-1B
TS-2A+2*L0107-1B
TS-2A+3*L0107-1B
TS-2A+4*L0107-1B
5ul
0.35
0.764-7.64
10μl
0.50
1.559-15.59
25μl
0.80
3.991-39.91
50μl
1.10
7.546-75.46
100μl
1.60
15.96-159.6
250μl
2.30
32.99-329.9
500μl
3.25
65.87-658.7
1000ul
4.61
132.5-1325

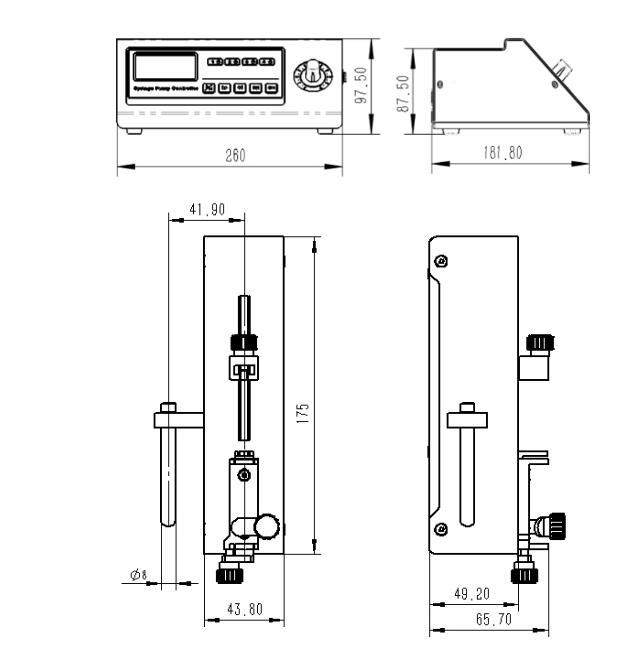

External dimensions
