LSP01-1C Continuous Infusion Pump
Category:
Tags:
- Product Description
LSP01-1C Continuous Infusion Pump
-
- Commodity name: LSP01-1C Continuous Infusion Pump
Bidirectional push-pull continuous injection pump, simultaneous aspiration and perfusion continuous operation, mainly used in biological laboratories.
Product Introduction
◆ The LSP01-1C micro-syringe pump is a bidirectional push-pull type syringe pump that operates continuously with simultaneous aspiration and injection, primarily used in biological laboratories.
◆ Capable of accommodating syringes (injectors) of various specifications, the LSP01-1C micro-syringe pump is suitable for high-precision, low-flow continuous liquid transfer.
◆ Flow Rate Range: 0.001ul/min-36.859ml/min.
◆ LSP01-1C Syringe Inner Diameter Input Function: You can select the syringe from the list or directly input the syringe inner diameter.
◆ The micro-syringe pump has a user-friendly interface: large-screen LCD display, digital knob and film buttons work together for easy and quick operation.
◆ 4 Operation Modes: Infusion Mode, Aspiration Mode, Aspiration-Infusion Mode, Continuous Mode.
◆ Power-Off Memory Function: Saves the setting parameters, so there is no need to reset after power-on.
◆ Clogging Protection Function: If the injection pump's propulsion mechanism is clogged during operation, the pump will stop the propulsion mechanism's operation and issue a buzzer alarm.
◆ Using a 485 communication bus, it can be connected to a host computer and controlled through background software.
◆ External Control Interface: Has input/output control functions.
◆ Liquid Volume Calibration Function: A more accurate flow rate can be obtained through the calibration procedure.
◆ Syringe Protection Function: By adjusting the position of the limit block, syringe damage can be prevented.
Typical Applications
◆ Biological Laboratories
◆ Low-flow, high-precision continuous liquid transfer
Operation Panel

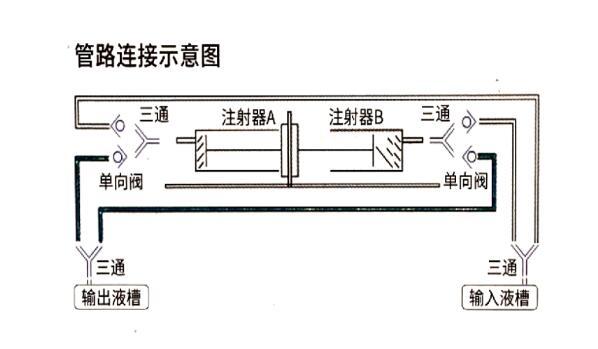

Continuous Liquid Supply Principle
Technical Parameters
Product Model LSP01-1C Micro-syringe Pump Operating Modes Infusion, Aspiration, Aspiration then Infusion, Infusion then Aspiration, Continuous Flow Rate Range 0.001ul/min-36.859ml/min Number of Syringes That Can Be Installed 1 Stroke Distance 140mm Stroke Resolution 0.156μm Linear Velocity Range 5μm/min-65mm/min (Flow Rate = Linear Velocity × Syringe Cross-sectional Area) Linear Velocity Adjustment Resolution 5μm/min Stroke Control Accuracy Error ≤ ±0.5% (When stroke ≥ 30% of stroke distance) Rated Linear Thrust >250N Syringe Selection Built-in selection of syringes from major manufacturers and models Syringe Customization Syringe inner diameter can be entered directly Flow Rate Calibration Obtain a more precise liquid volume through the calibration procedure Operating Parameter Settings Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate, or linear velocity Power-Off Memory After power-on, you can choose whether to continue working according to the pre-power-off status Status Signal Output 2-channel OC gate signal output, used to indicate start/stop and direction status Control Signal Input 2 start/stop control input terminals, 1 falling edge trigger signal controls start/stop; 1 TTL level signal controls start/stop Communication Interface RS485 Dimensions 280×210×140(mm) Weight 3.8kg Power Supply AC 90V-260V/15W Working Environment Relative Humidity <80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe (or Injector) Specifications
Applicable Syringe Inner Diameter (mm)
Reference Flow Rate Range (μl/min-ml/min)
LSP01-1C
10μl
0.50
0.001-0.0255
25μl
0.80
0.0025-0.0653
50μl
1.10
0.0048-0.1235
100μl
1.60
0.0101-0.2614
250μl
2.30
0.0208-0.5401
500μl
3.25
0.0415-1.0784
1ml
4.72
0.0875-2.2747
2ml
9.00
0.3181-8.2702
5ml
13.10
0.6739-17.522
10ml
16.60
1.0821-28.135
20ml
19.00
1.4176-36.859

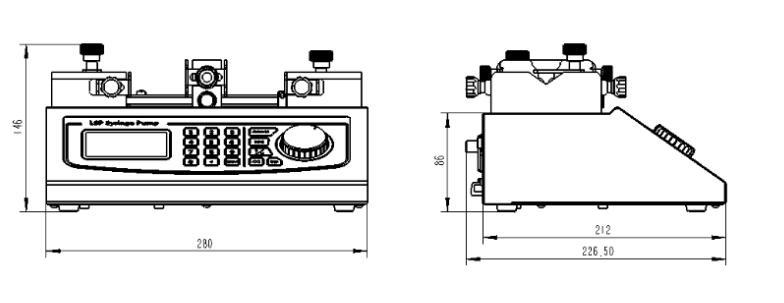

Dimensions
