LSP01-1BH high-pressure injection pump
-
- Commodity name: LSP01-1BH high-pressure injection pump
Single-channel perfusion/aspiration high-pressure injection pump, suitable for high-precision transmission of high-viscosity, high-pressure liquids.
Product Introduction
◆ The LSP01-1BH laboratory syringe pump is a single-channel perfusion/aspiration high-pressure syringe pump, suitable for high-precision transfer of high-viscosity, high-pressure liquids.
◆ It can accommodate syringes and stainless steel syringes of different specifications.
◆ Flow rate range: 0.001ul/min-197.669ml/min.
◆ LSP01-1BH syringe inner diameter input function: You can select the syringe from the list or directly input the syringe inner diameter.
◆ The micro-syringe pump has a user-friendly human-machine interface: large-screen LCD display, digital rotary knob and film keypad are used together, making operation simple and quick.
◆ 5 working modes: perfusion mode, aspiration mode, aspiration-then-perfusion mode, perfusion-then-aspiration mode, continuous mode.
◆ Power-off memory function: Saves the setting parameters, and no need to reset after power-on.
◆ Clogging protection function: When the injection pump's propulsion mechanism is blocked during operation, the injection pump will stop the propulsion mechanism and issue a buzzer alarm.
◆ Using a 485 communication bus, it can be connected to a host computer for control via background software.
◆ External control interface: Has input/output control functions.
◆ Liquid volume calibration function: A more precise flow rate can be obtained through the calibration procedure.
◆ Syringe protection function: By adjusting the position of the limit block, syringe damage can be prevented.
Typical Applications
◆ Biological Laboratories
◆ High-pressure, high-viscosity liquid transfer
Control Panel
Technical Parameters
Product Model LSP01-1BH Microsyringe Pump Working Modes Perfusion, Aspiration, Aspiration-then-perfusion, Perfusion-then-aspiration, Continuous Flow Rate Range 0.001ul/min-197.669ml/min Number of Syringes That Can Be Installed 1 Travel Distance 140mm Travel Resolution 0.156μm Linear Velocity Range 5μm/min-65mm/min (Flow rate = Linear velocity × Syringe cross-sectional area) Linear Velocity Adjustment Resolution 5μm/min Travel Control Accuracy Error ≤ ±0.5% (when travel ≥ 30% of travel distance) Rated Linear Thrust ＞600N Syringe Selection Built-in major manufacturers and major model syringes for selection Syringe Customization Syringe inner diameter can be input directly Flow Rate Calibration Obtain a more accurate liquid volume through the calibration procedure Run Parameter Settings Dispensing volume, injection time, etc. Display Parameter Selection Volume, flow rate or linear velocity Power-off Memory You can choose whether to continue working according to the pre-power-off state after power-on Status Signal Output 2-channel OC gate signal output, used to indicate start/stop and direction status Control Signal Input 2-channel start/stop control input terminals, 1-channel falling edge trigger signal controls start/stop; 1-channel TTL level signal controls start/stop Communication Interface RS485 Dimensions 280×250×140(mm) Weight 6.3kg Power Supply AC 90V-260V/25W Working Environment Relative Humidity ＜80% Working Environment Temperature 0℃-40℃ Selection Guide
Syringe Pump Model
Applicable Syringe (or Injector) Specifications
Applicable Syringe Inner Diameter (mm)
Reference Flow Rate Range (μl/min-ml/min)
Maximum Outlet Pressure (MPa)
LSP01-1BH
Injector
10μl
0.50
0.001-0.0255
One
25μl
0.80
0.0025-0.0653
One 50μl
1.10
0.0048-0.1235
One 100μl
1.60
0.0101-0.2614
One 250μl
2.30
0.0208-0.5401
One 500μl
3.25
0.0415-1.0784
One Plastic Syringe
1ml
4.72
0.0875-2.2747
One 2ml
9.00
0.3181-8.2702
One 5ml
13.10
0.6739-17.522
One 10ml
16.60
1.0821-28.135
One 20ml
19.00
1.4176-36.859
One 30ml
23.00
2.0774-54.012
One 60ml
29.14
3.3346-86.699
One Stainless Steel Syringe
6ml
9.4
0.3470-9.0217
9.55
20ml
19.05
1.4251-37.053
2.11
50ml
28.6
3.2121-83.5152
0.75
100ml
34.9
4.7831-124.361
0.49
200ml
44
7.6026-197.669
0.35

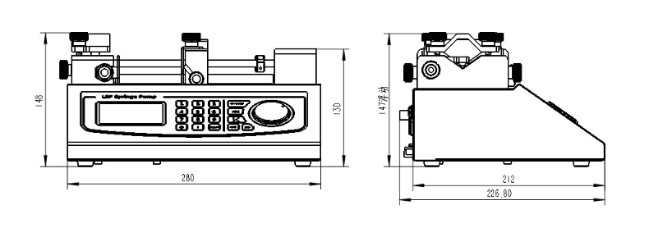

Dimensions
