LP01, LP02

Single-channel and dual-channel perfusion/aspiration micropumps, suitable for high-precision micro-volume liquid perfusion

Category:

Tags:

LP01, LP02

Single-channel and dual-channel perfusion/aspiration micropumps, suitable for high-precision micro-volume liquid perfusion

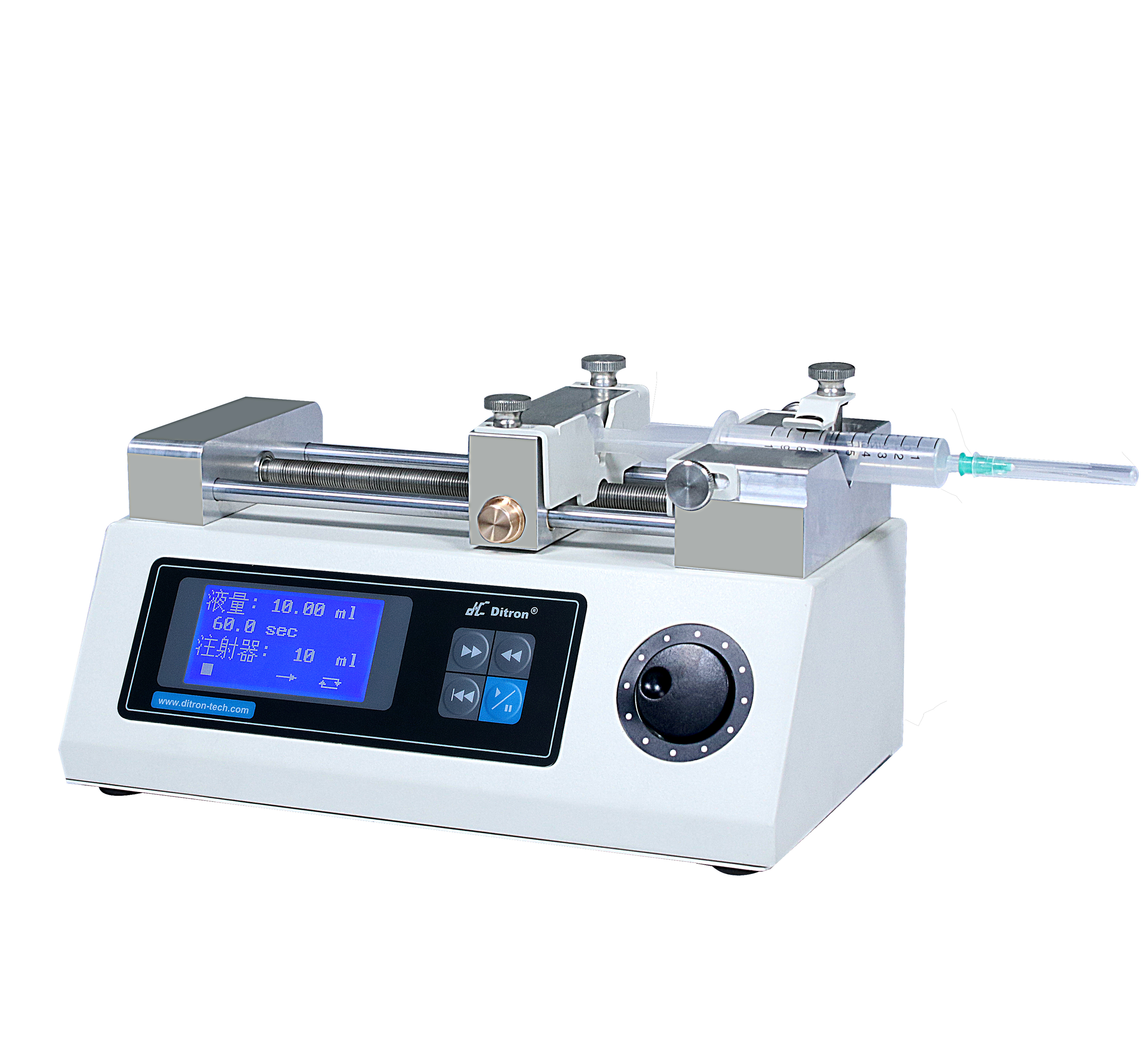

◆ LP01 is a single-channel infusion/aspiration micrometer syringe pump.

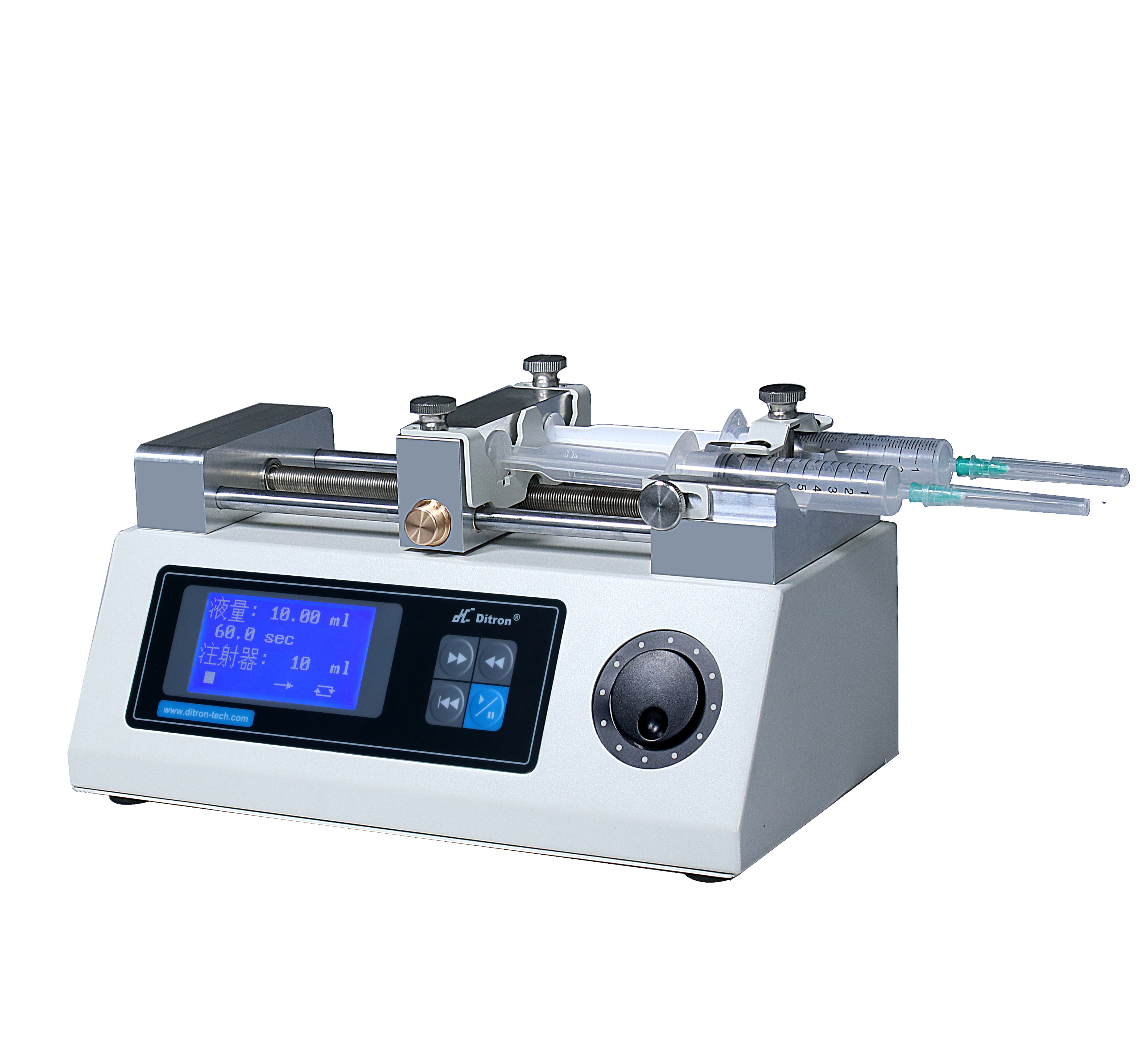

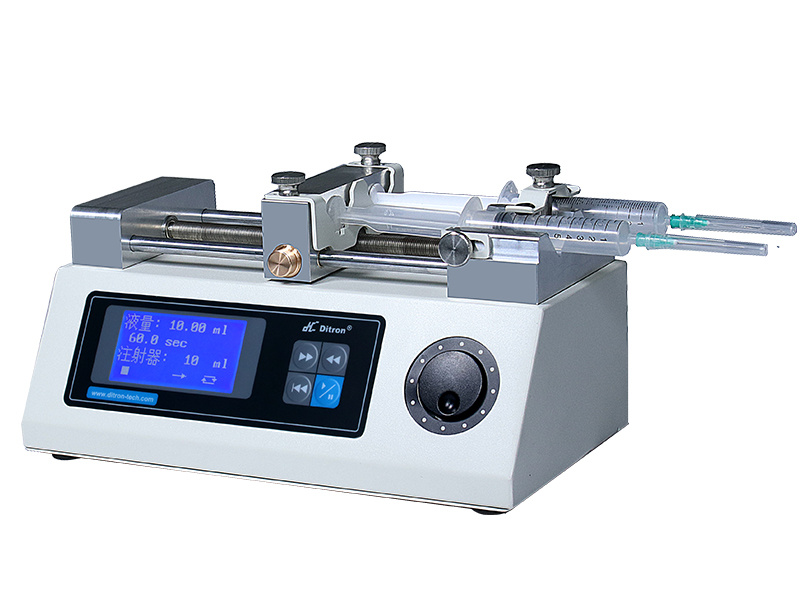

LP02 is a dual-channel infusion/aspiration micrometer syringe pump.

Suitable for micro-high precision liquid filling

◆ Mainly used in laboratory fields, micro-liquid filling applications

◆ Flow range: LP01 ( 0.764nl-88.25ml/min ), LP02 (0.764nl-52.95ml/min).

◆ User-friendly interface: Large LCD screen, digital knob and film buttons work together, operation is simple and fast.

◆ 5 working modes: Infusion mode, Aspiration mode, Aspiration infusion mode, Infusion aspiration mode, Continuous mode.

◆ Power-off memory function: No need to reset after power-on.

◆ Using 485 communication bus, it can be connected to the host computer and controlled through the background software.

◆ External control interface: Has input/output control functions.

◆ Liquid volume calibration function: A more accurate flow rate can be obtained through the calibration procedure.

◆ Biological Laboratory

◆ Micro-liquid filling

Product Model	LP01	LP02
Product Image
Working Mode	Infusion, Aspiration, Aspiration then Infusion, Infusion then Aspiration, Continuous
Syringe Installation	1	2
Flow Range	0.764nl-88.25ml/min	0.764nl-52.95ml/min
Syringe Specifications	10ul-100ml	10ul-60ml
Stroke Distance	140mm
Stroke Resolution	0.156 μm
Linear Velocity Range	7.94 um/min-79.4mm/min ( Flow Rate = Linear Velocity × Syringe Inner Cross-sectional Area )
Linear Velocity Adjustment Resolution	5 μm/min
Stroke Control Accuracy	Error ≤±0.5% ( Stroke ≥ Maximum stroke 30% time )
Rated Linear Thrust	＞ 180N
Syringe Selection	Built-in major manufacturers, main model syringes for selection
Syringe Customization	Syringe inner diameter can be input directly
Flow Rate Calibration	Obtain a more accurate liquid volume through the calibration procedure
Running Parameter Setting	Dispensing volume, injection time, etc.
Display Parameter Selection	Volume, flow rate, or linear velocity
Power-off Memory	After power-on, you can choose whether to continue working according to the status before power-off
Status Signal Output	2 Road OC Gate signal output, used to indicate the start / Stop and direction status
Control Signal Input	2 Road start/stop control input terminal, 1 The falling edge signal controls the start and stop; 1 Road TTL Level signal control start/stop
Communication Interface	RS485
External Dimensions	265×154×144(mm)
Weight	3kg
Power Supply	AC 90V-260V/30W
Working Environment Relative Humidity	＜ 80%
Working Environment Temperature	0℃-40℃

Syringe Pump Model	Applicable Sampler Specifications	Sampler Inner Diameter (mm)	Reference Flow Range (nl/min-μl/min)
LP01 LP02	5μl	0.35	0.764-7.64
	10μl	0.50	1.559-15.59
	25μl	0.80	3.991-39.91
	50μl	1.10	7.546-75.46
	100 μl	1.60	15.96-159.6
	250 μl	2.30	32.99-329.9
	500 μl	3.25	65.87-658.7
	1000 μl	4.61	132.5-1325
	Applicable Syringe Specifications	Syringe Inner Diameter (mm)	Reference Flow Rate Range (μl/min-ml/min)
	1ml	4.72	0.139-1.390
	2ml	9.00	0.505-5.050
	5ml	13.10	1.070-10.70
	10ml	16.60	1.718-17.18
	20ml	19.00	2.251-22.51
	30ml	23.00	3.298-32.98
	60ml	29.14	5.295-52.95
