BT300-1F
Category:
Tags:
- Product Description
BT300-1F
-
- Commodity name: BT300-1F
Flow range: 0.07-1300mL/min, optimal filling volume: 1-100mL, with flow calibration and filling volume calibration functions
Product Introduction
◆ Flow range: 0.07-1300mL/min
◆ Optimal filling volume: 1-100mL
◆ Various pump heads are optional: YZ series, DMD15
◆ With flow correction and dispensing volume correction functions◆ Dispensing accuracy can reach ±0.4%
Typical Applications
◆ Laboratory, Filling
◆ Reagent dispensing, media dispensing
Control Panel

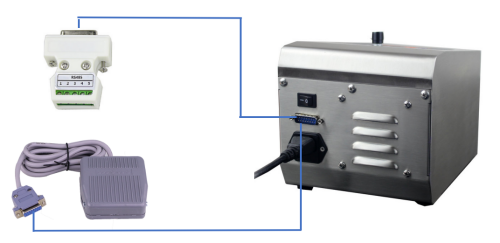

External Signal Control
Technical Parameters
Product Model BT300-1F Speed Adjustment Range 1-300RPM Speed Resolution 1RPM Dispensing Function Precise quantitative dispensing of liquids Dispensing Volume Range 0.1mL-999L Number of Dispensing 1-9999 times (“0” for infinite loop) Dispensing Time Interval 0.1S-24Hr Display Function 128×32 graphic dot matrix LCD display, flow rate and speed displayed simultaneously Direction Control Reversible rotation function Operating Method Rotary encoder switch with film keypad operation, more convenient for users Full Speed Function Fast filling and emptying of the pipeline can be achieved through the full speed button Power-off Memory Function Continue operation after power-on according to the status before power-off Back Suction Function When running in distribution mode, the pump reverses for a certain angle after shutdown to effectively prevent liquid dripping Flow Calibration Function Automatic flow calibration function, flow accuracy can reach ±0.5% Dispensing Volume Calibration Function Input the actual dispensing volume value to automatically calibrate the dispensing volume, and the dispensing accuracy can reach ±0.5% External Control Function Optional different types of external control modules for start/stop control, direction control, and flow control,
4 optional external control modules: 0-5V, 0-10V, 4-20mA, 0-10KHz
Communication Function Optional communication module for RS485 communication control (using the general Modbus protocol) Foot Switch Function Optional foot switch for start/stop control Dispensing Bracket Optional filling bracket for installing filling nozzle Dispensing Nozzle Various specifications of filling nozzles are optional, nozzle inner diameter 2.2mm, 2.5mm, 3mm, 4mm, 6mm Power Consumption 50W Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz Working Environment 0-40℃, humidity <80%, no condensation Driver Weight 4.8KG Protection Level IP31 Selection Guide
Filling Volume
Filling Time (Sec)
Filling Accuracy
Recommended Driver
Recommended Pump Head
Recommended Tubing
10 mL
≥0.80
±1.0%
BT300-1F
YZ15
25#
20 mL
≥1.57
±0.8%
25#
30 mL
≥2.39
±0.5%
25#
50 mL
≥2.70
±0.5%
BT600-1F
YZ15
25#
100mL
≥3.25
±0.4%
17#
Driver
Applicable Pump Head
Number of Pump Head Rollers
Optional Number of Pump Heads
Tubing
Speed Range (RPM)
Flow Range (mL/min)
BT300-1F
YZ15
3
1,2
13#
1-300
0.08-23
14#
0.27-88.6
19#
0.52-165.3
16#
0.86-270.9
25#
1.8-558.3
17#
3.2-968
18#
4.1-1343
YZ25
3
1,2
15#
1-300
1.7-530
24#
2.9-871

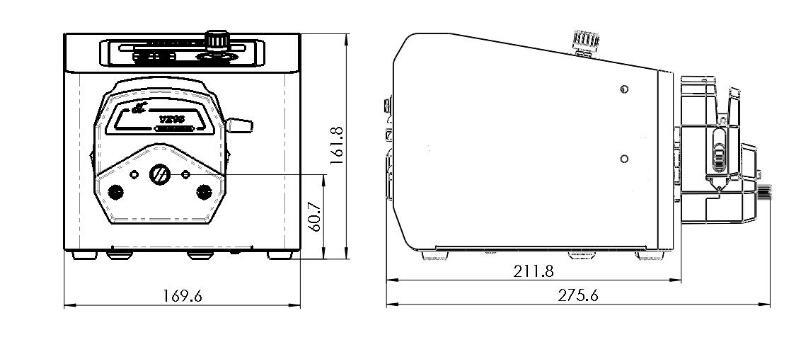

External dimensions
